Inserting a microSD/SIM card

Inserting a microSD card

• Zenith55 has the possibility to insert a microSD card to store raw data in addition to the internal memory.



Removing the microSD card while the instrument is turned on can cause loss of data. Only insert or remove the microSD card or unplug connecting cables when the instrument is switched off.

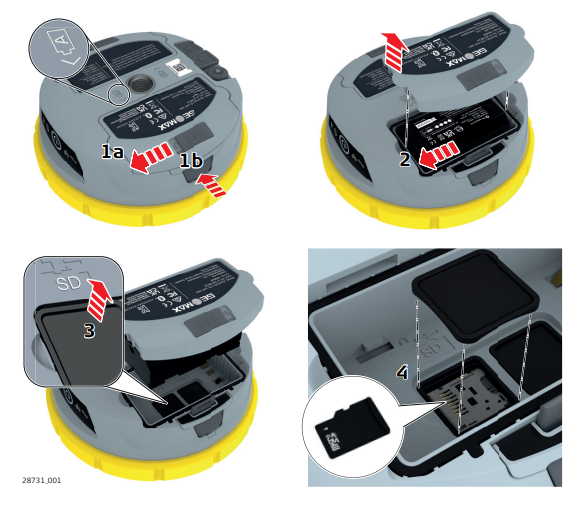

The microSD card is inserted into a slot inside battery compartment.

1. Open battery compartment A.

2. Remove the battery.

3. Remove the cover marked with SD.

4. Insert the microSD card with the logo facing upwards and lock it into position.

Inserting a SIM card

• A SIM card can be inserted in the receiver to receive RTK corrections using internet, instead of using internet from field controller.



Inserting/removing the SIM card while the Zenith55 is turned on can result in permanent damage to the card. Only insert/remove the SIM card when the Zenith55 is switched off.

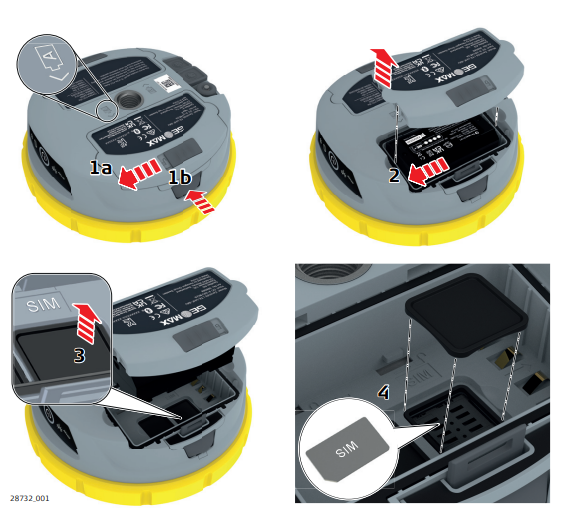

The SIM card is inserted into a slot inside battery compartment A.

1. Open battery compartment A.

2. Remove the battery.

3. Remove the cover marked with SIM.

4. Insert the SIM card with the connectors facing downwards and lock it into position.
