LED indicators

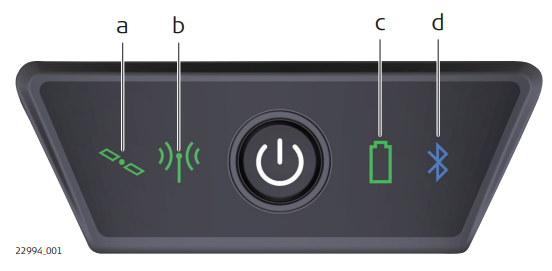

  • Zenith60 has LED indicators. They indicate the basic instrument status.


    1. Position LED

    2. RTK LED

    3. Power LED

    4. Bluetooth LED


  • Position LED:

    • Off: no satellites are tracked.

    • Flashing yellow: fewer than four satellites are tracked. A position is not yet available.

    • Yellow: a navigated position is available.

    • Flashing green: a code-only position is available.

    • Green: a fixed RTK position is available.

  • RTK LED:

    • Off: the device is not configured to receive or send out the RTK data or device is in static mode.

    • Green: Zenith60 is in rover mode. No RTK data is being received at the interface of the communication device.

    • Flashing green: Zenith60 is in rover mode. RTK data is being received at the interface of the communication device.

    • Yellow: Zenith60 is in RTK base mode. No RTK data is being passed to the interface of the communication device.

    • Flashing yellow: Zenith60 is in RTK base mode. RTK data is being passed to the interface of the communication device.

  • Power LED:

    • Off: the batteries are not connected, are both flat or the Zenith60 is switched off.

    • Green: total power is 20% - 100%.

    • Red: total power is 5% - 20%. The remaining time for which enough power is available depends on the type of survey, the temperature and the age of the batteries.

    • Fast flashing red: Total power is low (< 5%).

  • Bluetooth LED:

    • Off: bluetooth is not connected.

    • Blue: bluetooth is connected.

  • All LED:

    • Flashing sequentially: the factory reset is initiated.

  • If Bluetooth, RTK and Position LED are flashing and Power LED is solid green, means the recovery process is started (see User Manual for more information on the recovery process).
