Data import and export

• Fix points or code data can be imported and exported from the instrument by cable or by U disk.

• Supported format: CASS, GTS-7, CSV, GSI, HTF (only export).

Data transfer is recommended to be done using USB drive.

• The data transmission between instrument and removable device must have U Disk plugged in.

The machine supports up to 8G U disk read and write, when running the program, don’t insert or pull out the U disk. If you pull out the U disk when the instrument checking it, the subsequent operations may cause error!

Select the job

• The data is imported or exported from the selected job.

• To select a job click Manage.

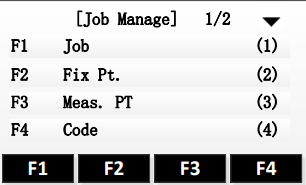

• Select F1-Job.

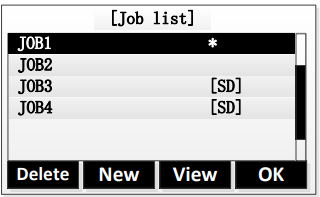

• The interface displays the job list in the current storage.



• Using the direction keys to select a job, when the needed job is selected, press the key of [F4], the program gives a prompt of “Job Set” and open the job as the current job.

Data import

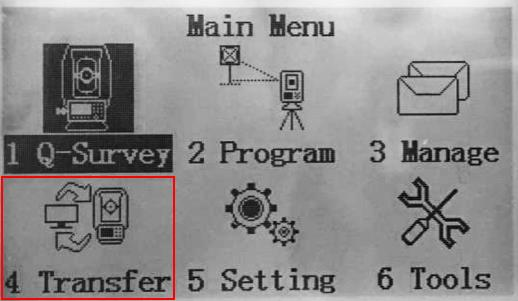

• From the main page, select 4.Transfer And insert your UDISK in the Zoom10.

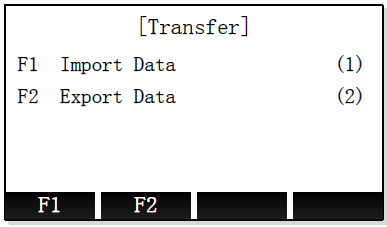

• Select F1-Import Data (1).

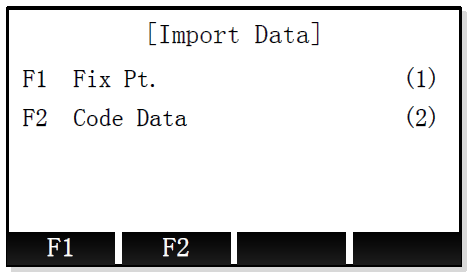

• Select the data to import.



  • Fix Pt: imports topographic points.

  • Code data: imports codes.

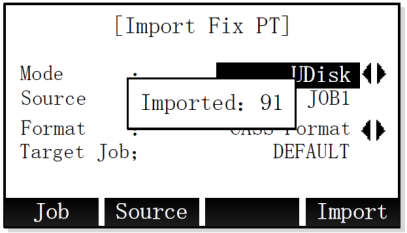

• Select the import mode and format.



  • Mode: import mode.

    • UDisk: data is imported from plugged in U disk.

    • RS232: data is imported from RS232 connection.

  • Source: the file to import. Press Source to select the file in the UDisk.

  • Format: the data format.

  • Target job: the target job. Press Job to select the job.

• To start the import process, press F4- Import.

Data export

• From the main page, select 4.Transfer And insert your UDISK in the Zoom10.



• Select F2-Export Data (1).

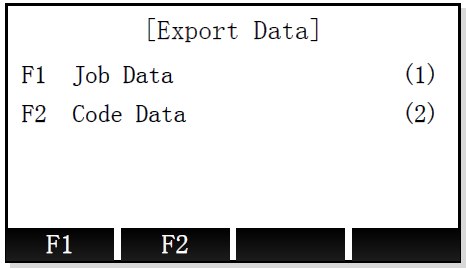

• Select the data to export.



  • Job data: exports topographic points and measure data.

  • Code data: exports codes.

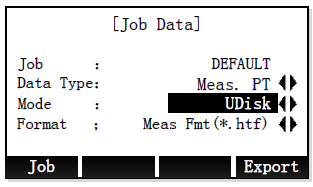

• Select the export parameters.



  • Job: the job from where to export the data. Click Job to select the job.

  • Data type: the data to export.

    • Meas PT: the measured points.

    • Fix PT: the fix points.

    • Code: the codes.

  • Mode: export mode.

    • UDisk: data is exported to U disk.

    • RS232: data is exported with RS232 connection.

  • Format: the data export format.

• Press F4-Export to start the export process.

• Meas. Pt. can be exported in: GSI, CSV, GTS-7, CASS or HTF

• Fix. Pt. can be exported in: CSV, GTS-7 & CASS

• The HTF format can be imported, in X-PAD Fusion, as a Zoom10 instrument format file.
