Settings

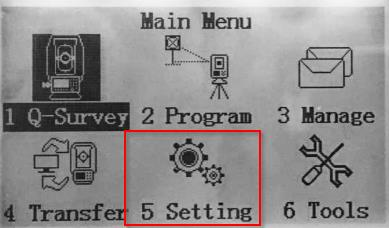

From the Main menu, select Settings to modify your work settings.

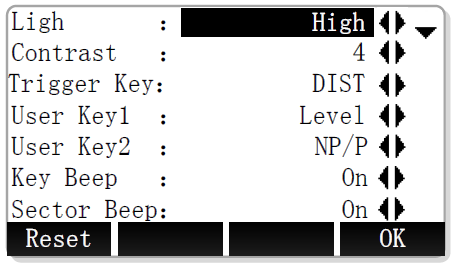

Select General for the general settings of your instrument.

To navigate through the 4 General setting pages, you can use the page button

• Light: level of background light.

• Contrast: display contrast.

• Trigger key: allows to assign an action of the measure button , from the following:
  • Measure distance and save (ALL)
  • Measure distance (DIST)
  • None (OFF)

• User key: allows to assign an action for the 2 User Keys: , from the following:
  • Level (laser plummet and e-bubble),
  • Offset,
  • NP/P (prism/non-prism mode)
  • Ht. Transfer,
  • Hidden Point,
  • Free Coding,
  • Laser (visible red laser beam),
  • Light (screen illumination light),
  • Unit Setting,
  • Main Setting,
  • EDM tracking (EDM tracking mode)

• Key beep: the beep is a acoustic signal after each key stroke.

• Sector beep: enables sector beep sounds at right angles (0°, 90°, 180°, 270°).

• Tilt: enables or disables the compensation.

• Hz increment: sets the horizontal angle direction.

• V-setting: sets the vertical angle.

  • Zenith: zenith = 0°; horizon = 90°.

  • Horiz.0: zenith = 270°; horizon = 0°.

  • Zenith: zenith = 90°; horizon = 0°. Positive above horizon, negative below horizon.

  • Slope: Zenith 45°=100%; Horizon = 0%. Positive above horizon, negative below horizon.

• Angle unit: sets the units for angles.

• Min reading: sets the number of decimal places for angles.

• Dist. unit: sets the units for distances and coordinates.

• Dist. decimal: sets the number of decimal places for distances and coordinates.

• Temp. unit: sets the units shown for temperatures.

• Press. unit: sets the units shown for all pressure fields.

• Code: sets if the code will be used for one or more measurements.

  • Rec/Reset: the code is cleared after ALL or REC.

  • Permanent: the code remains after measurements.

• Auto-off: sets the instrument automatic shut-down.

• Port: sets the communication port.

• Baudrate: sets the serial port baudrate.

• Coord type: sets the type of coordinate NEZ or ENZ.

• Language: changes the interface language.
