Instrument components and interface

Instrument components

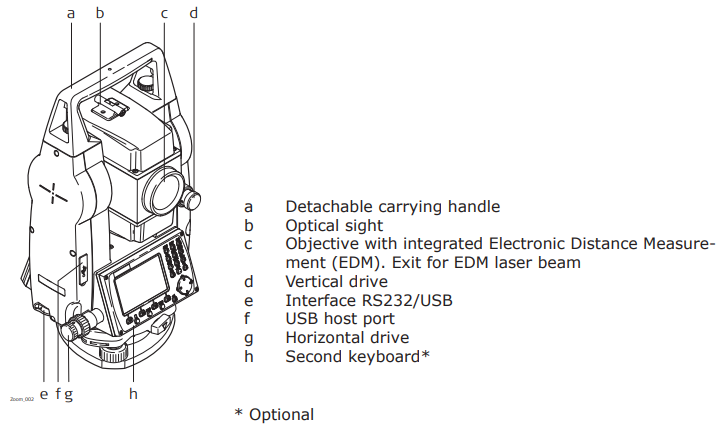

• Instrument components from instrument face II.

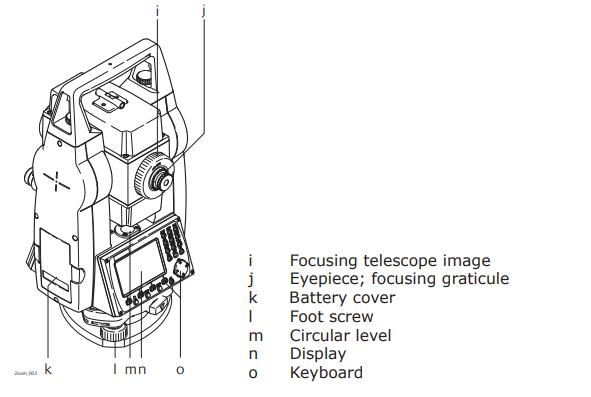

• Instrument components from instrument face I.



User interface

The keyboard layout may differ depending on the instrument model.

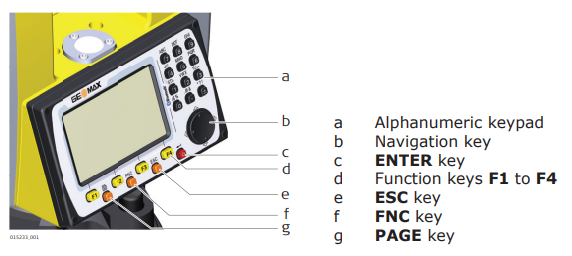

• Keyboard.



• Keys:

  • Page key : displays the next screen when several screens are available.

  • FNC key : quick-access to measurement supporting functions.

  • Navigation key: controls the focus bar within the screen and the entry bar within a field.

  • ENTER key: confirms an entry and continues to the next field.

  • ESC key: quits a screen or edit mode without saving changes. Returns to next higher level.

  • F1 to F4 function keys : function keys that are assigned the variable functions displayed at the bottom of the screen.

  • Alphanumeric keypad: for entry of text and numerical values.

• Screen:

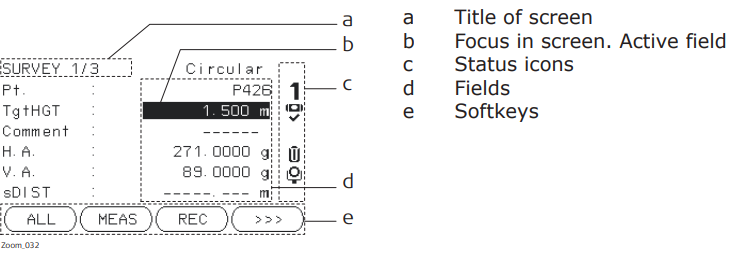

  • Black&White screen.

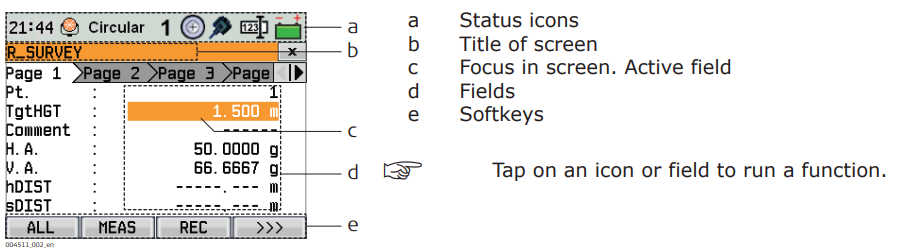

  • Color&Touch screen.
