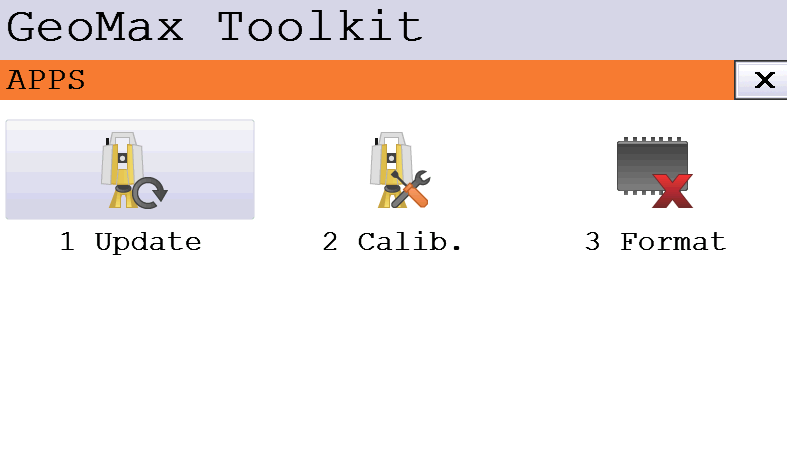

Apps

• The Apps page allows to update the firmware, calibrate the instrument and format the instrument.

• Click Apps.

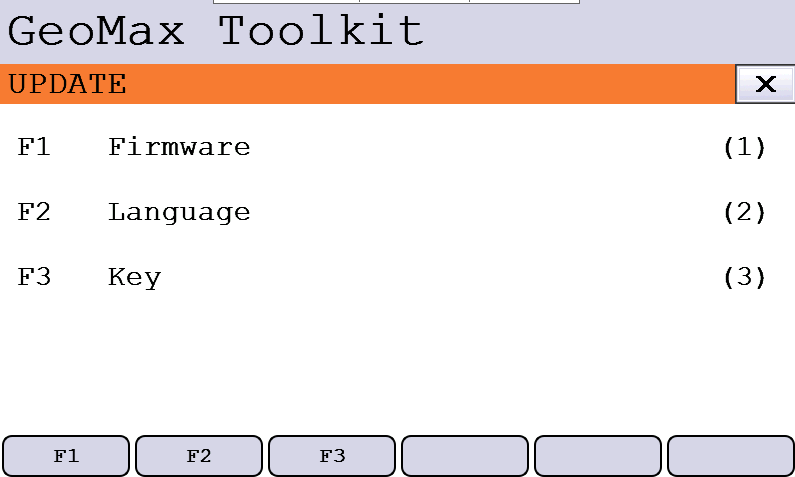

Update

• To update instrument firmware and language file.



  • Firmware: to upload a new instrument firmware.

  • Language: to upload a new language for GeoMax Toolkit application.

  • Key: to upload a new license key.

For more information on how to update a new firmware or language file refer to How to upgrade instrument firmware.

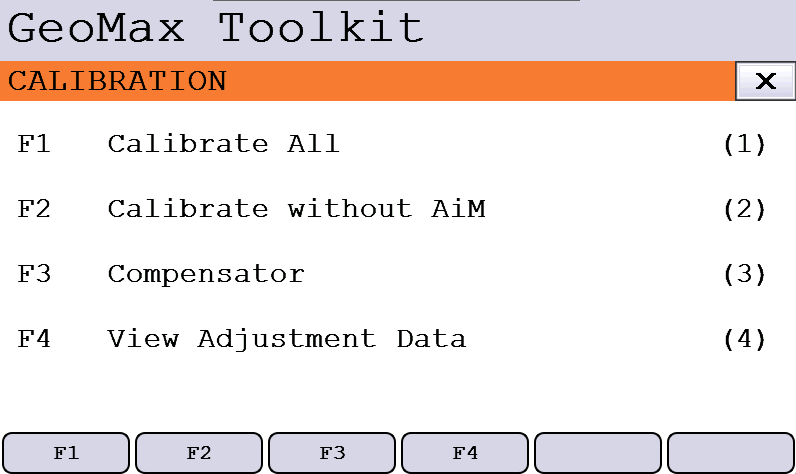

Calibration

• This application allows to perform an instrument field calibration.



  • Calibrate All: starts the procedure to calibrate all parameters (compensator longitudinal and transversal index errors, vertical index error, horizontal collimation error, AiM zero point error).

  • Calibrate without AiM: starts the procedure to calibrate all parameters excluding the AiM zero point error.

  • Compensator: starts the procedure to calibrate the compensator.

  • View adjustment Data: visualizes the adjustment data loaded in the instrument.

• Select one of the calibration procedure, and follow the on-screen instructions.

For more information about the field calibration please refer to the instrument user manual.

The report with the calibration adjustment data can be downloaded from X-PAD application when connected to the instrument.
