Instrument components and interface

Instrument components

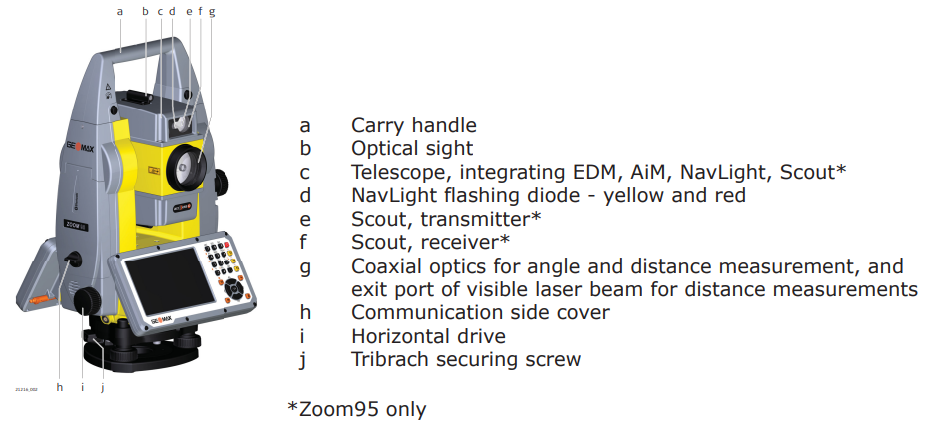

• Instrument components from instrument face II.

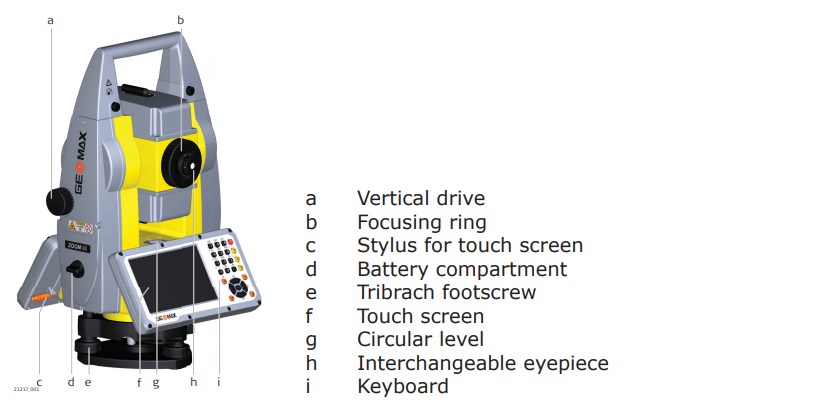

• Instrument components from instrument face I.



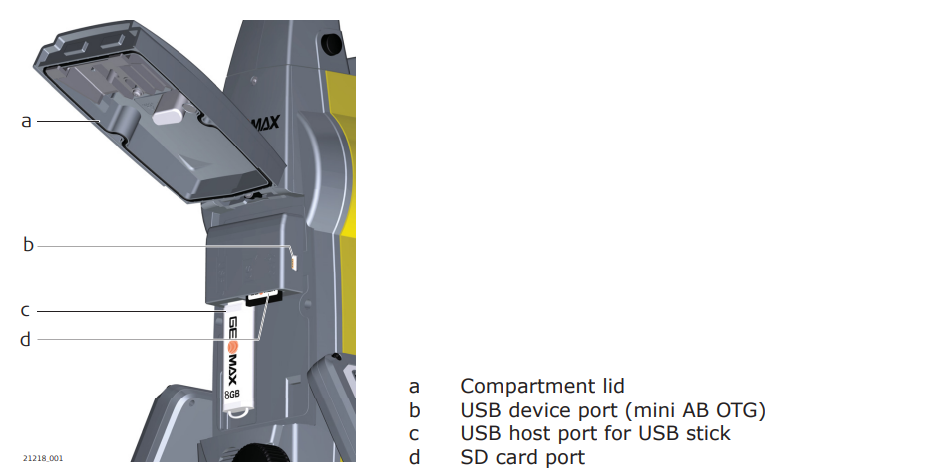

• Communication side cover.



If the side cover is not closed, instrument cannot rotate automatically.

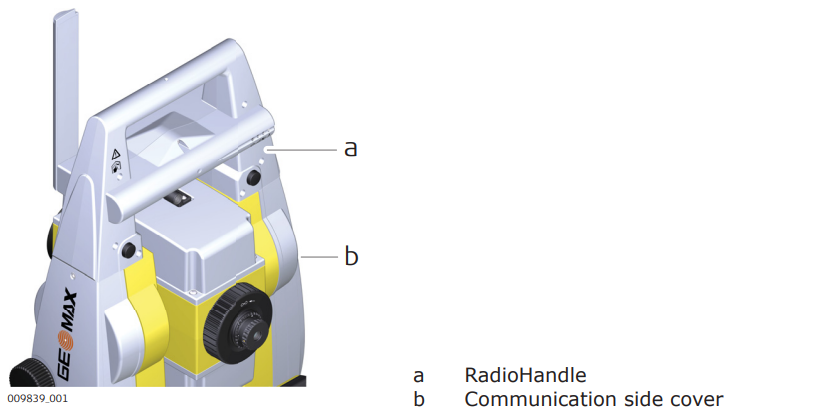

• Instrument components for robotic.



User interface

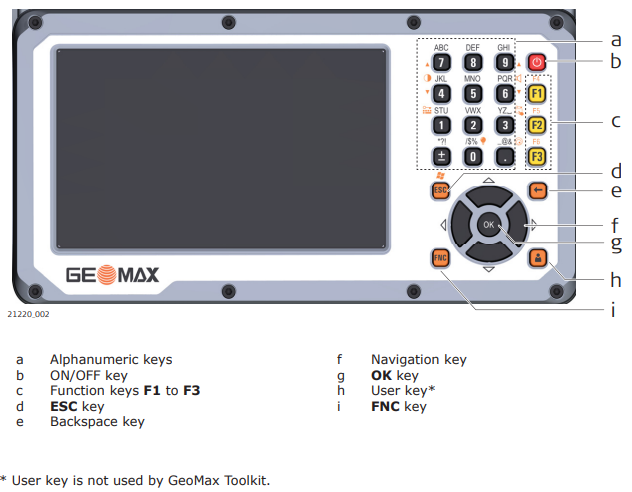

• Keyboard.



• Keys:

  • Function keys F1-F3 : correspond to six softkeys that appear on the bottom of the screen when the screen is activated.

  • Function keys F4-F6 + : correspond to six softkeys that appear on the bottom of the screen when the screen is activated.

  • Alphanumeric keys : alphanumeric keypad for entry of text and numerical values.

  • ON/OFF : if the instrument is already off, turns on the instrument when held for 2 s. If the instrument is already on, turns to Power Options menu when held for 2 s.

  • Esc : quits a screen or edit mode without saving changes. Returns to next higher level.

  • OK : selects the highlighted line and leads to the next logical menu/dialog. Starts the edit mode for editable fields. Opens a selectable list.

  • User : the user key is definable by 3rd-party software.

  • Backspace : deletes the last entered character.

  • FNC : used for key combinations. Switches between first and second level of any key on the keyboard.

  • Navigation key : controls the focus bar within the screen and the entry bar within a field. Moves the cursor.

• Second level functions:

  • + : F4.

  • + : F5.

  • + : F6.

  • + : hold FNC while pressing ESC. Switch to Windows.

  • + : hold FNC while pressing . . Open the level/bubble dialog.

  • + : hold FNC while pressing 0. Turn the keyboard illumination on/off.

  • + : hold FNC while pressing 1. Lock/unlock the keyboard.

  • + : hold FNC while pressing 3. Lock/unlock the touch screen.

  • + : hold FNC while pressing 4. Decrease the screen brightness.

  • + : hold FNC while pressing 7. Increase the screen brightness.

  • + : hold FNC while pressing 6. Decrease the volume for acoustic warning signals, beeps and keypresses on the instrument.

  • + : hold FNC while pressing 9. Increase the volume for acoustic warning signals, beeps and keypresses on the instrument.
