System components
Main components

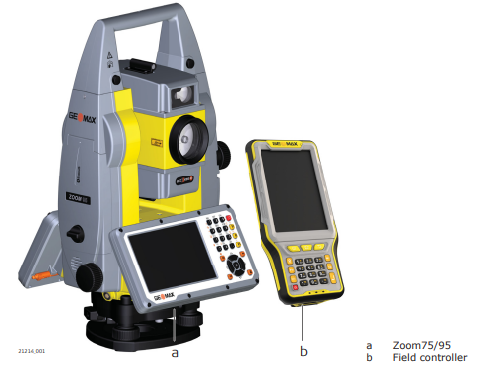

Main components of the Zoom75/95 system:
Zoom75/95 instrument: a total station for measuring, calculating and capturing data. Consisting of various models with a range of accuracy classes. Combined with the multipurpose field controller to conduct remote control surveys.
Field controller: a multipurpose field controller enabling the remote control of the instrument.
Available models
Model | Zoom75 | Zoom95 |
|---|---|---|
Angle measurement | ✅ | ✅ |
RS232, USB and SD card interface | ✅ | ✅ |
Bluetooth | ✅ | ✅ |
WLAN | ✅ | ✅ |
Internal Flash Memory (2 GB) | ✅ | ✅ |
Hotshoe interface for RadioHandle | ✅ | ✅ |
Navigation Light (NavLight) | ✅ | ✅ |
Distance measurement to prism | ✅ | ✅ |
Distance measurement to any surface (reflectorless) | ✅ | ✅ |
Motorised | ✅ | ✅ |
Optical Prism Search (Scout) |
| ✅ |
Prism Tracking (TRack) | ✅ | ✅ |
Automatic Prism Aiming (AiM) | ✅ | ✅ |
NavLight | ✅ | ✅ |
GNSS based Prism Search (requires GPS enabled field controller and field software) | ✅ | ✅ |
Instrument technology
NavLight: a NavLight fitted to an instrument assists with prism targeting. It consists of two differently coloured flashing lights located in the instrument telescope housing. The person holding the prism can align themselves into the line of sight of the instrument.
AiM: Automated Prism Aiming. AiM refers to the instrument sensor which enables the automatic prism aiming and locking.
TRack: instruments fitted with Target aiming are referred to as Automated. Target aiming refers to the instrument sensor which enables the continuous tracking of targets.
Scout: only available at Zoom95. Scout refers to the instrument sensor, which enables the automatic rapid finding of a prism
