Azimuth & Distances

Use the command Azimuth & Distance to create a point to the current survey subproject entering azimuth/bearing and distance from a reference point.

Click Draw.

Click click below Point to open drop down menu.

Click Azimuth & Distances.

This function opens a table on the right side of the window.

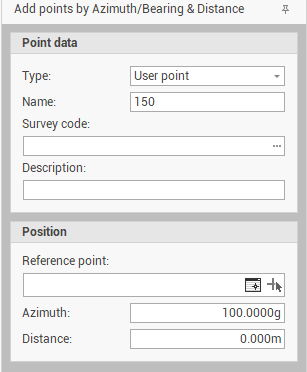

Enter the requested information to create the topographic point.

• Type: selects if point is a User point or a Reference point.

• Name: the name ID of the point.

• Survey code: selects the survey code to assign to the point from the list of Survey code assigned to the project.

• Description: the point description.

• Reference point: selects from point list or on the graphic view the reference point.

• Azimuth/Bearing: the azimuth/bearing from the reference point.

• Distance: the distance from the reference point.

Or click on the graphic view to create the point graphically.
