Convert block's reference to topographic points
Use the command From block’s reference to convert selected block’s reference to topographic points.
Attribute’s values can be used to extract the name, elevation and code of extracted points.
Click Draw.
Click click below Point to open drop down menu.
Click From block’s reference.
The function opens a panel on the right of the graphic view.

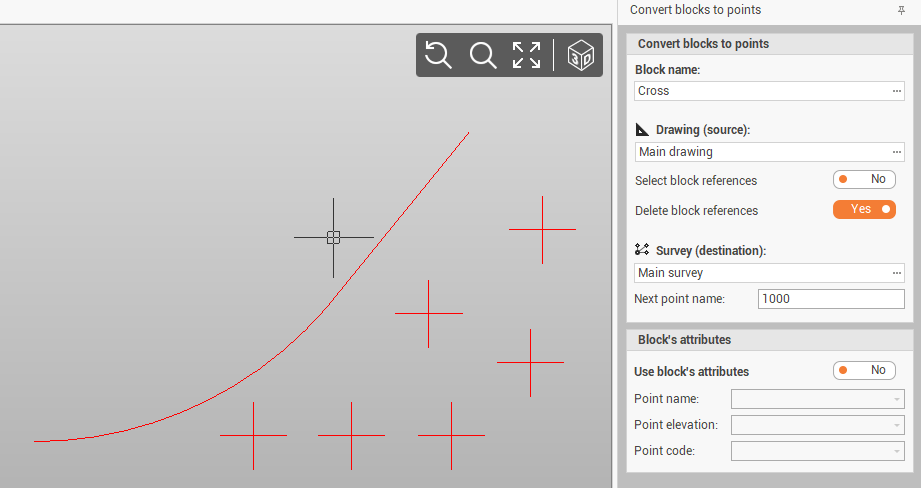

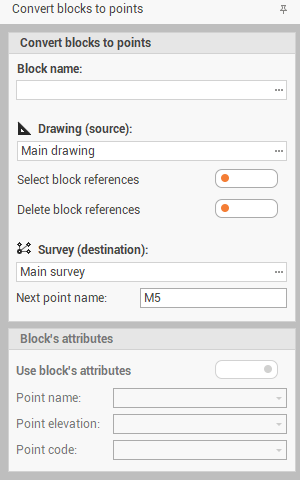

Select the options to convert the blocks:
Block name: selects the block from the list to convert to topographic points.
Drawing (source): selects the drawing sub-project where there are the blocks.
Select block references: if enabled, allows to select from the graphic view the blocks to select. If disabled, all blocks are selected.
Delete block references: if enabled, deletes the blocks when they are replaced by topographic points.
Survey (destination): selects the survey sub-project where the points will be created.
Next point name: selects the name ID of the first created point.
Block’s attribute: if enabled, block attributes can be used to extract point name, elevation and code.

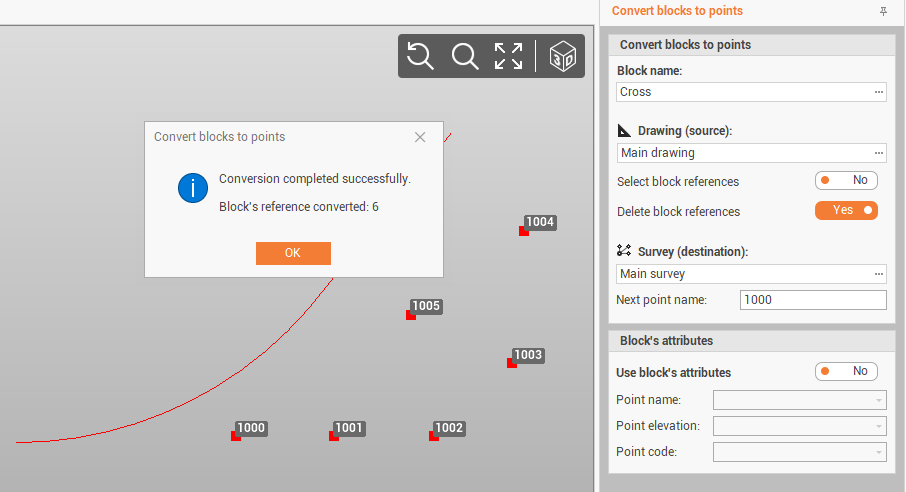

Click Apply to create the topographic points in the selected Survey subproject.
