Create a new Sections group

The creation of a group of sections is required to allow the program to store the sections and profiles.
You can create a subproject of Alignments & cross sections in the following ways:

• Click Alignments & x-sections.

• Click New Sections group.

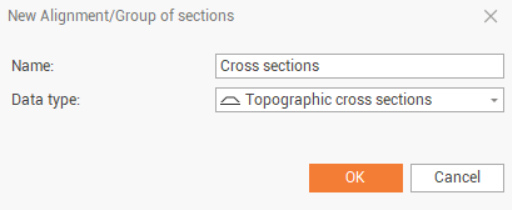

• This command opens a new window.



• Enter the sections group name.

• Select the type of cross sections:

  • Alignment: see Alignments .

  • Topographic cross sections: topographic cross sections are vertical cross sections along a direction and cut completely the model in vertical. Allows to create Topographic and Long profile sections.



  • Generic cross sections: cross sections that can cut the model on a vertical, horizontal or sloped plane. Allows to create Horizontal, Vertical and By 3 points sections.



• Click OK.

• The subproject that you create will become the active Alignments & cross sections.

• The subproject created will become the active subproject of category Alignments & cross sections.
