Curve direction

The Curve direction function allows to show/hide a symbol that indicates the direction of drawing entities.

  • Click View.

  • Click Curve direction to shows a symbol indicating the direction of drawing entities in CAD.

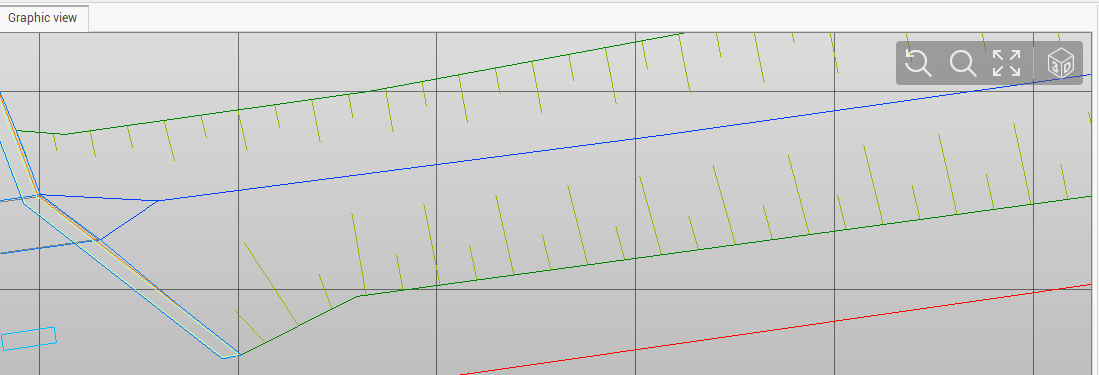

Curve direction disabled

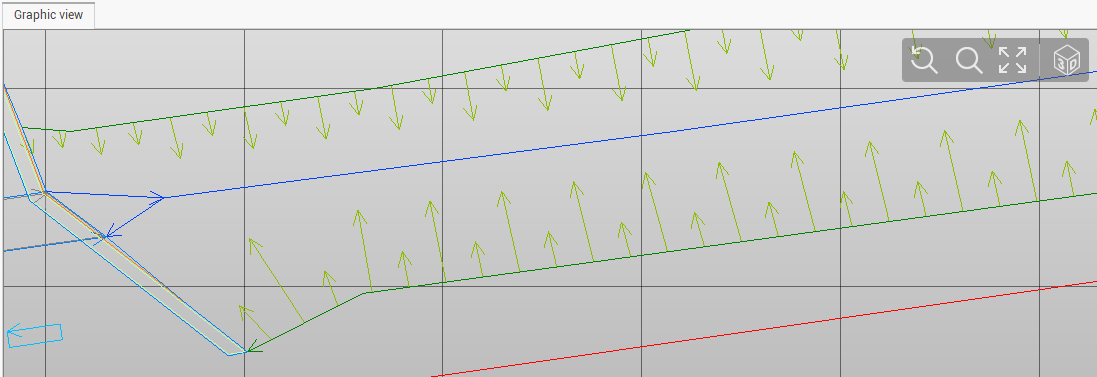

Curve direction enabled
