Cut surface

  • The tool Cut surface cuts the triangles of a surface along the selected polyline.

  • Click Design 3D.

  • Click Cut.


  • The function opens a panel on the right.


    • Reference surface: the reference surface from where delete the area.

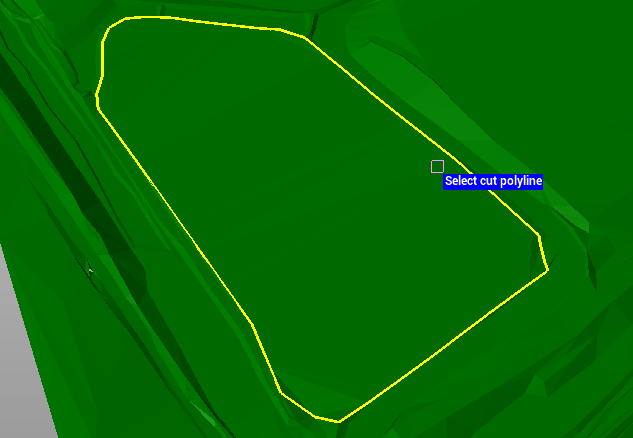

  • Select the polyline.

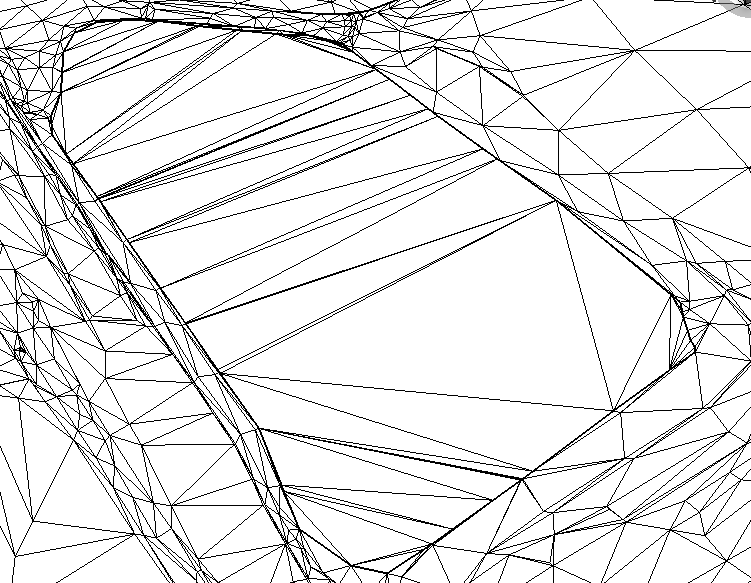

  • The surface is re-triangulated to have the triangles cut on the polyline.
