Delete area

  • The tool Delete area deletes the part of the surface that is internal to a selected polyline.

  • Click Design 3D.

  • Click Delete area.


  • The function opens a panel on the right.


    • Reference surface: the reference surface from where delete the area.

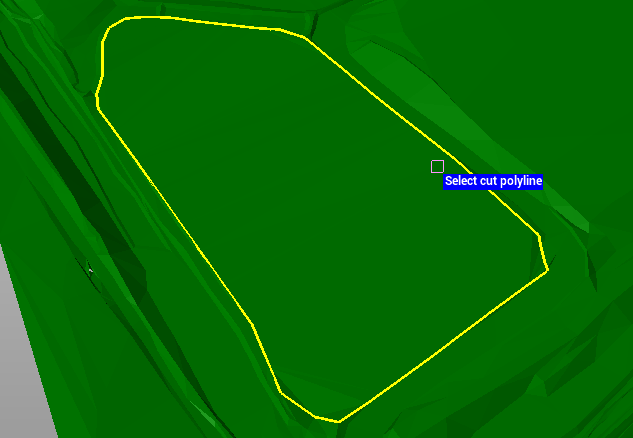

  • Select the polyline.


  • Specify if the delete area is internal or external.

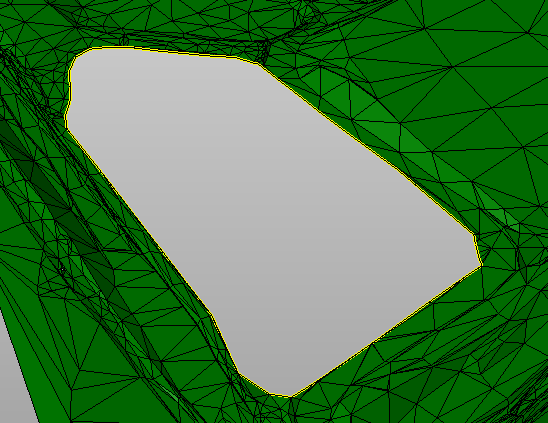

  • Confirm to delete the area.
