Installation
X-PAD Office Fusion is provided with Floating license model which can be installed and shared within a single network.
Different users working on different PCs within the same network can use these floating licenses.
Floating licenses can be installed or retrieved from current computer or from an external license server accessible via network.
To begin the installation of the software package download and start the setup program from the link below or download the software from the GeoMax partner area or X-PAD365.
Download Fusion setup from this link: Fusion setup
Click on installer to start the installation process and select preferred installation language.
The terms in the GeoMax Software License Agreement have to be accepted before the software can be installed.
Read the Software License Agreement, select “I accept…” and click on Next.
Select to install the software using the default folder or use a different destination folder

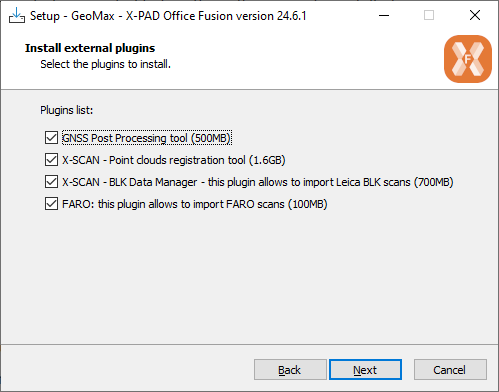

Select the plugin to install, depending on the software modules you want to use, and click on Next:
GNSS Post Processing: optional plugin needed if software is used to perform GNSS post processing calculations. GNSS post processing license required.
X-SCAN registration server: optional plugin needed if software is used to perform point cloud registrations. X-SCAN Next license required.
BLK data manager: optional plugin needed if software is used to download scanner data from laser scanners from BLK family.
Faro SDK: optional plugin needed if software is used to import point clouds from Faro laser scanner.
Click on Install to continue with the installation. The software will be installed.
After the installation of the software package has successfully been completed, select run application to automatically start the software when finishing the Installation or select Finish to exit the Installation process. A desktop icon will be created to easily start the software.
Select Next to activate the Entitlement ID
To activate the license you need an Entitlement ID. An Entitlement ID consists of the 25 alphanumeric characters separated by dashes, for example:
00100-12345-12345-12345-A123B

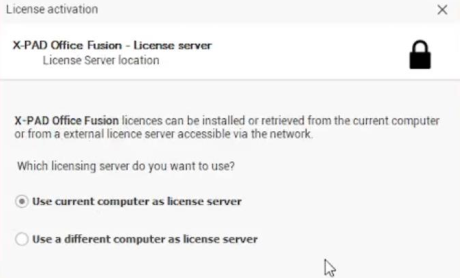

Floating licenses can be installed or retrieved from current computer or from an external license server accessible via network.
It is possible to choose which licensing server to use for license management:
