Layers

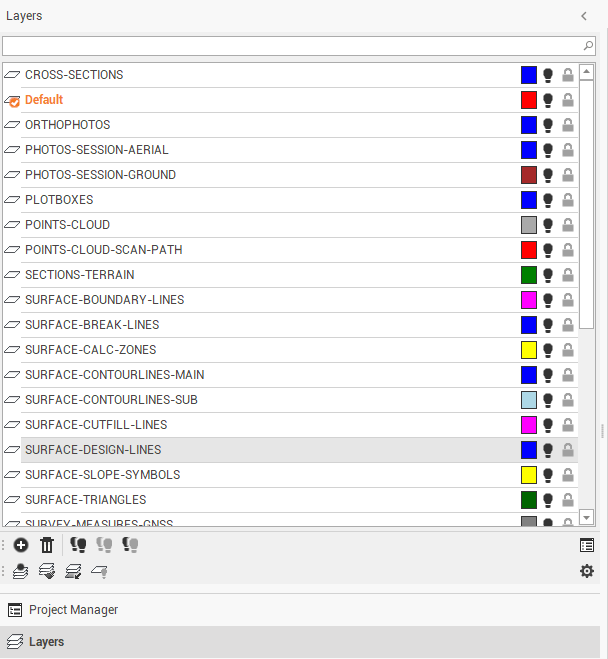

The management of the layers available in the project can be accessed from the left panel, clicking on Layers.

• Double click on a layer to make it the active layer.



• On the upper part of the panel is a search toolbar. It allows searching for a specific layer.

• The features of every layer can be modified on the property panel that is activated by a right click.

• Available commands:

  • New layer : creates a layer.

  • Delete layer : deletes selected layers even if they contain drawing entities. The drawing entities are delete together with the layer.

  • All layers ON : displays all layers.

  • All layers OFF : hides all layers. The current layer remains visible.

  • Invert layer visibility : all visible layers become not visible and and vice versa.

  • Make the layer of an object the current layer : sets a layer as the current layer for objects.

  • Change the layer of selected objects : change the layer for objects based on the property of the element. The command requires selected objects to change layer and the object from which it copies the layer setting.

  • Isolate layer : hides all layers except those for the selected objects.

  • Layer off : turns layers related to the selected object off.

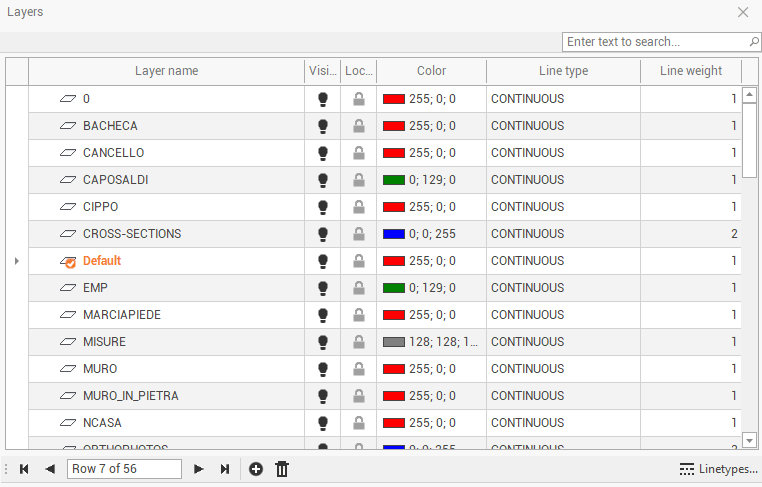

  • Layer properties : manages the data of a layer. This commands opens the following window.



  • Entity’s layer : manages the default association between entities and layers.

  • Lock/unlock : activates and deactivates a layer block.

  • Visible/Invisible : shows and hides layers.
