Workspace

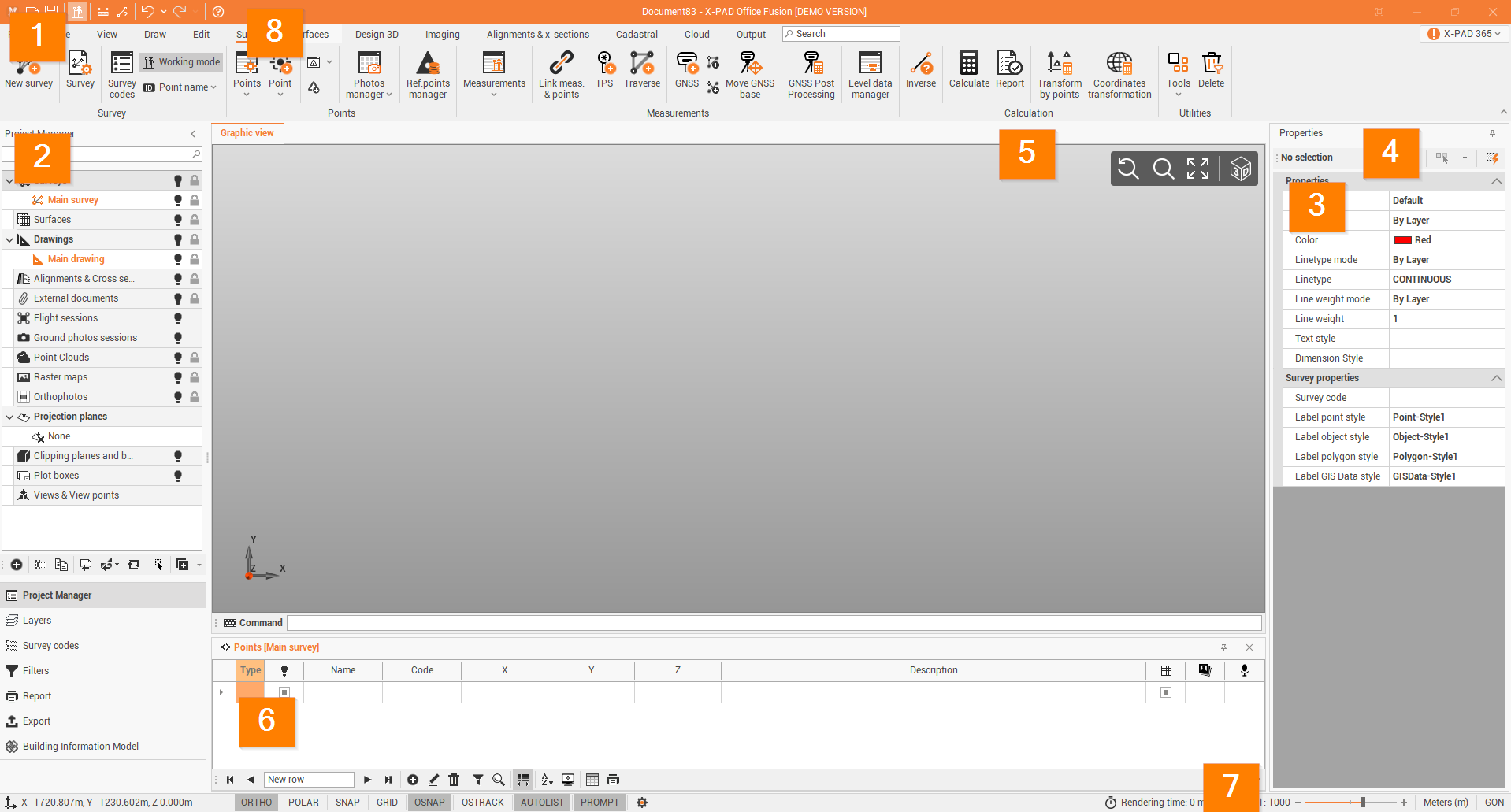

The workspace has been designed to allow easy use of all functions. Understanding its structure is fundamental to use the program efficiently. The commands are grouped in the following areas:

1. Menu bar: Menu and main commands for the program.

2. Project Management panel: Management panels of the project data.

3. Right panel: Property management of objects and command options.

4. CAD window: Graphic data management area.

5. Bottom panel: Tables and functions.

6. Status bar: CAD options bar.

7. Command line: Direct input area for CAD commands.

8. Upper bar: Quick access to commands.

In this chapter we will understand the Fusion workspace.

• Project manager

• Layers

• Survey codes

• Display filter

• Report

• Export

• Graphic area
