Measure

Use the command Measure to add topographic points at fixed distance along a reference object.

Reference objects can be a lines, polylines, arcs and circles.

Click Draw.

Click click below Point to open drop down menu.

Click Measure.

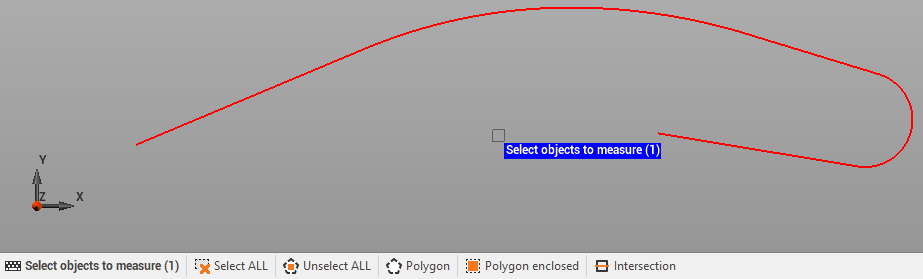

Select objects to divide. Can be directly selected in the graphic view clicking on them, or with a selection area. Or can be selected using the commands int he bottom part of graphic area.

Enter the distance. Distance can be entered:

• Measure distance: measures the distance to use on the graphic area.

• Enter value: enters the distance manually.

• Only on vertices: the topographic points are created only on the vertices of selected objects.

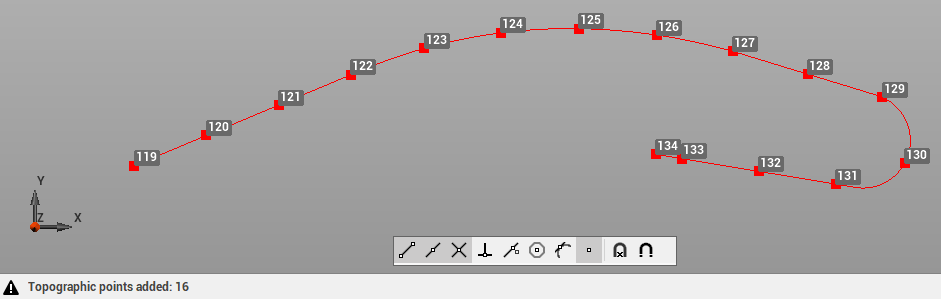

Confirm to create the topographic points.
