Merge surfaces, delete area, divide and cut surfaces

Fusion has tools to work on surfaces, to merge different surfaces into a single surface, delete an area from a surface, divide or cut a surface.

Merge surfaces

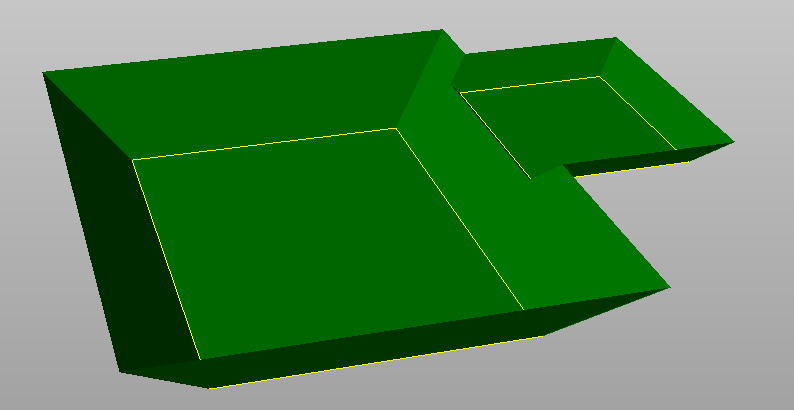

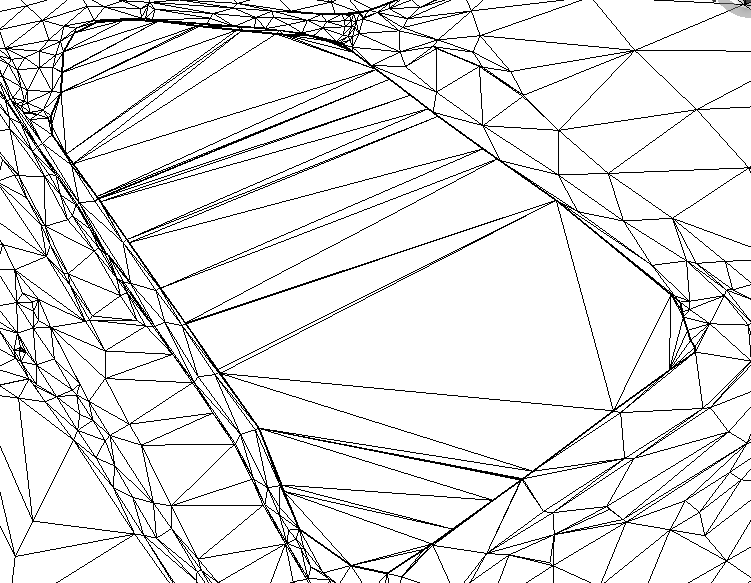

The tool Merge surfaces is used to merge two different surfaces into a single surface.

• Click Design 3D.

• Click Merge surfaces.

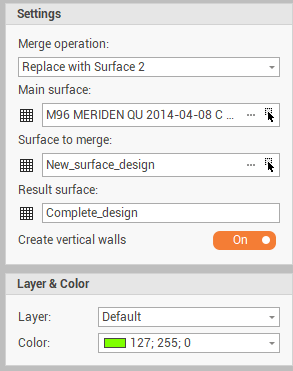

• The function opens a new panel on the right.

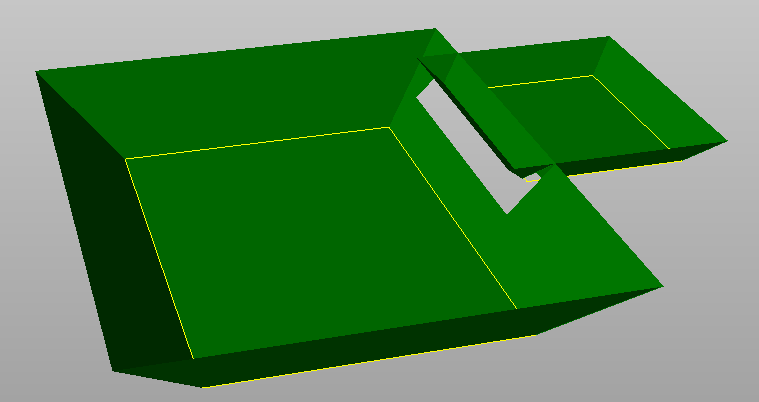

  • Merge operation: how the merging operation is performed in case of area in common between the two surfaces.

    • Replace with surface 2: replaces the area in common between the two surfaces with the content of the second surface.

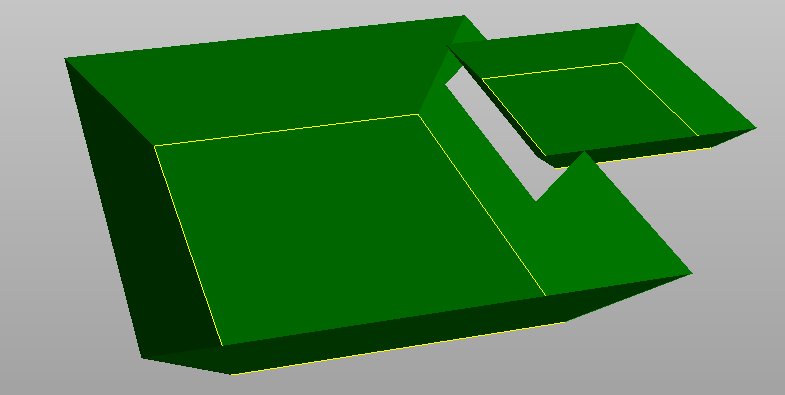

    • Merge with minimum profile: merges the two surfaces by considering the minimum profile.



    • Merge with maximum profile: merges the two surfaces by considering the maximum profile.



  • Main surface: the main surface to merge.

  • Surface to merge: the surface to merge to the main surface.

  • Result surface: the surface subproject where the new surface is created.

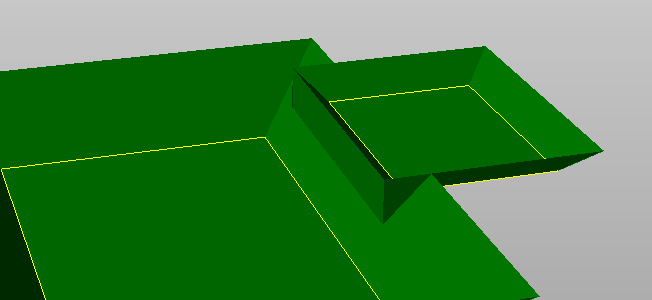

  • Create vertical walls: if Replace with surface 2 is used, creates a vertical wall between the 2 surfaces.



• Click Merge to complete the operation.

Delete area

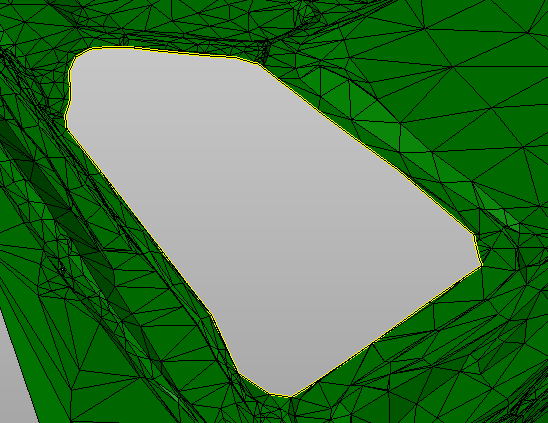

The tool Delete area deletes the part of the surface that is internal to a selected polyline.

• Click Design 3D.

• Click Delete area.



• The function opens a panel on the right.



  • Reference surface: the reference surface from where delete the area.

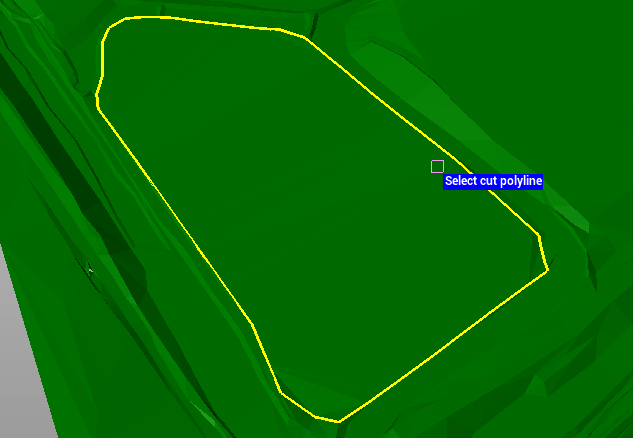

• Select the polyline.



• Specify if the delete area is internal or external.

• Confirm to delete the area.



Cut surface

The tool Cut surface cuts the triangles of a surface along the selected polyline

• Click Design 3D.

• Click Cut.



• The function opens a panel on the right.



  • Reference surface: the reference surface from where delete the area.

• Select the polyline.



• The surface is re-triangulated to have the triangles cut on the polyline.



Divide surfaces

The tool Divide surface is used to cut triangles along a selected polyline and create a new surface with separated triangles.

• Click Design 3D.

• Click Divide.



• The function opens a new panel on the right.



  • Surface to divide: the surface subproject where we have the surface to divide.

  • New surface: the surface subproject where the new surface with separated triangles is created.

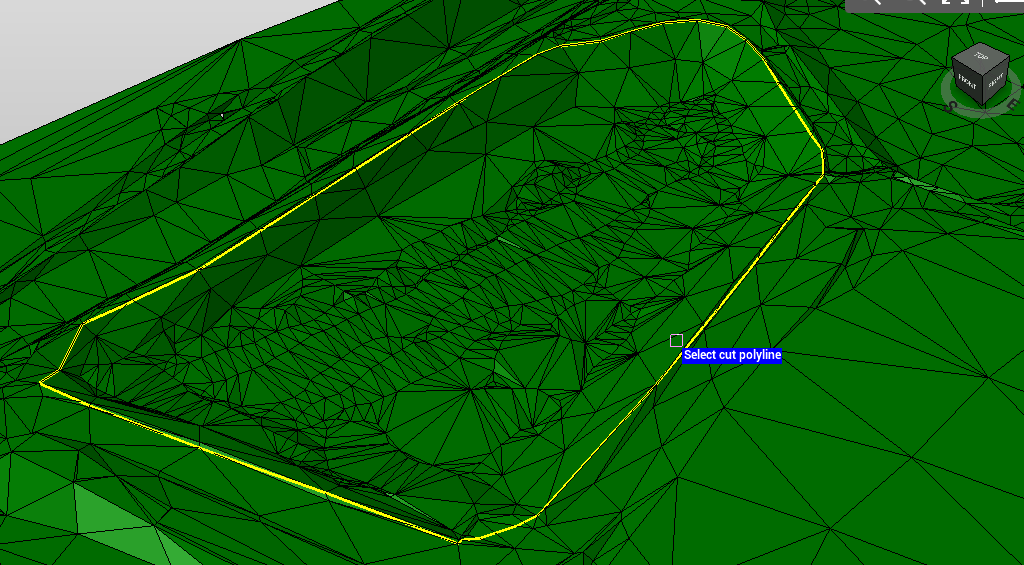

• Select the cut polyline.

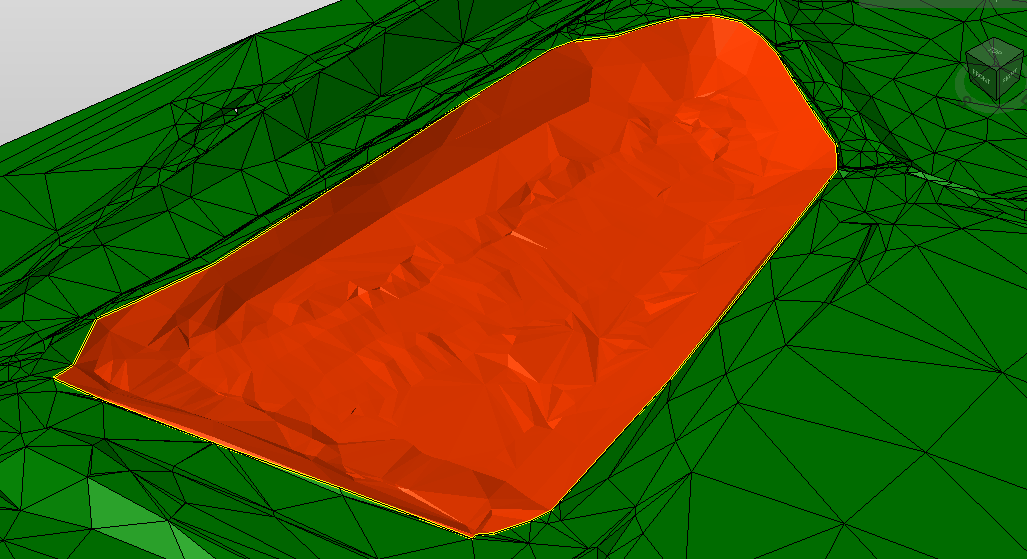

• The surface is divided into two surfaces, along the polyline.
