Points on object's intersections
Use the command On object’s intersections to automatically creates topographic points at all intersections of the selected objects.
Preparation of stakeout work packages in the office typically begins with a drawing in which layout positions must be defined. In this process, this command On object’s intersections is useful.
Click Draw.
Click click below Point to open drop down menu.
Click On object’s intersections.

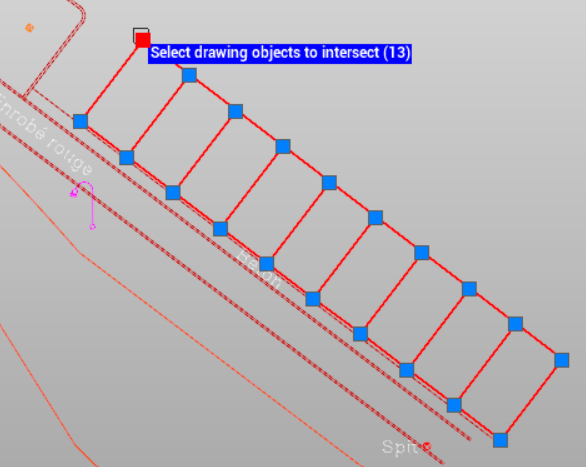

Select the drawing objects to intersect.
Enter the name of the first topographic point.

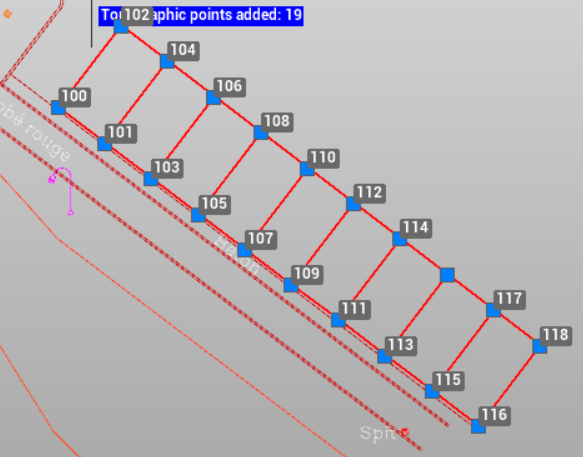

The software creates automatically the points.
