Save elaborations [Ground]

From main menu it’s possible select Save data in X-PAD Fusion with the outputs that has to be saved or create the X-Photo Report. This is a necessary step if we want further work on the output data in Fusion software.

• From the outputs bar, you can create a textured 3D mesh based on Dense Cloud.

• Click on Elaborate 3D Mesh

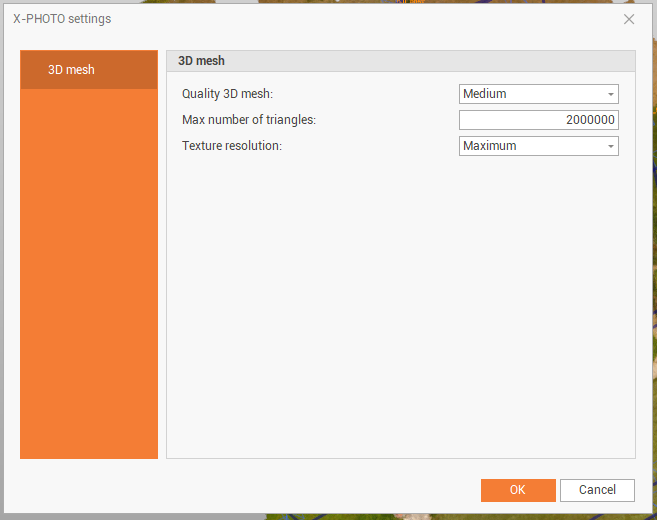

• Define the 3D Mesh settings.



  • Quality 3D mesh: the quality of the final 3D mesh.

  • Max number of triangles: the maximum number of triangles in the mesh.

  • Texture resolution: the quality level of the mesh texture.

• Click OK for the final output.

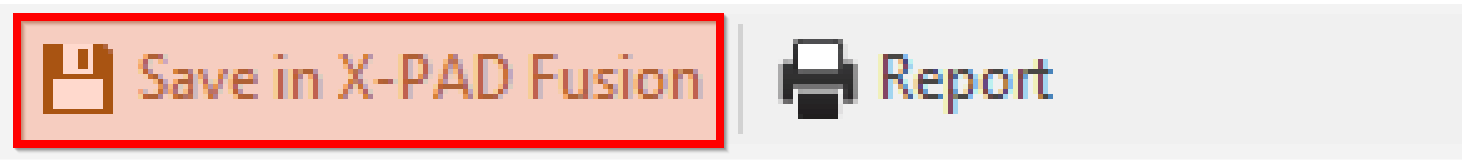

• From the sub-menu bar, click on Save in X-PAD Fusion

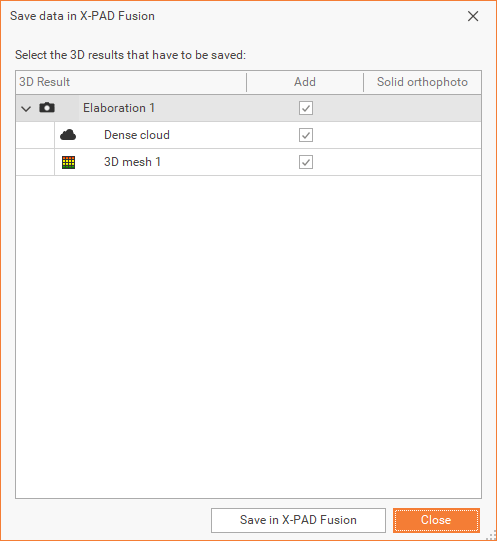

• Select the 3D results you want to save.

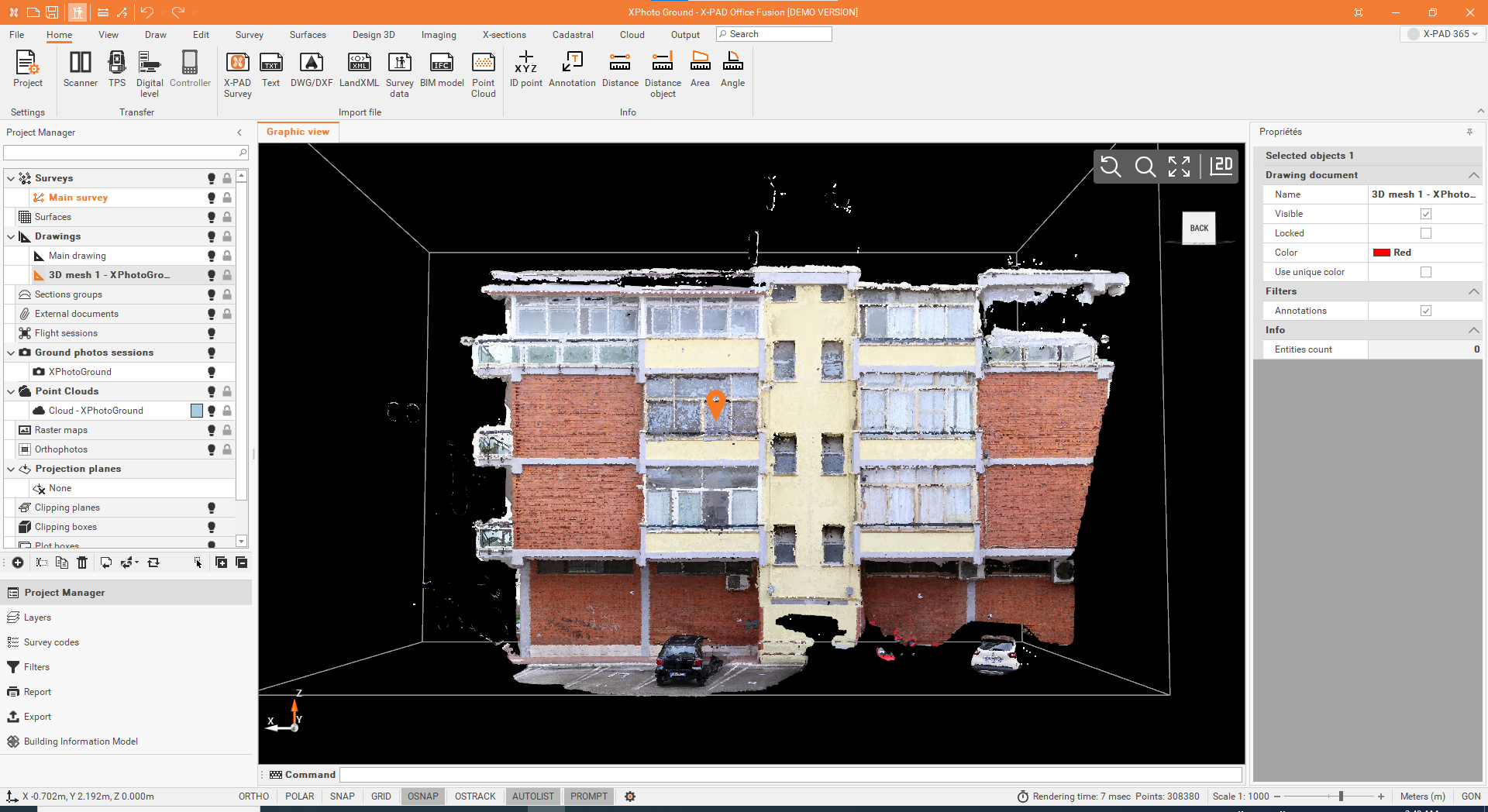

• Click Save in X-PAD Fusion to save the selected 3D results.
