Sideslope by offset

The function Sideslope by offset calculates a fixed sideslope by specifying offset and slope.

  • Click Design 3D.

  • Click By offset.

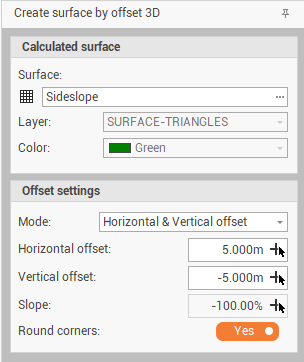

  • The function opens a new panel on the right.


    • Surface: the surface subproject where sideslopes are created. Can be an existing or a new surface.

    • Layer: the layer for the new surface.

    • Color: the color of the new surface.

    • Mode: the offset method. Different modes are available:

      • Horizontal & Vertical offset: allows to generate the sideslope from a polyline entering the horizontal and vertical offset from the polyline.

      • Horizontal offset & slope: allows to generate the sideslope from a polyline entering the horizontal offset and slope from the polyline.

      • Vertical offset & slope: allows to generate the sideslope from a polyline entering the vertical offset and slope from the polyline.

      • To polyline minimum elevation: allows to generate the sideslope from a polyline to the minimum elevation of the polyline and entering the slope.

    • Round corners: enables/disables the rounding of corners.

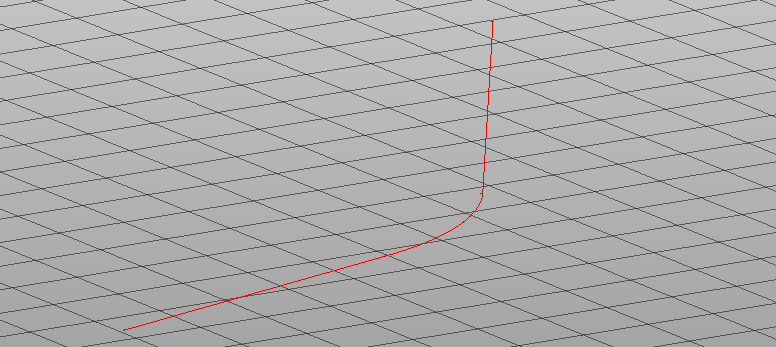

  • Select the polyline in CAD.

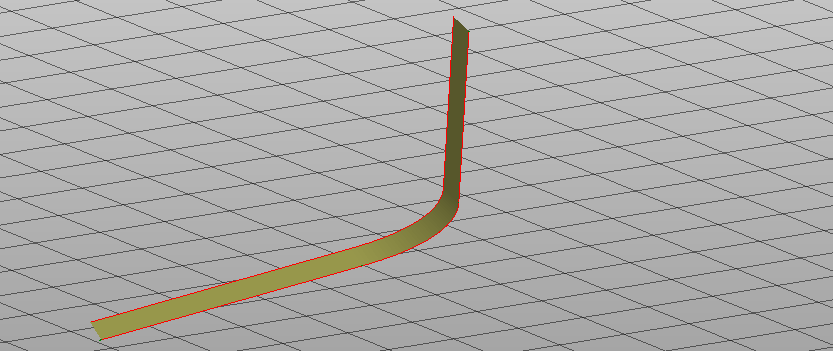

  • Specify in CAD the slope direction to create the sideslope from the polyline.
