Standard views.

The Standard views commands are used to define and save CAD views.

• Click View.

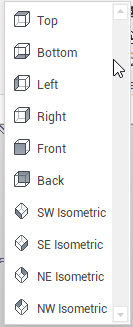

• Click to select one of the predefined views, and set it as CAD view.



Front view

The Front view creates an orthographic front view perpendicular to a given direction defined by 2 points.

• Click Front view.

• In the graphic area, click to select the 2 points.

• The view will be an orthographic front view perpendicular to the selected direction.

Save view

The Save view command allows to save a custom view in the Project Manager.

• Once a view has been defined in the CAD, click on Save view.



• The view is saved in the Project Manager.



• Click on this view on the Project Manager to recall it.

Save view points

The Save view points command creates a new view point to be used in Panorama mode.

• Click Save view points.



• Click in the CAD to enter the viewpoint position.

• Enter the height from the ground to the point of view.

• The view point is saved in the Project Manager.



• Click on this view on the Project Manager to recall it.
