Text

Use the command Text to create single line text, specifying the insertion point.

• Click Draw.

• Click Text.

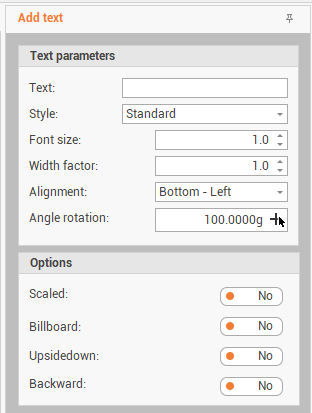

• The function opens a panel on the right of the graphic view.



• Confirm the text creation options:

  • Text: the text to enter.

  • Style: selects from the drop-down list the available text style (See Text styles )

  • Font size: the size of the text font.

  • Width factor: the width of the text is based on a factor of the letter width defined by the font.  This definition that predefined width can be alter by the factor entered here.

  • Alignment: the text alignment referred to the insertion point of the text.

  • Angle rotation: the rotation angle of the text.

  • Scaled: if enabled, the created text is scaled based on CAD scale factor.

  • Billboard: if enabled, the created text is always seen frontally even in 3D views.

  • Upside down: the entered text is created upside-down.

  • Backward: the entered text is created backward.

• Click on the graphic view, to specify the text insertion point.
