Triangulate polyline

The tool Triangulate polyline fills a selected closed polyline with triangles, generating a surface.

  • Click Design 3D.

  • Click Triangulate polyline.


  • The function opens a new panel on the right.


    • Surface: the surface subproject where surface is created. Can be a new surface or an existing surface.

    • Layer: the layer for the new surface.

    • Color: the color of the new surface.

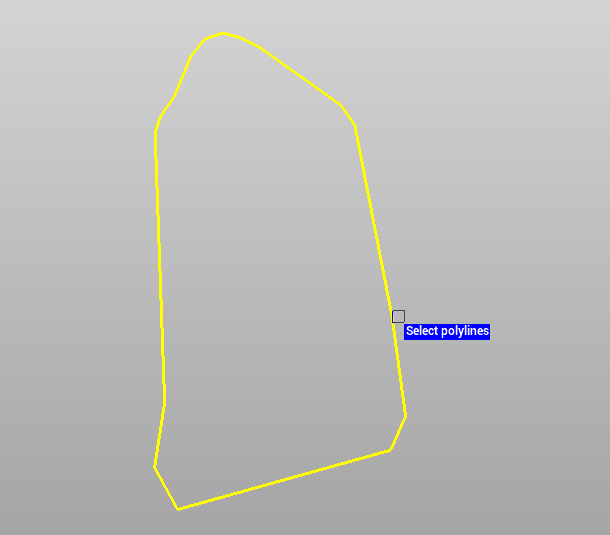

  • Select the closed polyline and confirm the selection.

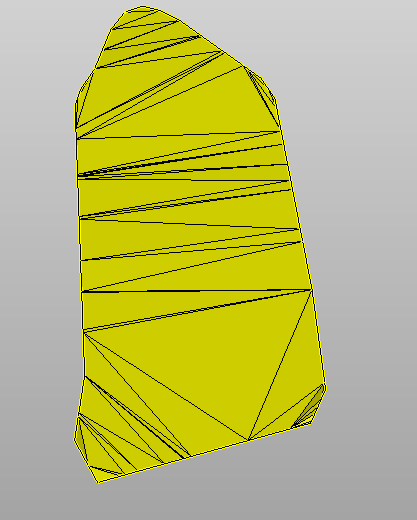

  • The surface is created.
