Stereo drawing

Stereo drawing is an advanced drawing tool based on analytical photogrammetry, allowing the manual computation of 3D coordinates.

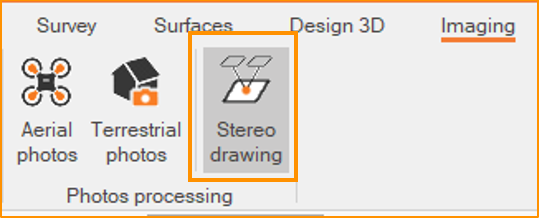

  • From the Imaging menu, select Stereo Drawing.

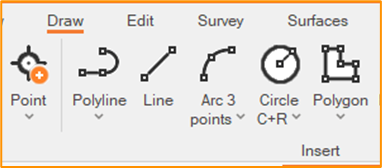

  • Then you can use the drawing tools from the Draw menu.

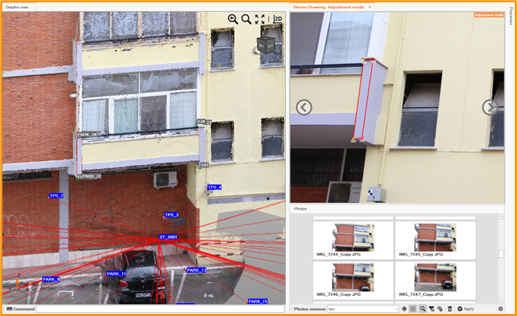

  • Points and vertices can be selected directly from the graphic view or the photos displayed in the Stereo Drawing panel.

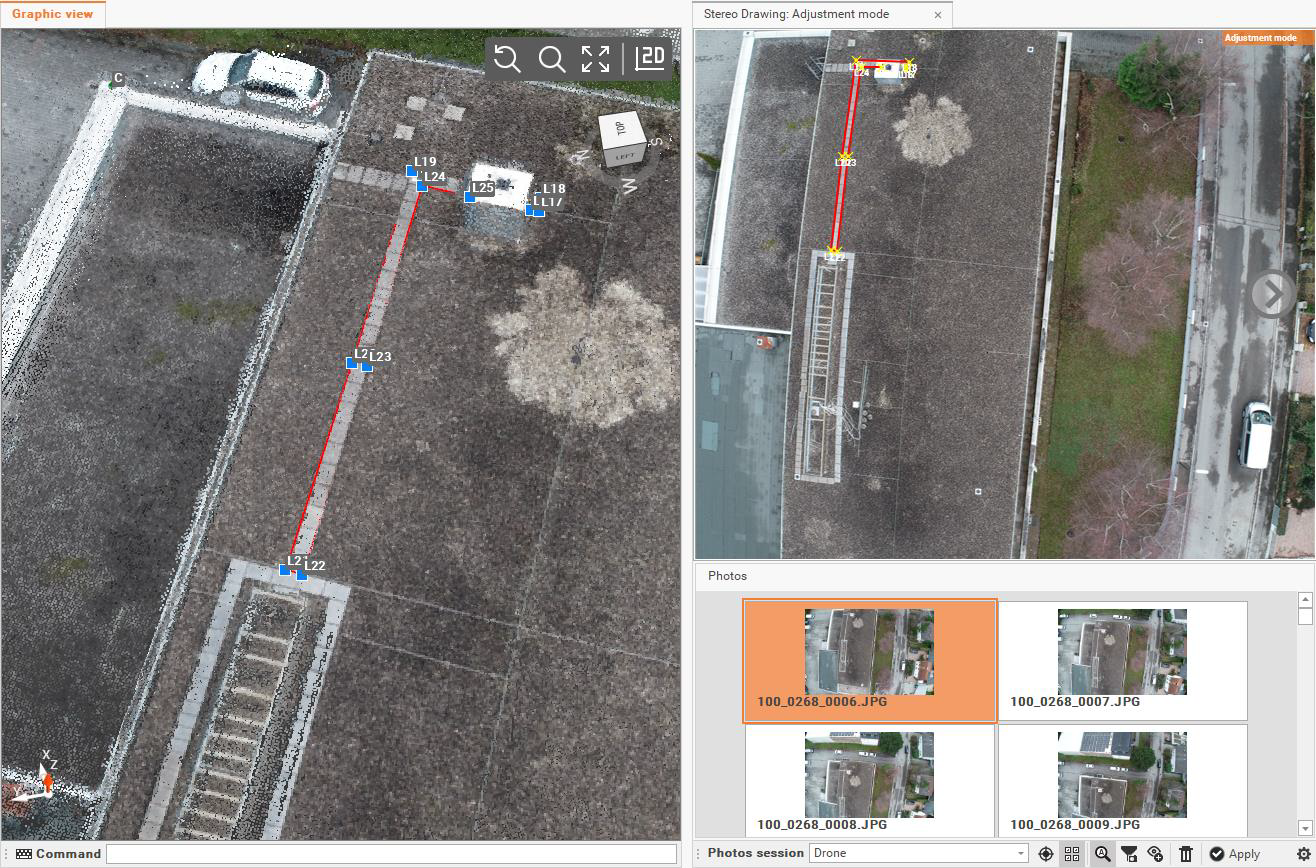

  • Once a point or object is created, the Stereo Drawing panel can be reopened to adjust vertex positions if needed.
