Vertices grid

Use the Vertices grid function to open an editable table with the vertex coordinates of the selected polyline.

  • Click Edit.

  • Click Vertices grid.

  • Select a polyline.

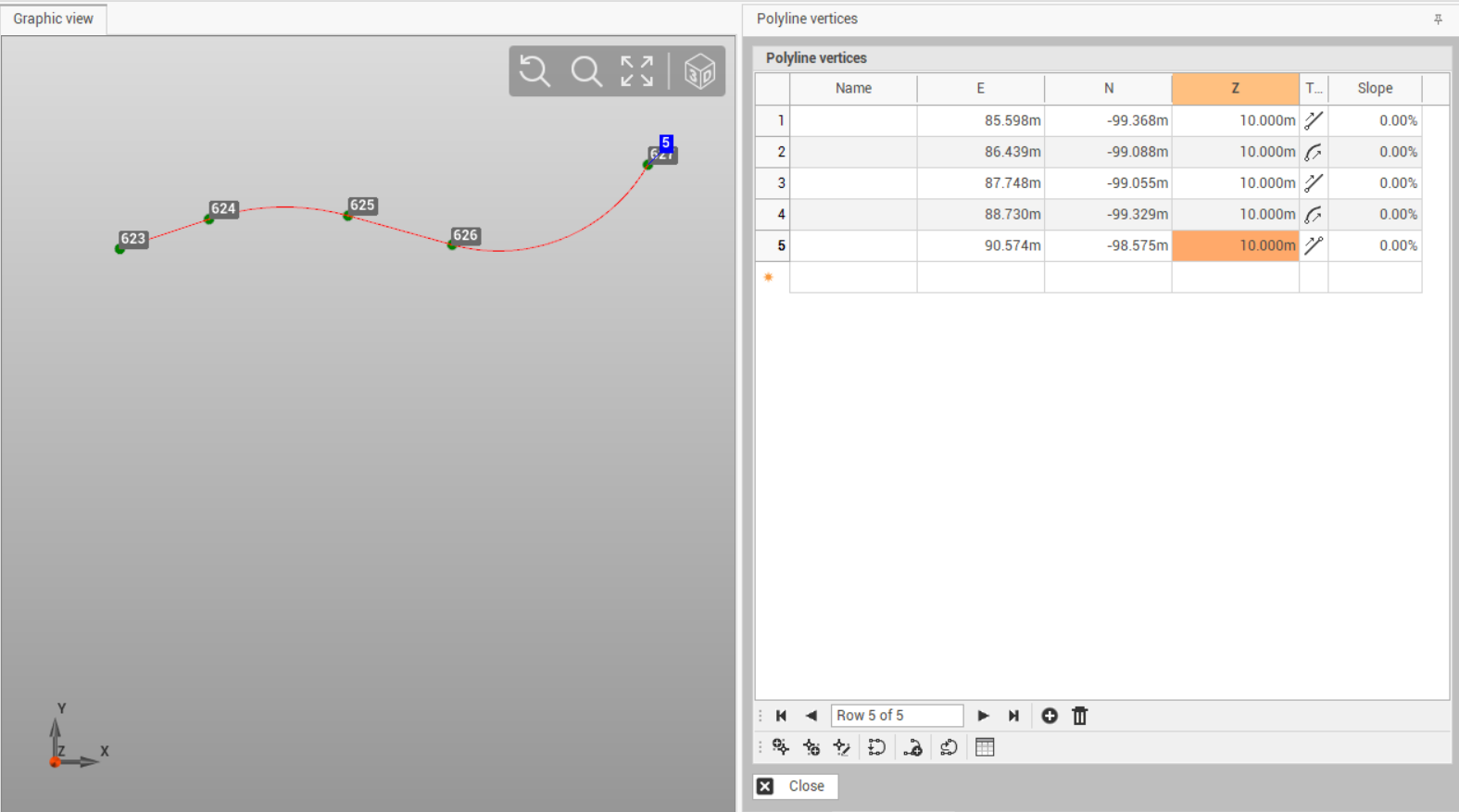

  • The function opens a atable on the right panel.

  • The table can be edited to change the vertexes of the polyline.

    • Name: the name of the vertex point.

    • E, N, Z: the coordinate of the vertex.

    • Type: the type of the segment starting from the vertex, for example line or arc.

    • Slope: the slope to the next vertex, edit this field to automatically recalculate the new elevation.

    • Insert: to insert a new vertex in the table.

    • Remove: to remove the selected table line and corresponding vertex.

    • Add vertex before: to add a new vertex before the selected line. Click on the graphic view to create the new vertex.

    • Add vertex after: to add a new vertex after the selected line. Click on the graphic view to create the new vertex.

    • Edit vertex: to edit the selected vertex from the CAD.

    • Close: to close the polyline.

    • New polyline: to create a new polyline and a new vertex table.

    • Invert polyline: to invert the order of the polyline vertexes.

    • Table: to create a drawing table of the polyline. Click on the graphic area to insert the table.
