Visual alignment

This method allows to align two different setup visually.

• In Setups and Bundles panel select the two setups to register (you can Ctrl-click or Shift-click the second setup to add it to the selection)

• Select Visual Align.

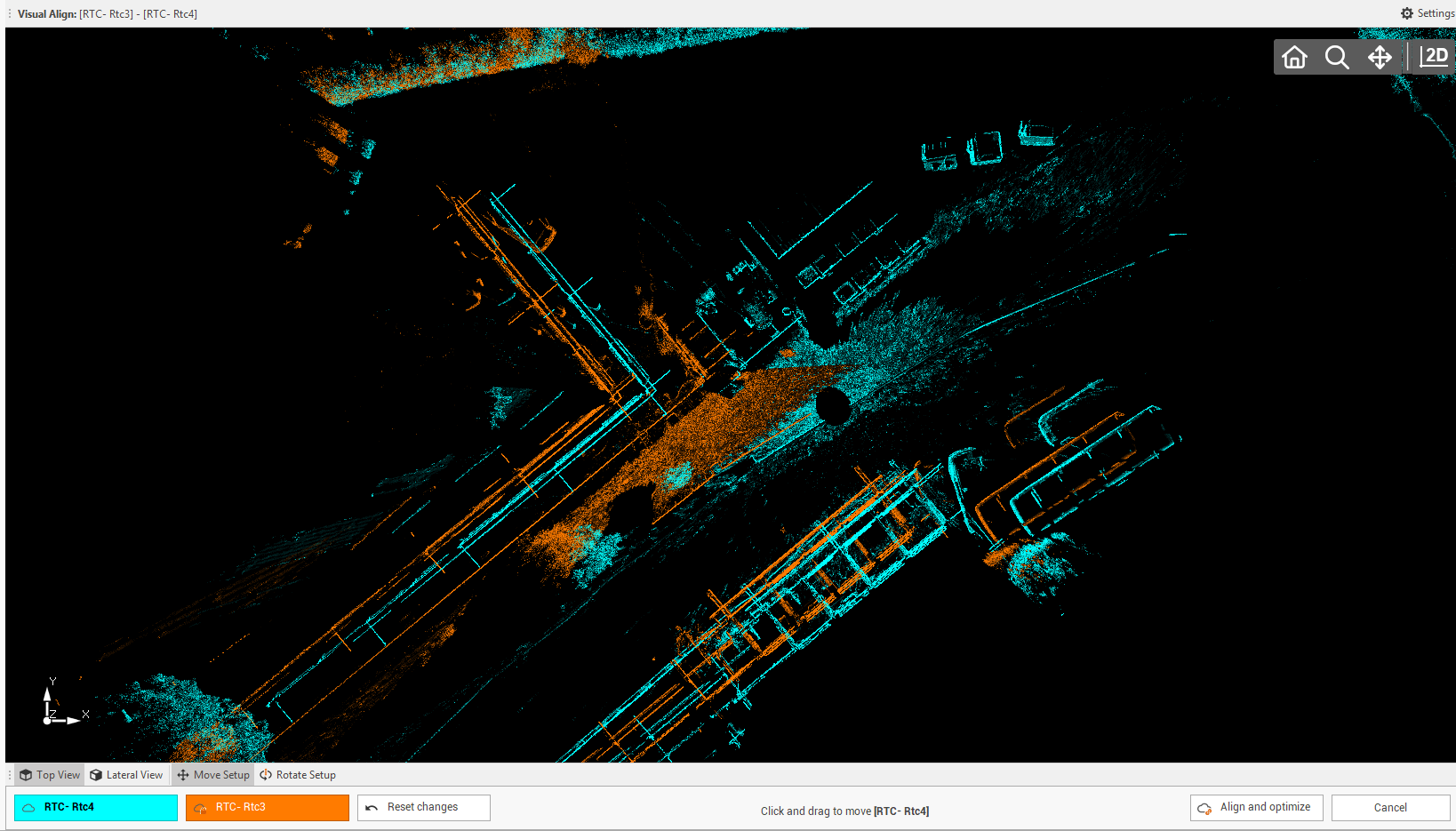

• This command opens a new window.



• The two selected scans are visualized in different colors. The goal is to move the scans in planimetry and vertically to align them.

• The commands on bottom can be used to help aligning the scans:

  • Top View: to change the view from top.

  • Lateral view: to change the view to a vertical view.

  • Move setup: use this command to move the unlocked setup in planimetry. Click and drag to move.

  • Rotate setup: use this command to rotate the unlocked setup. Click to set the rotation center and drag to rotate.

  • Reset changes: to reset all changes done to the two setups.

  • The two coloured buttons are the two setups. Click on a setup to lock the other one and move and rotate the selected scan.

• Click Align and optimize to optimize and align the two setups.

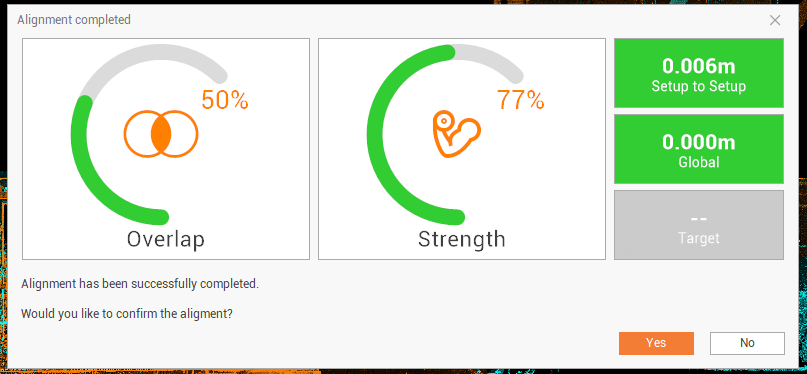

• The information regarding the link quality are visualized:

  • Overlap: the percentage of overlapping points between setups.

  • Strength: the relative stiffness, with respect to different directions, of the constraints on the link.

  • Setup to Setup: error for the two setups joining.

  • Global: overall global error for a bundle. Shows the amount of setup movement when global optimization is applied.
