Workspace structure

  • Understanding the workspace structure is fundamental to use the program efficiently.

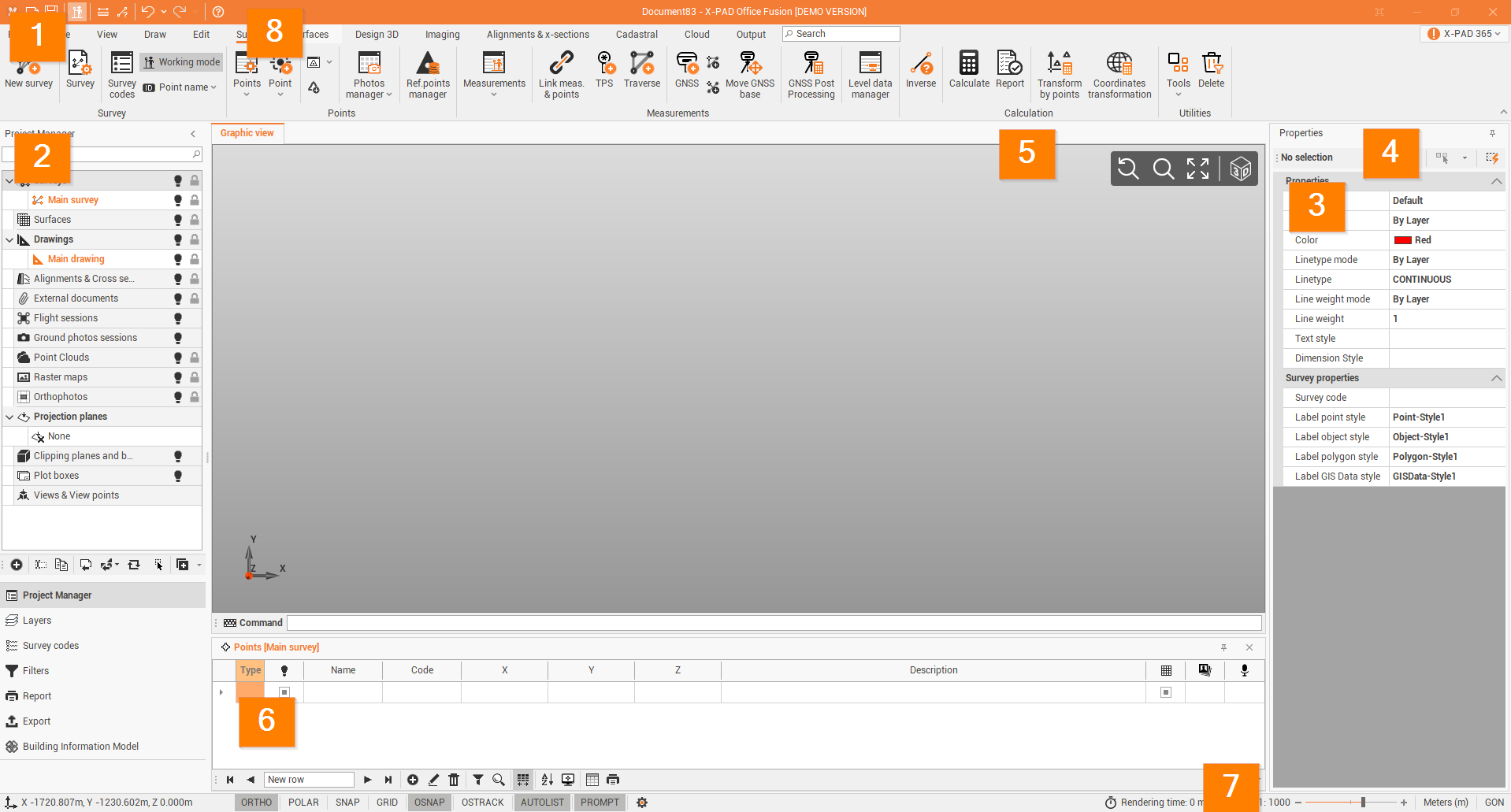

  • The commands are grouped in the following areas:


  1. Menu bar: menu and main commands for the program.

  2. Project Management panel: management panels of the project data.

  3. Right panel: property management of objects and command options.

  4. Quick select tool: allows to automatically select drawing objects based on the specified properties.

  5. CAD window: graphic data management area.

  6. Bottom panel: tables and functions.

  7. Status bar: CAD options bar.

  8. Command line: direct input area for CAD commands.

  9. Upper bar: quick access to commands.
