2 Reference axis setup

X-PAD Ultimate Survey 1.png + BUILD | X-PAD Ultimate Build 1.png

  • The position and orientation of the station are determined by measuring four reference points. The points set two axes which, intersecting each other, determine the position of the station.

  • Select NO. Station position has to be calculated.

  • Select 2 Reference axis.

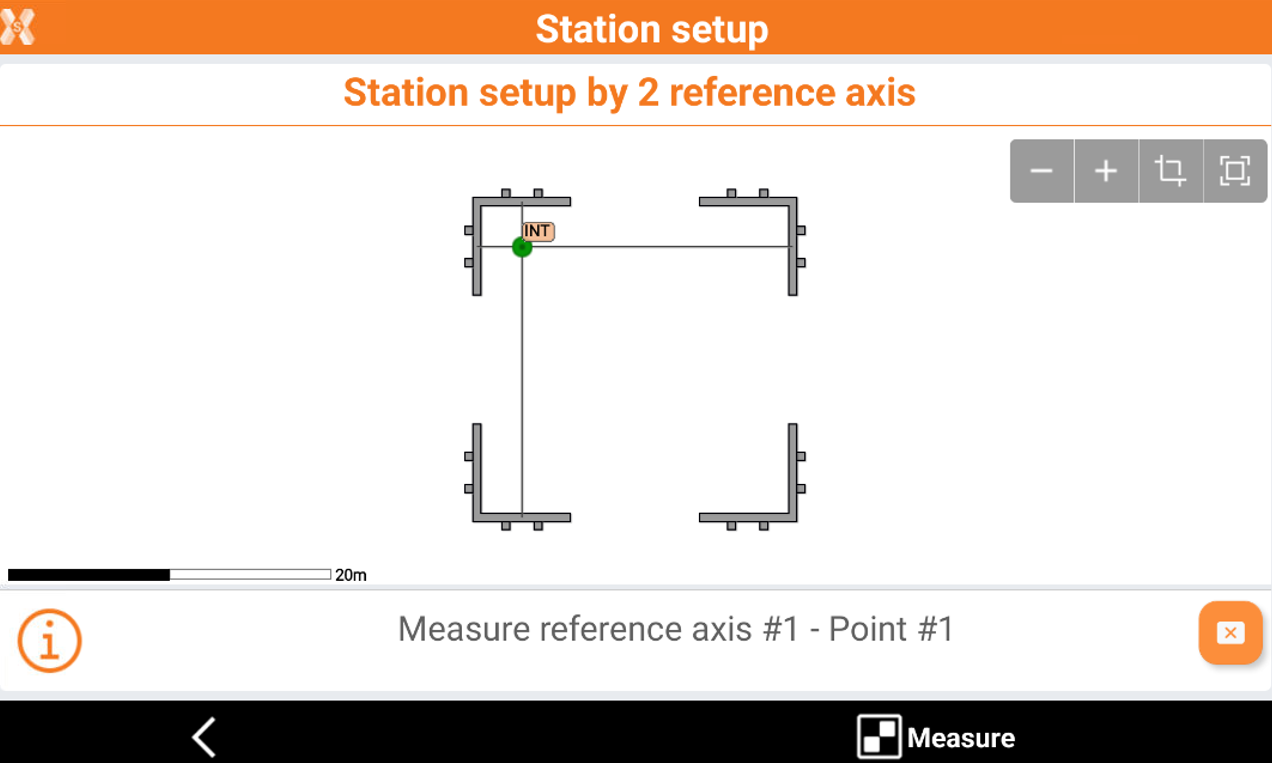

  • Measure the first reference axis, measuring two points on the axis.

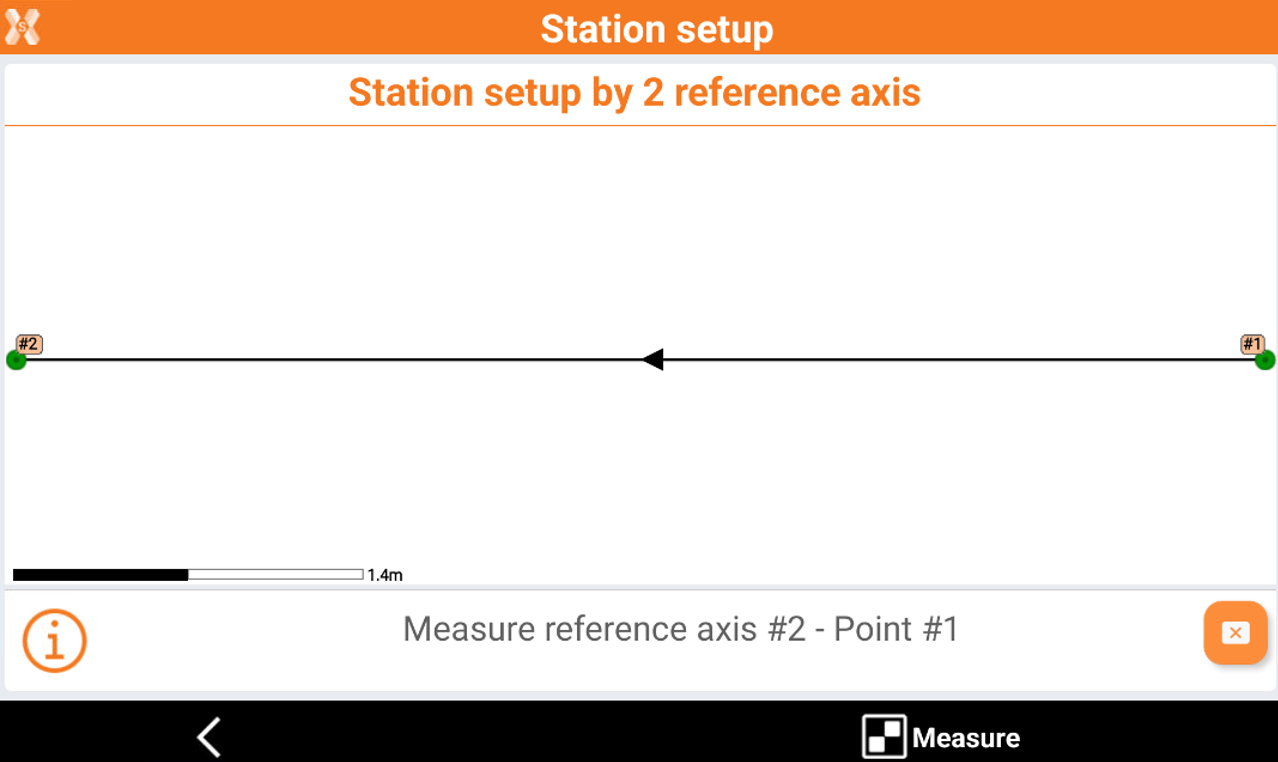

  • Continue measuring two points on the second reference axis.

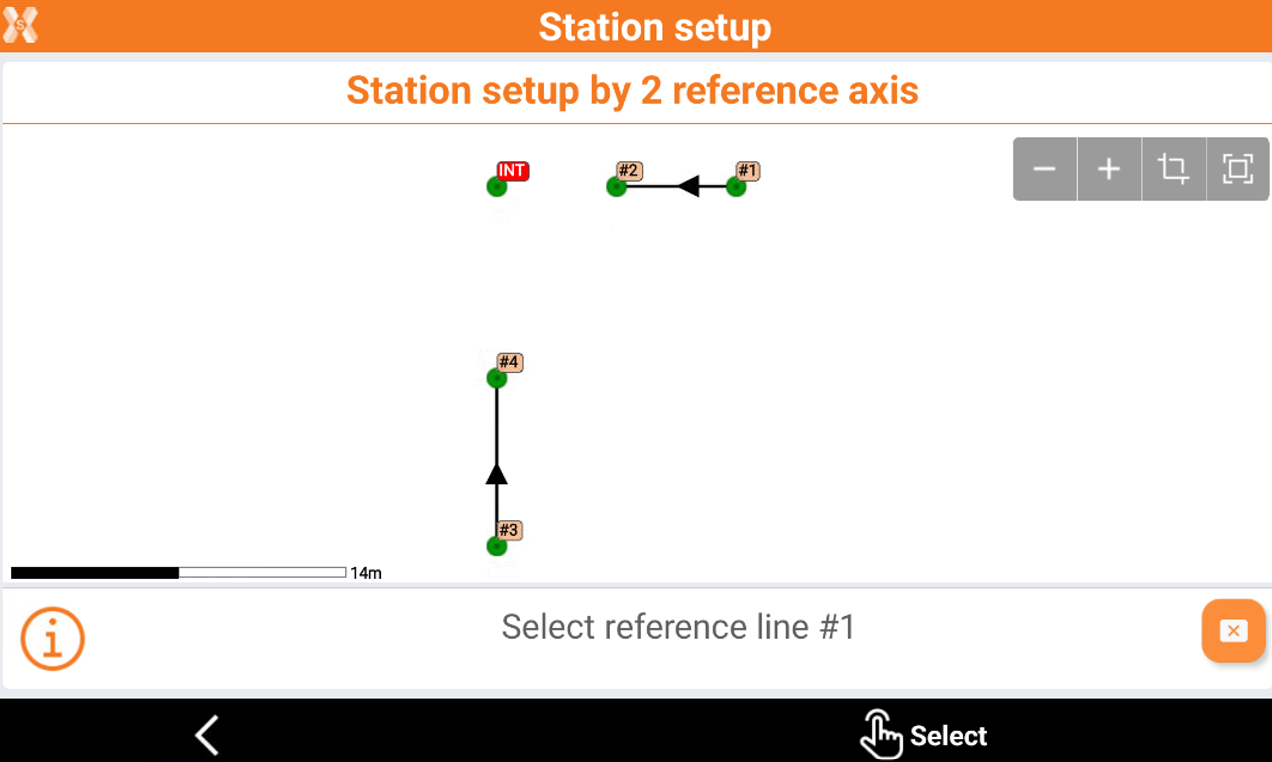

  • Select graphically the first reference line, click Select.

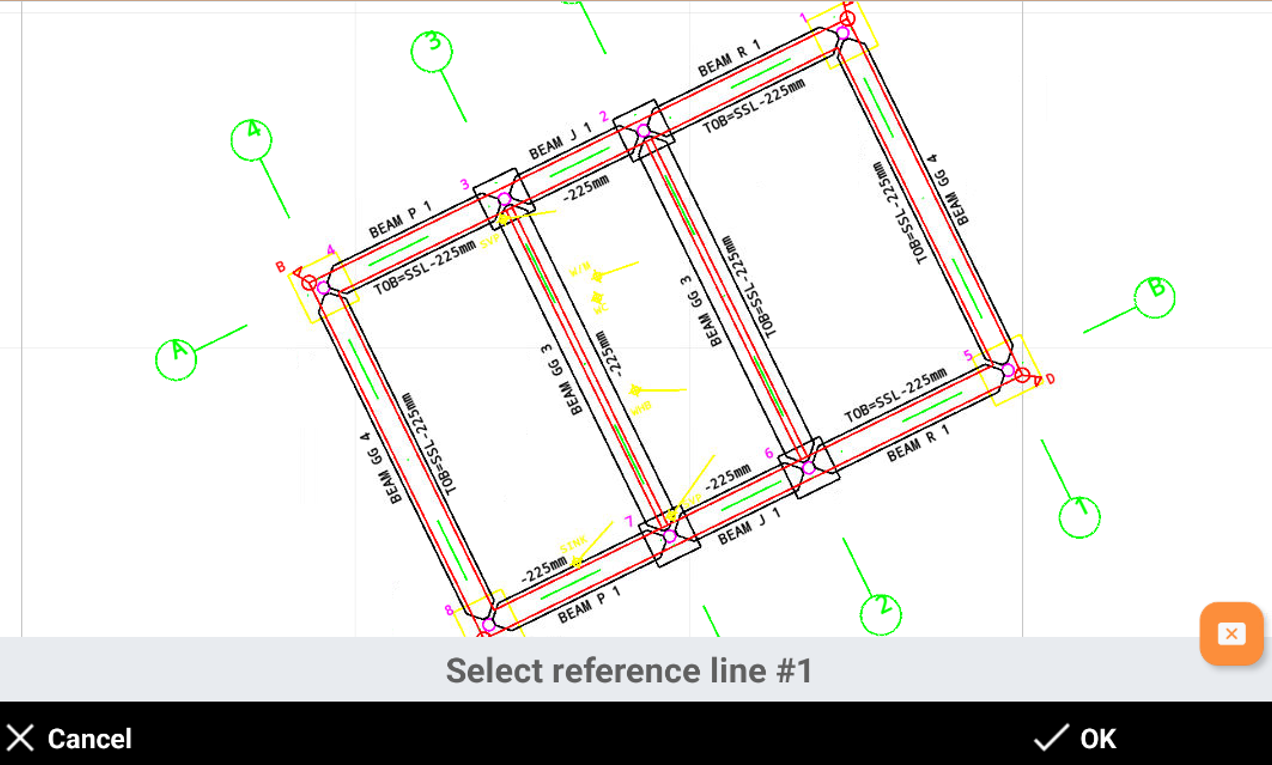

  • Select the two reference lines directly in CAD.

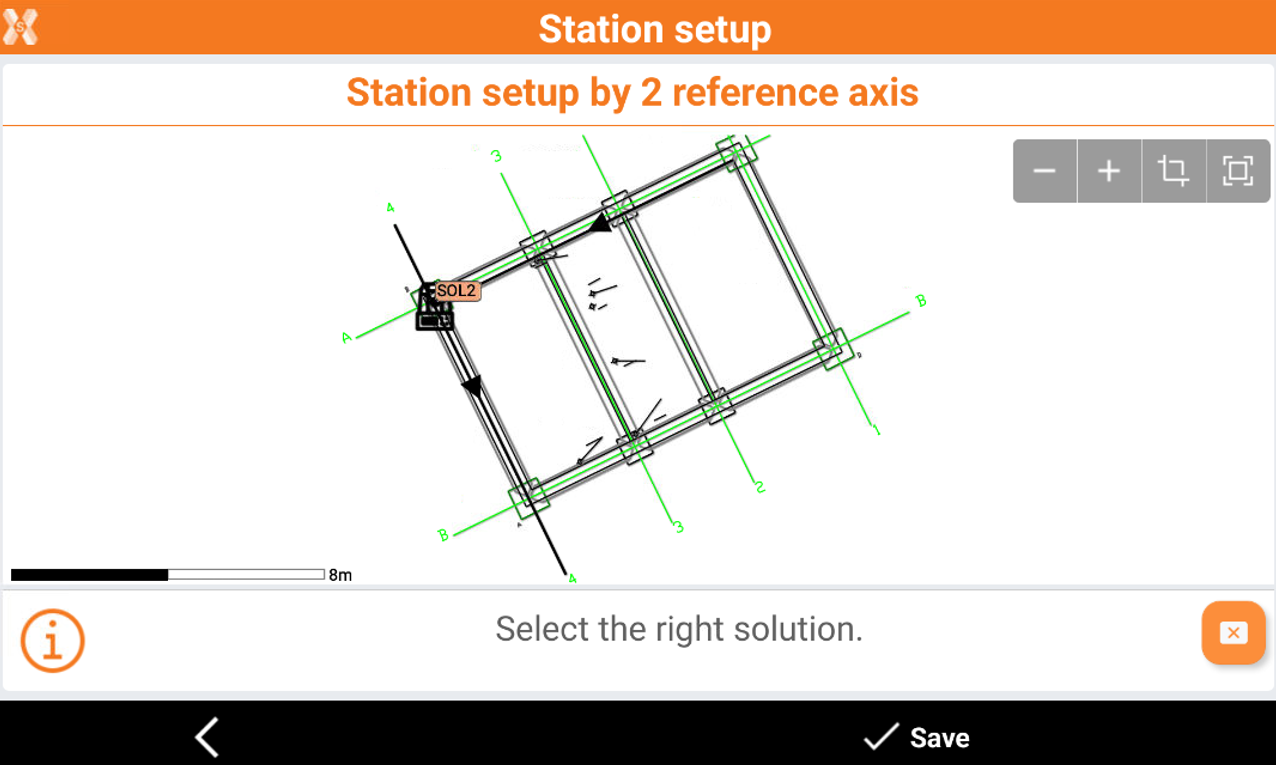

  • Select the right solution among the two proposed solutions.


  • Click Accept setup to complete the setup process.
