Area & Length

|

• The function Area & Length is a COGO function that calculates, during the survey operation, the circumference of an area and the length between the points forming the area.

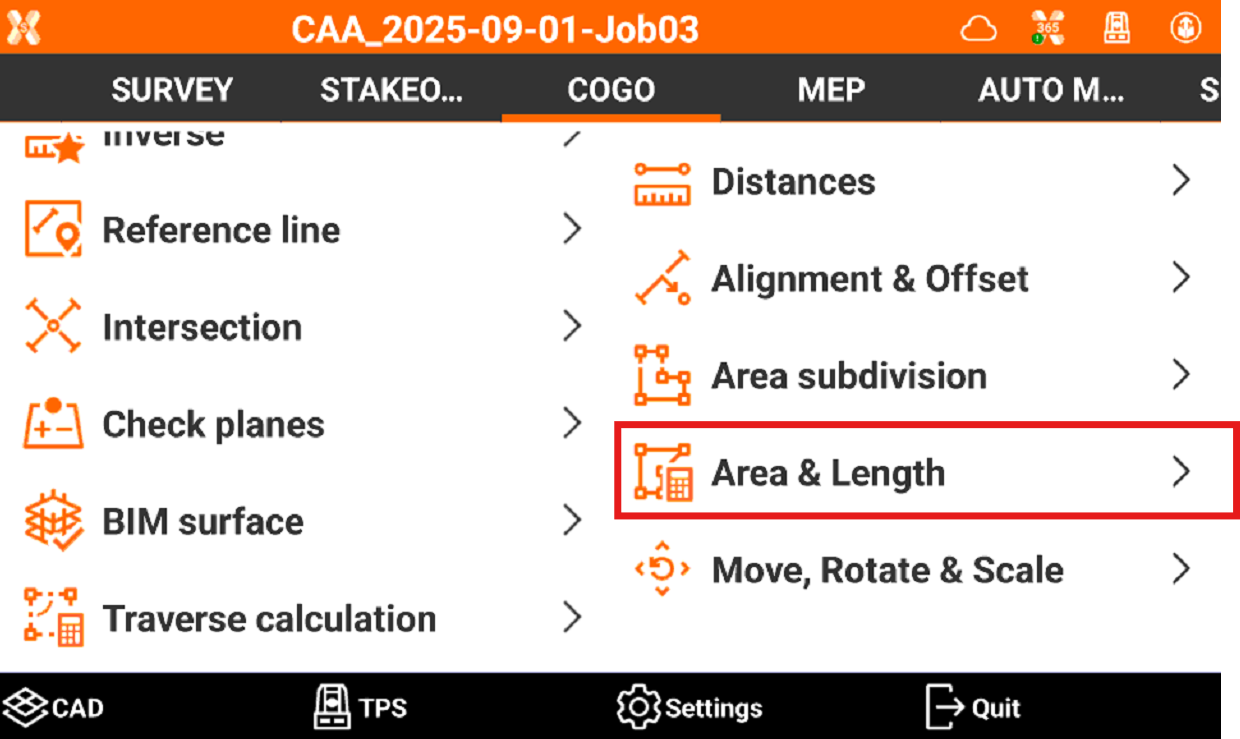

• Click COGO.

• Select Area & Length.



• Tap Measure to measure the points defining the area.

• Tap Delete last to cancel the measurement of the last stored point.

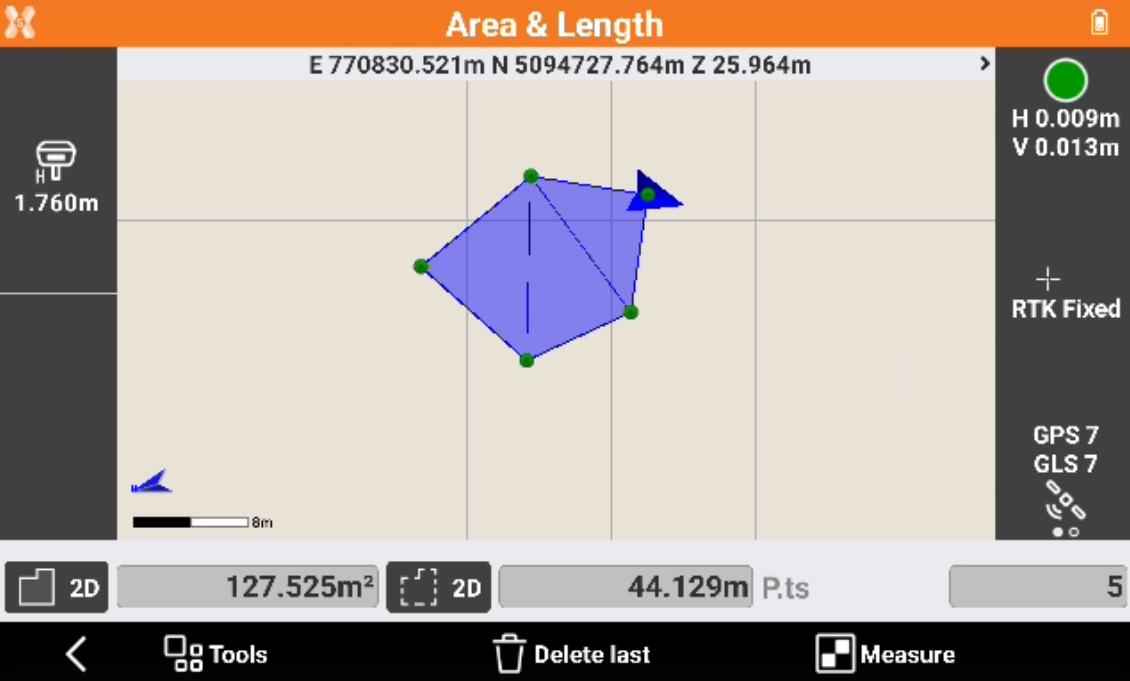

• Areas and lengths information are available in the bottom bar. Click on the icons to change from 2D to 3D visualization.

  • Perimeter 2D: displays the plane length of the circumference.

  • Perimeter 3D: displays the three-dimensional length of the circumference.

  • Length 2D: displays the plane length of the line between the points.

  • Length 3D: displays the three-dimensional length of the line between the points.

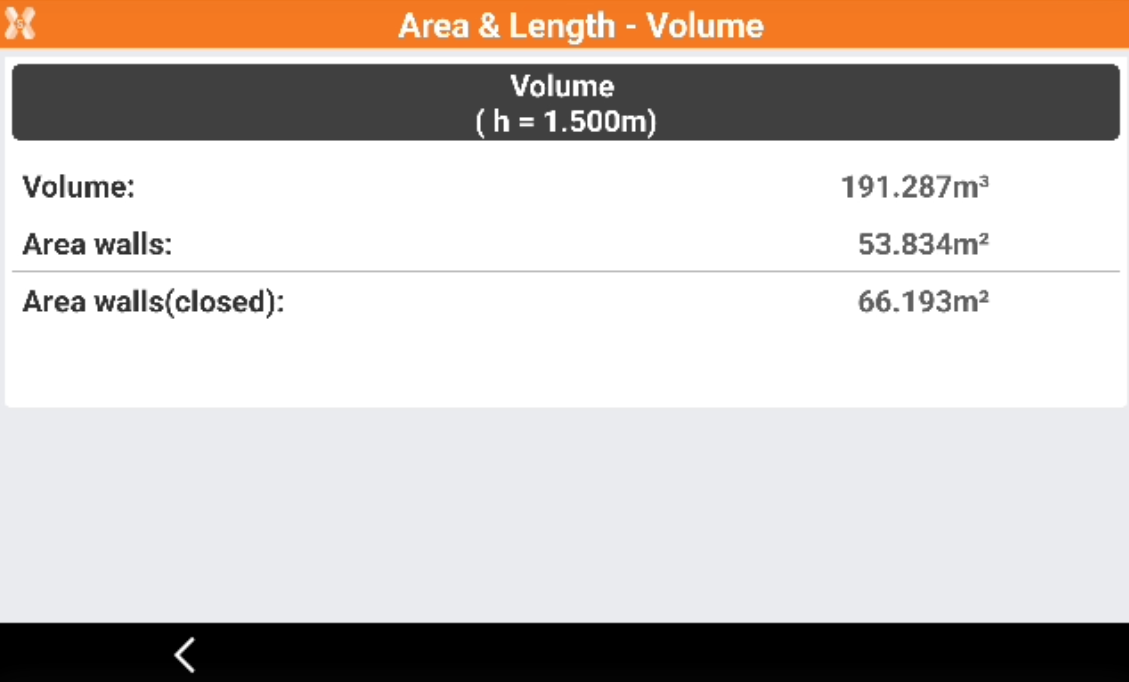

• During the measurement, the corresponding volume and the and area of the walls can be displayed. Click Tools and select Volume. Enter the height to calculate the volume.



  • Volume: the calculated volume using the points measured so far.

  • Area walls: the calculated area of the walls surrounding the volume using the points measured so far. One side is open.

  • Area walls(closed): the calculated area of the walls surrounding the volume using the points measured so far. The area is closed from the last point measured to the first point.

• To store points and polyline in the current job click Tools and select Store points and polyline.
