Auto free station

+ ROBOTIC

• Performs an automatic search and measurement of all the targets around the station.

• The position and orientation of the station are determined by comparing the measurements with the reference points which have to be present in the job.

The reference points to automatically measure must be available in the Reference Points list.

• Select No. Station position has to be calculated.

• Select Auto Free station.

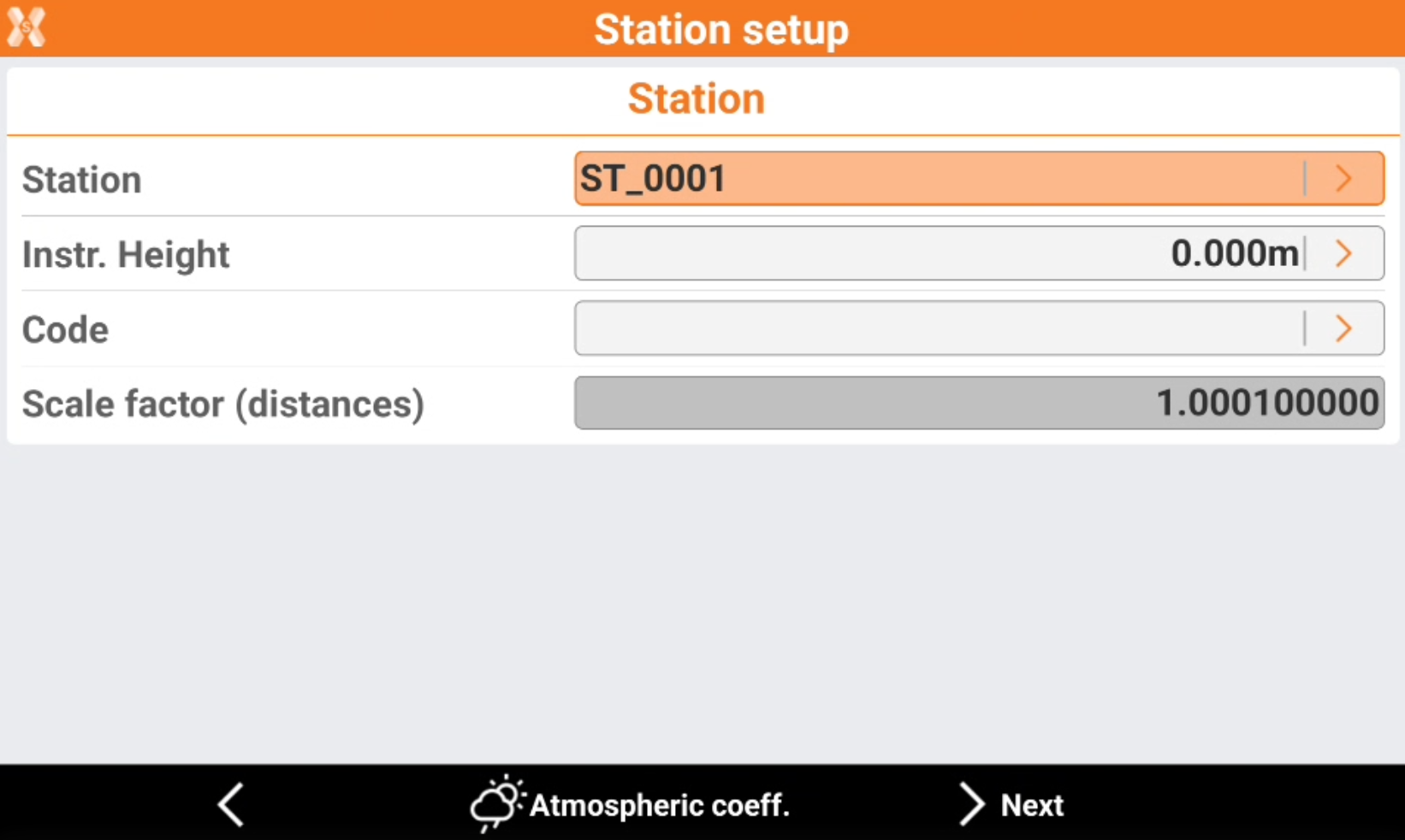

  • Station: name of the station. Select a point existing in the job.

  • Instrument height: elevation of the total station from the ground. It is possible to calculate the height of the instrument.

  • Code: code to assign to the station point in case a new point is created.

• Click Atmospheric coeff to change the atmospheric coefficients.

• Click Next to proceed with the automatic procedure.

• The instrument performs an automatic search and automatic measurement of all targets around the station.

• The measurements are compared with the coordinates of the reference points, which must have been added to the job previously. Then, the software calculates the position and orientation of the station.
