Backsight to known point

| |

• The station has been placed on a point of known coordinates and the orientation is determined through the measurement of a reference point with known coordinates.

The reference point must available in the list of topographic points or in the list of reference points.

• Select Yes. Station position is known.

• Select Backsight to known point.

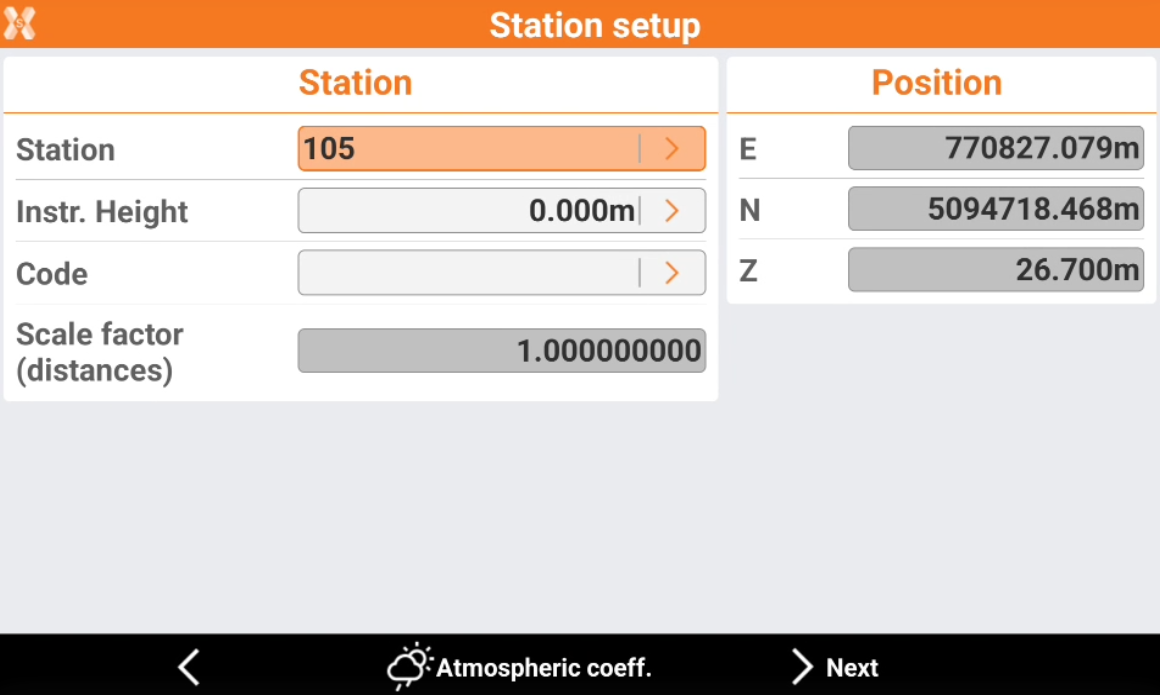

  • Station: name of the station. Select a point existing in the job.

  • Instrument height: elevation of the total station from the ground. It is possible to calculate the height of the instrument.

  • Code: code to assign to the station point in case a new point is created.

  • E, N, Z: coordinates of the station. When an existing point was selected, the values cannot be edited.

• Click Atmospheric coeff to change the atmospheric coefficients.

• Click Next to proceed to define the reference point.

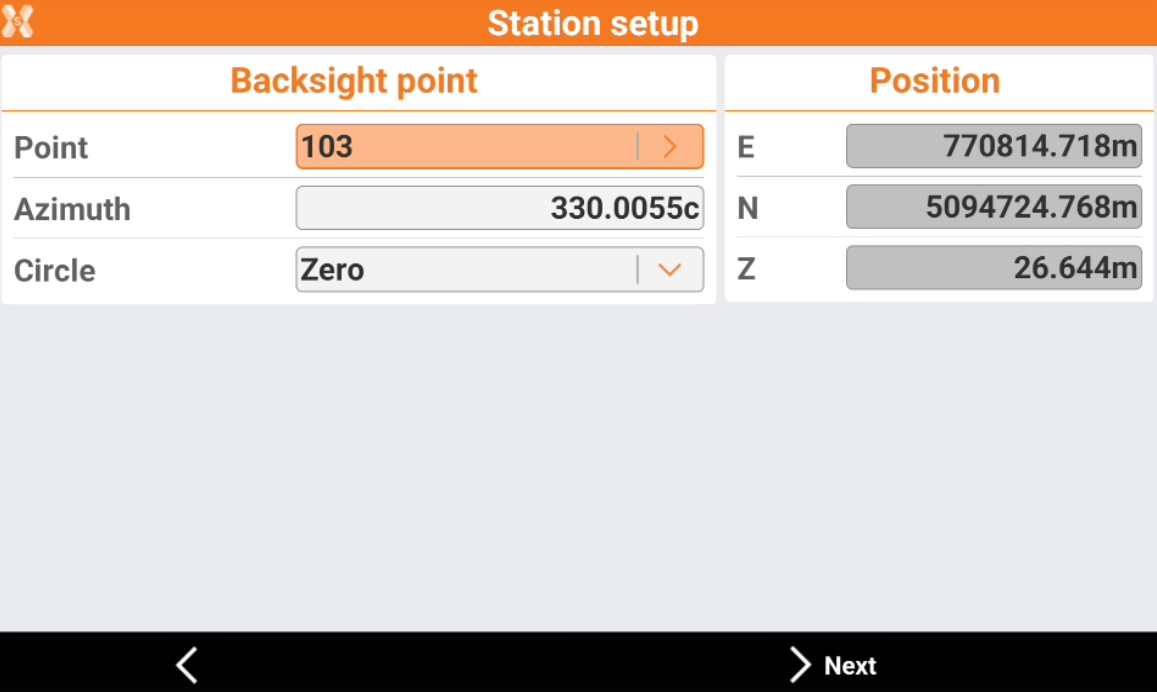

  • Point: specify the reference point which must be measured for the calculation of the station orientation.

  • Azimuth: the azimuth between the position of the station and the reference point is calculated.

  • Circle: define how to set the horizontal angle of the station:

    • Current value: the angle of the station is not modified.

    • Zero: the angle of the station is reset to the reference point.

    • Azimuth: the angle of the station is set to the azimuth value.

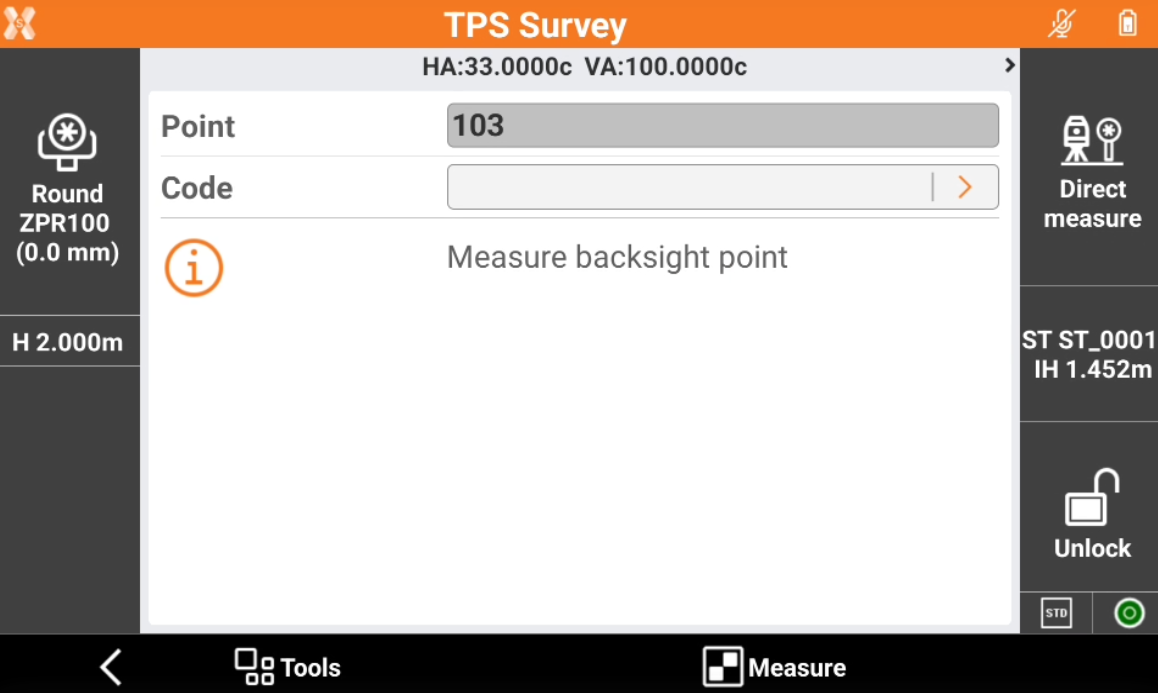

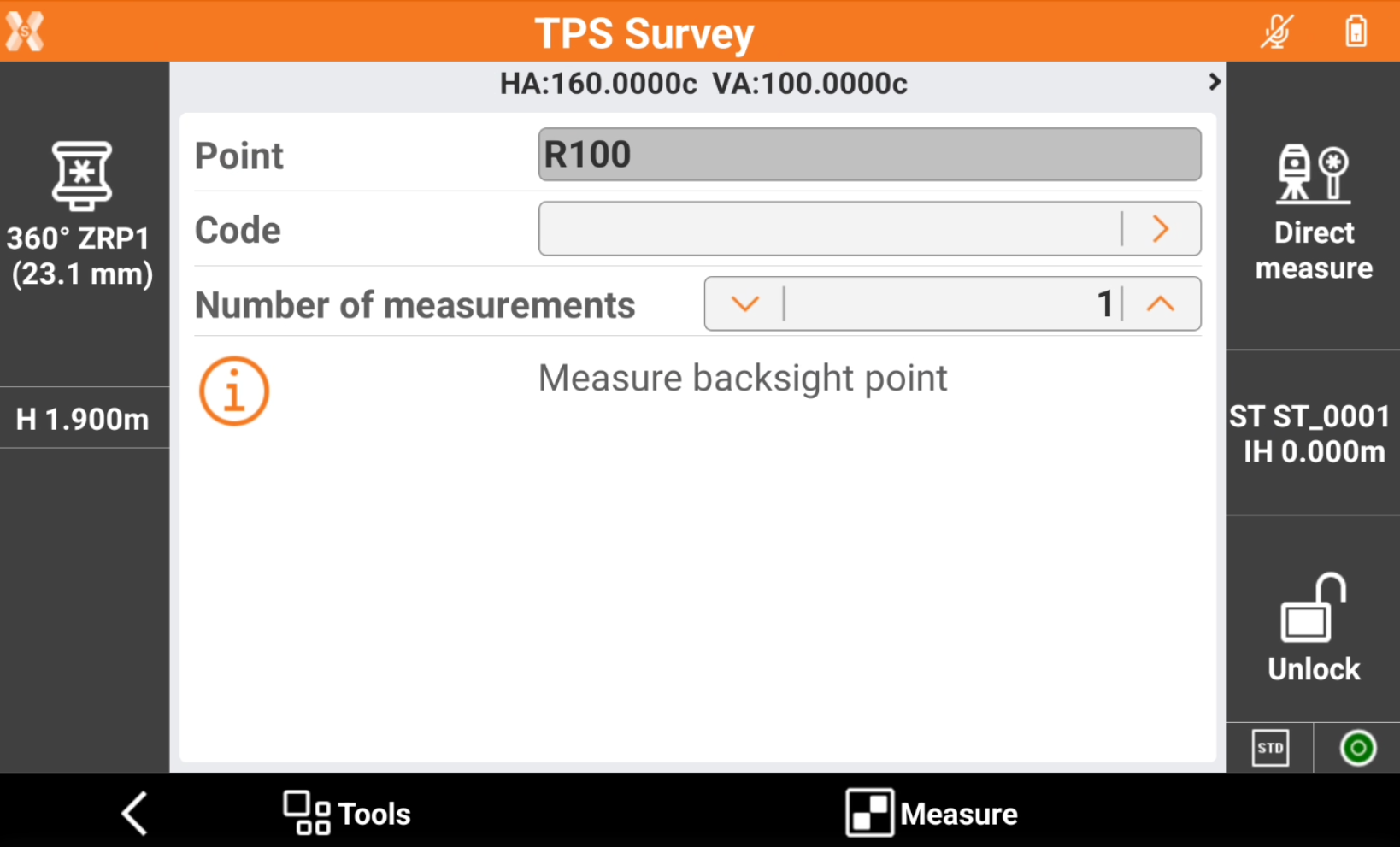

  • Press Next to measure the backsight point.



• Aim the point of orientation.

• Tap Measure.

• The calculated data and the differences for angle and distance are displayed.

• Tap Accept setup to confirm set data and complete procedure.
