Batter board setup

X-PAD Ultimate Survey 1.png + BUILD | X-PAD Ultimate Build 1.png

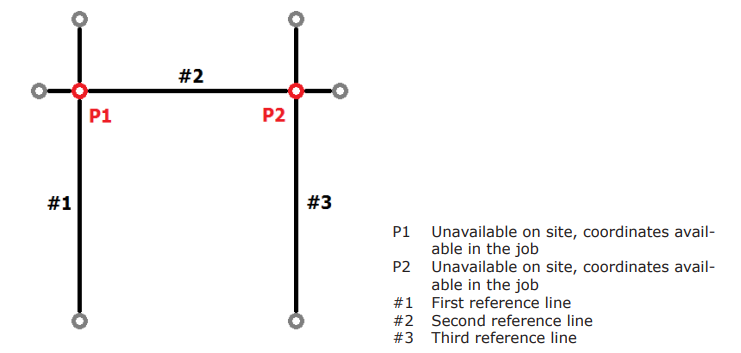

  • The position and orientation of the station are determined by measurements of three reference lines which, intersecting each other, determine the two postions corresponding to two reference point of the project.


  • Select NO. Station position has to be calculated.

  • Select Batter board.

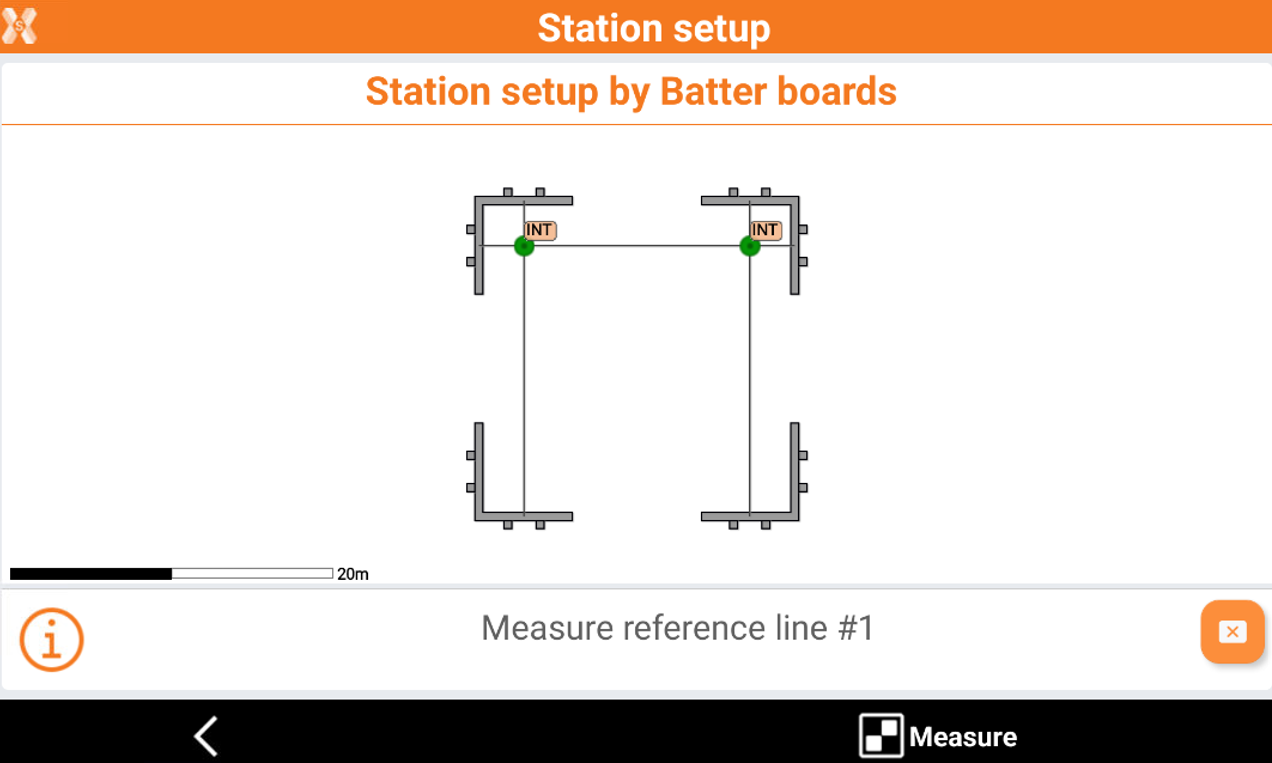

  • Measure the first reference axis, measuring two points on the axis.

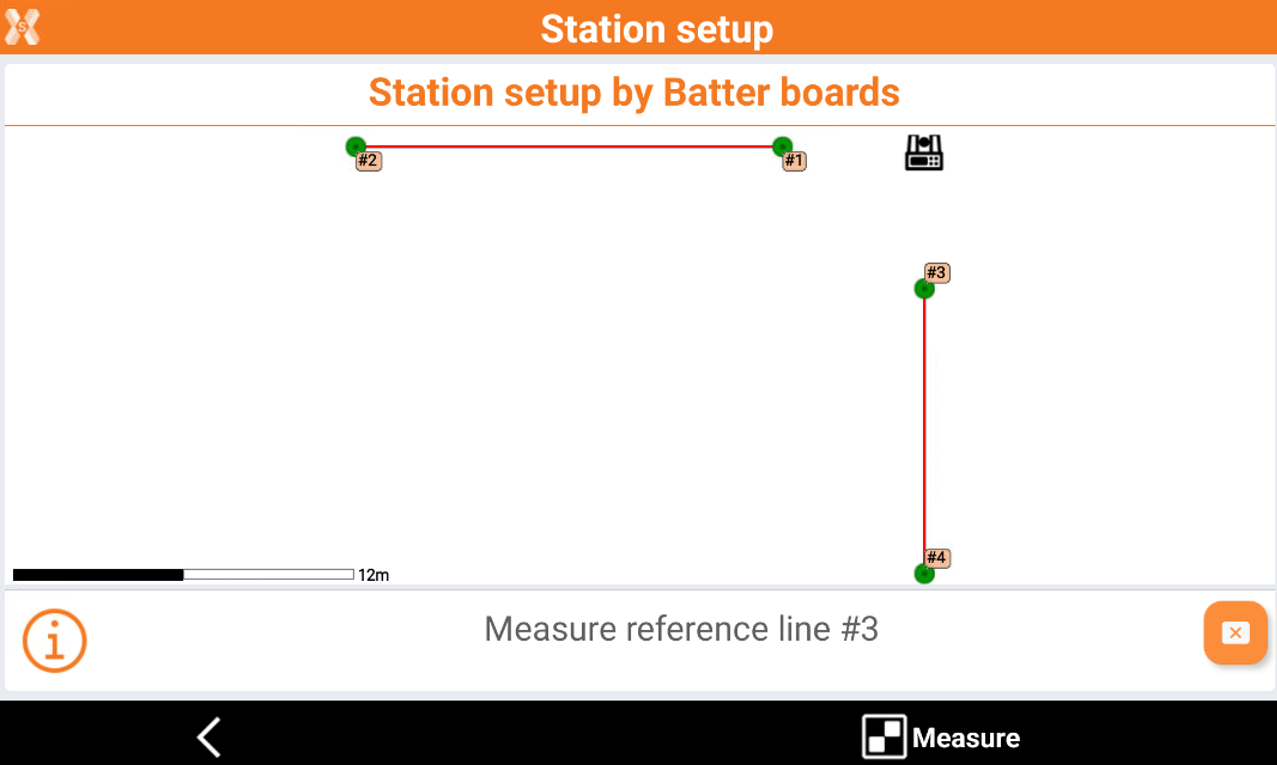

  • Continue measuring two points on the second reference axis and two points on the third reference axis.

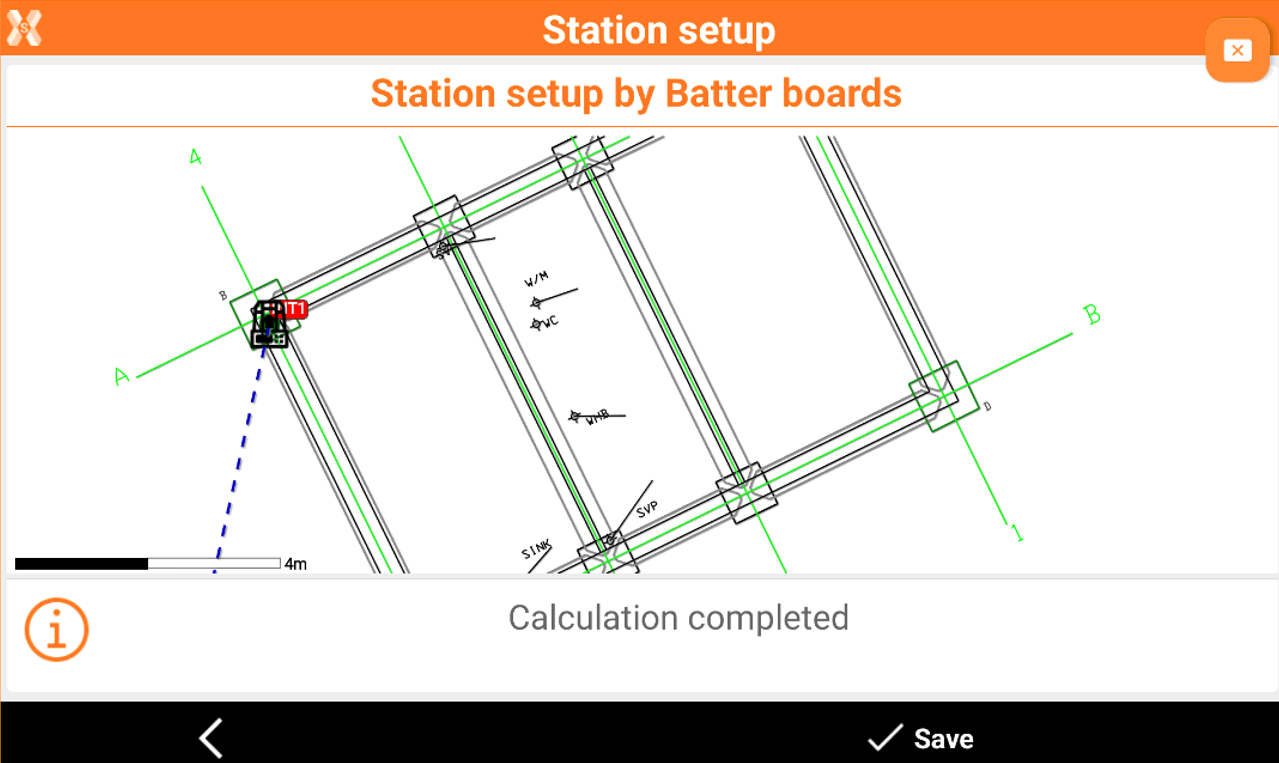

  • Select in CAD the points corresponding to the two intersection points P1 and P2.

  • Click Save to complete the setup.
