Coordinates

  • X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png | X-PAD Ultimate GO 2.png

  • The Coordinates page allows:

    • Setting the symbols to mark the abscissa, the ordinates and the elevations.

    • Setting the order of visualization and insertion of abscissa and ordinates.

    • Setting the direction of the ordinates. The default direction of the ordinates is toward North but in some countries it is inverted.

  • Click Settings.

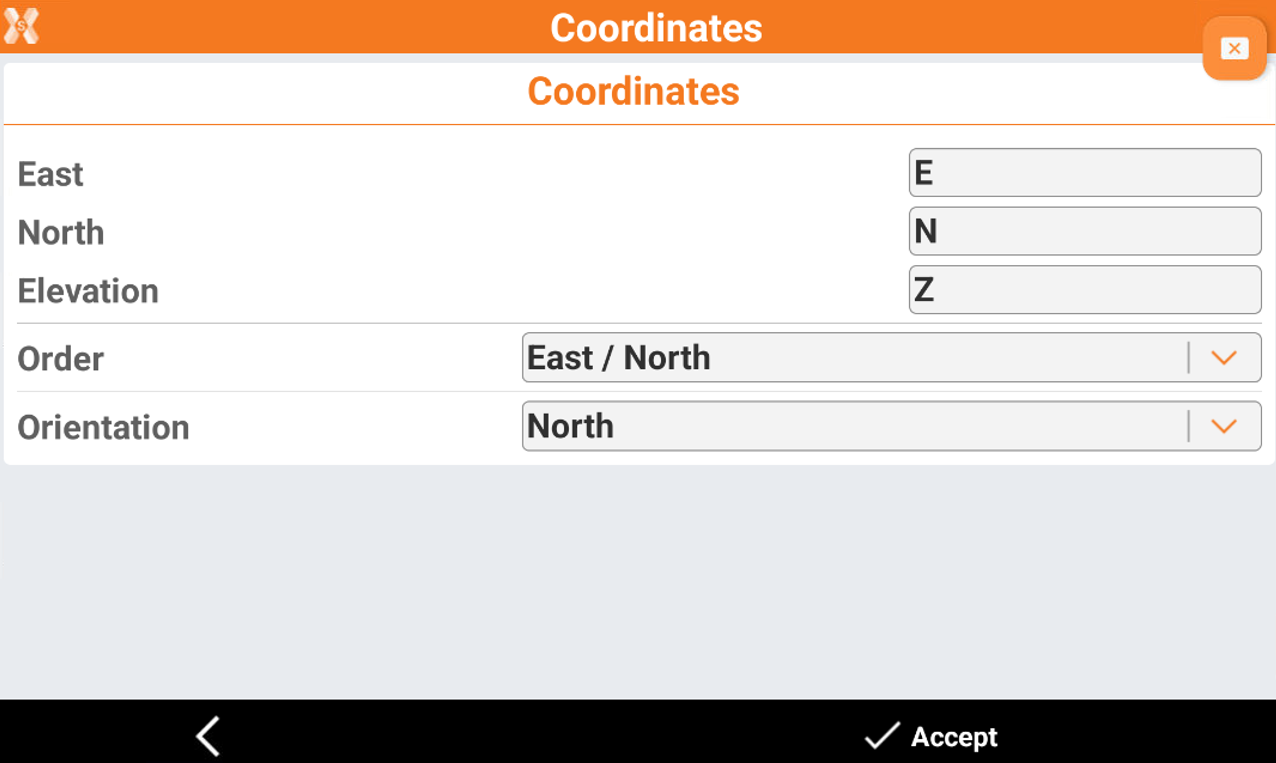

  • Click Coordinates.


    • East: the symbol to mark the abscissa.

    • North: the symbol to mark the ordinates.

    • Elevation: the symbol to mark the elevations.

    • Order: the order of visualization and insertion of abscissa and ordinates.

    • Orientation: the direction of the ordinates.
