Create surface from bathymetry

+ BATHYMETRY + SURFACE&VOLUME

• This function allows to create a three-dimensional triangle surface using the points of bathymetric sessions, performed using the Bathymetry module.

• Click Job.

• Click Points/Measurements/Codes.

• Open the Measurements tab.

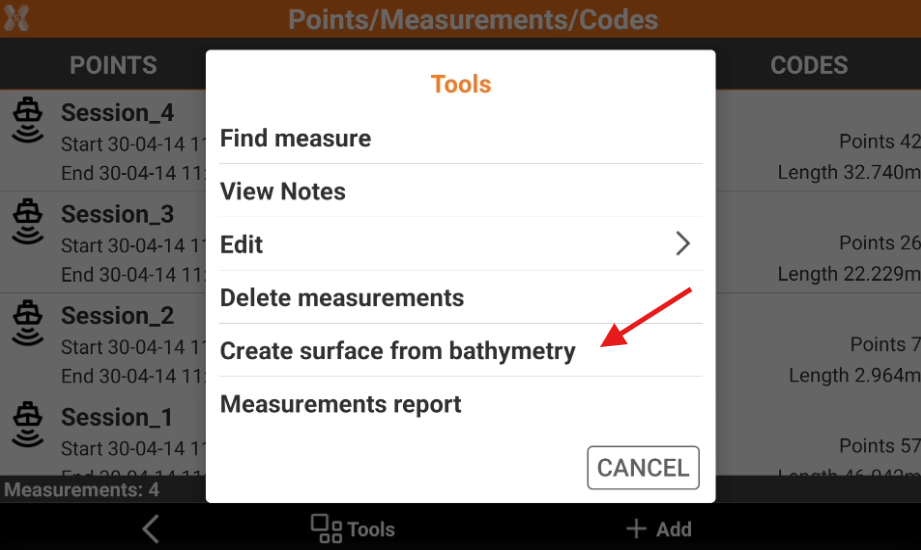

• Click Tools to open the list of available tools.

• Click Create surface from bathymetry.

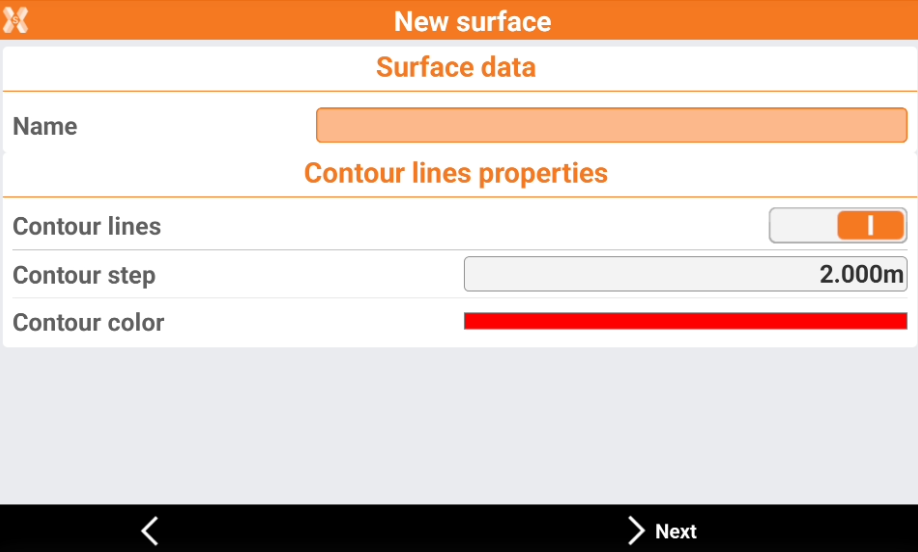

• This opens a new page.



  • Name: the name of the surface.

  • Contour lines: enables/disables the creation of contour lines.

  • Contour step: the step between the contour lines.

  • Contour color: the color of the contour lines.

• Click Next.

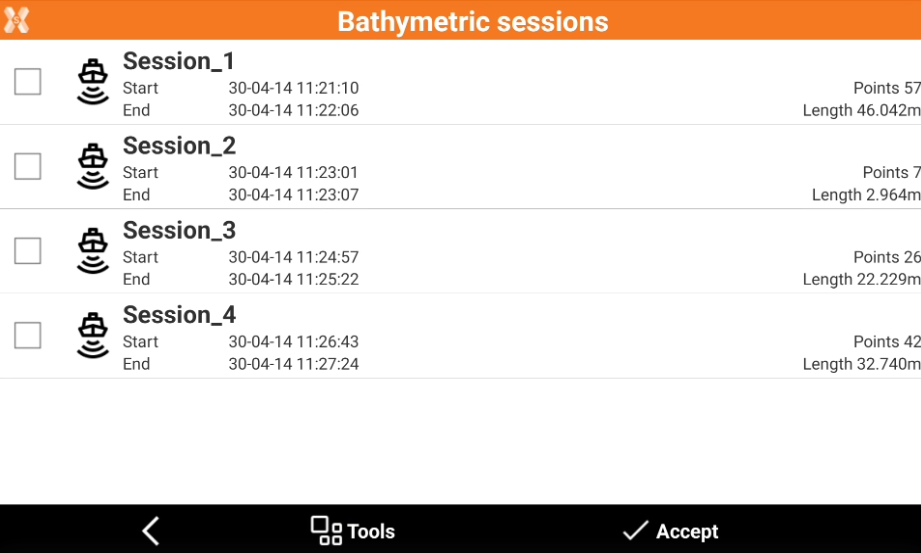

• Select the sessions to use.

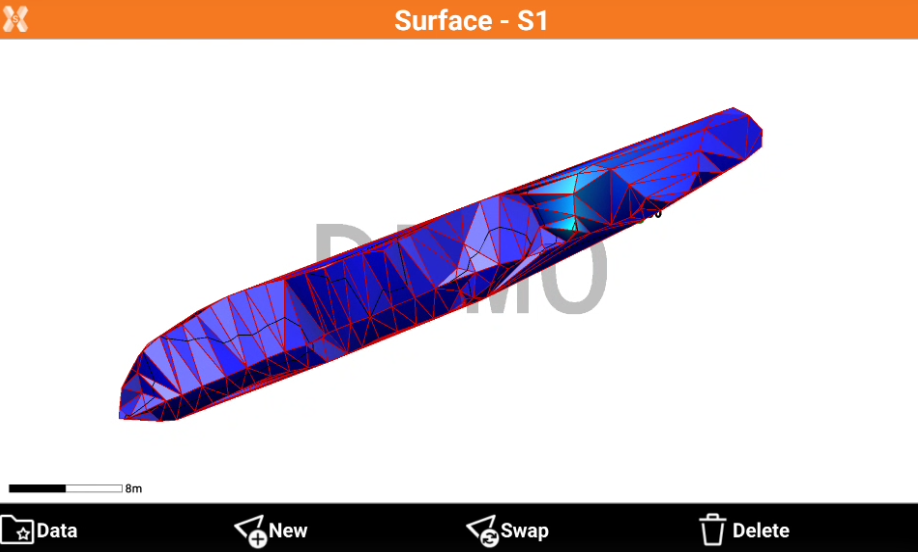

• Click Accept to create the surface. The surface is visible in CAD or in the Surfaces page and can be exported from the software.
