Distance between point and object

| |

• The Distance between point and object command provides information about the distance between a point and an object.

• Select Info.

• Select Dist.Object.

• Select the reference point in CAD.

• Select the object to which to calculate distance.

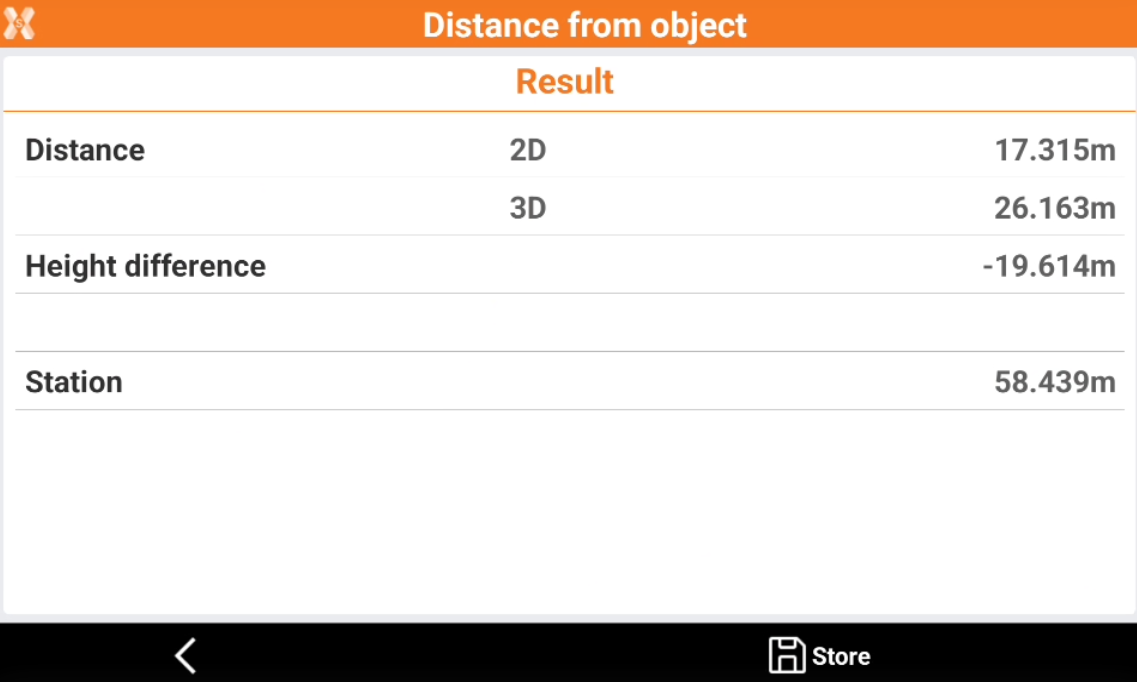

• The software displays:



  • Distance from the point to the object.

  • Chainage of the projection of the point to the object.

• Click Store to create a point on projection of the point on the object.
