  • CAD Info commands are used to obtain different information from drawing and from present objects and generate reports.

  • Open CAD.

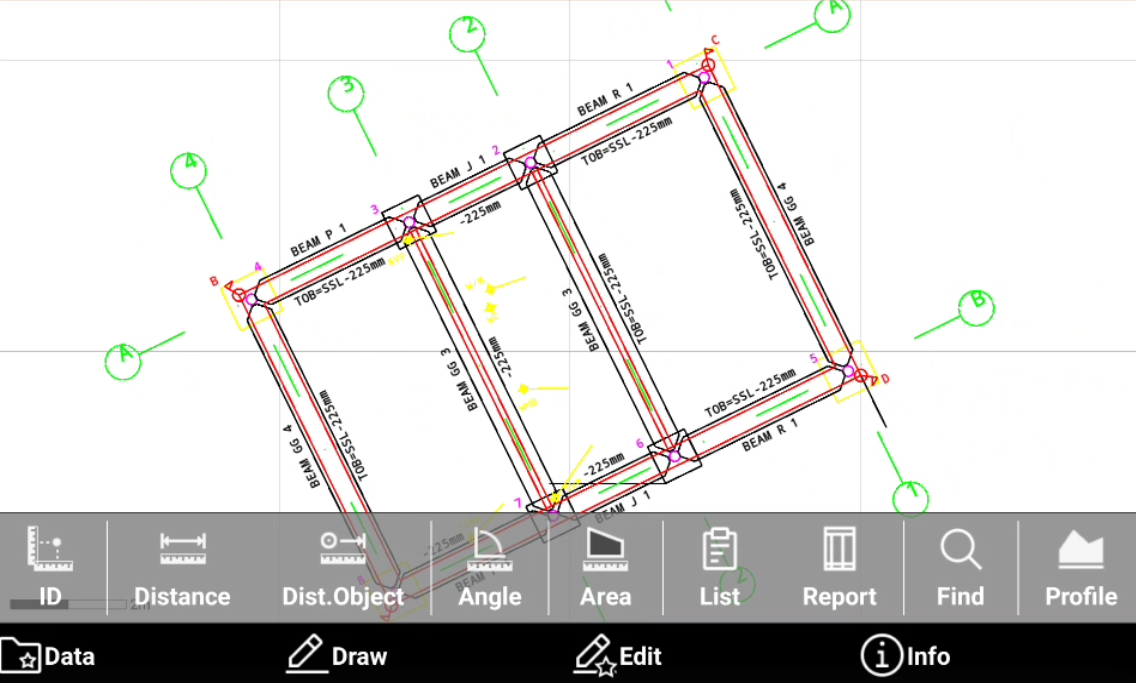

  • Click Info to open the information toolbar.


    • Coordinate of a point: provides information about the selected position.

    • Distance info: provides information about the distance between two points.

    • Distance between point and object: provides information about the distance between a point and an object.

    • Angle: provides information about the angle between three points.

    • Area: provides information about the area of a polygon formed by a sequence of points.

    • List: provides information about a selected object.

    • CAD report: creates a exportable document that has information about selected objects including information about the length, the area and the number of vertices.

    • Find: brings a topographic point into the center of the graphic window.

    • Profile: displays the longitudinal profile of the selected polyline including additional information about the polyline.
