External reference management

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png

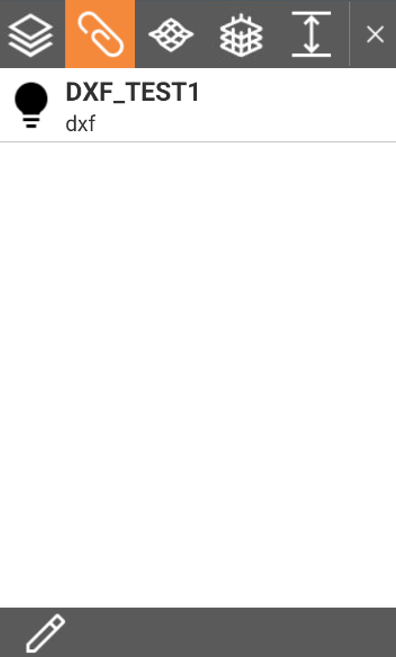

  • The Project Manager external reference panel allows to manage the external references linked to the project.

  • The panel allows to make them enabled/disabled.

  • Open the CAD Project Manager.

  • Click External reference image-20250514-143224.png .


Making an external reference visible or invisible

  • Visible external references are marked by image-20250514-143431.png.

  • Invisible external references are marked by image-20250514-143451.png.

  • Click the symbol to change the visibility of an external reference.

Manage and link external references

  • To open the External reference page and link new external files click image-20250514-143654.png .

  • See External references for more information on external documents.
