Flic buttons

|

• Flic buttons (Flic button) is a physical accessory that can be purchased and used in combination with X-PAD software. Flic buttons pairs to the controller through Bluetooth and that can be used to start performing some operations.

• Click Settings.

• Click Flic buttons.

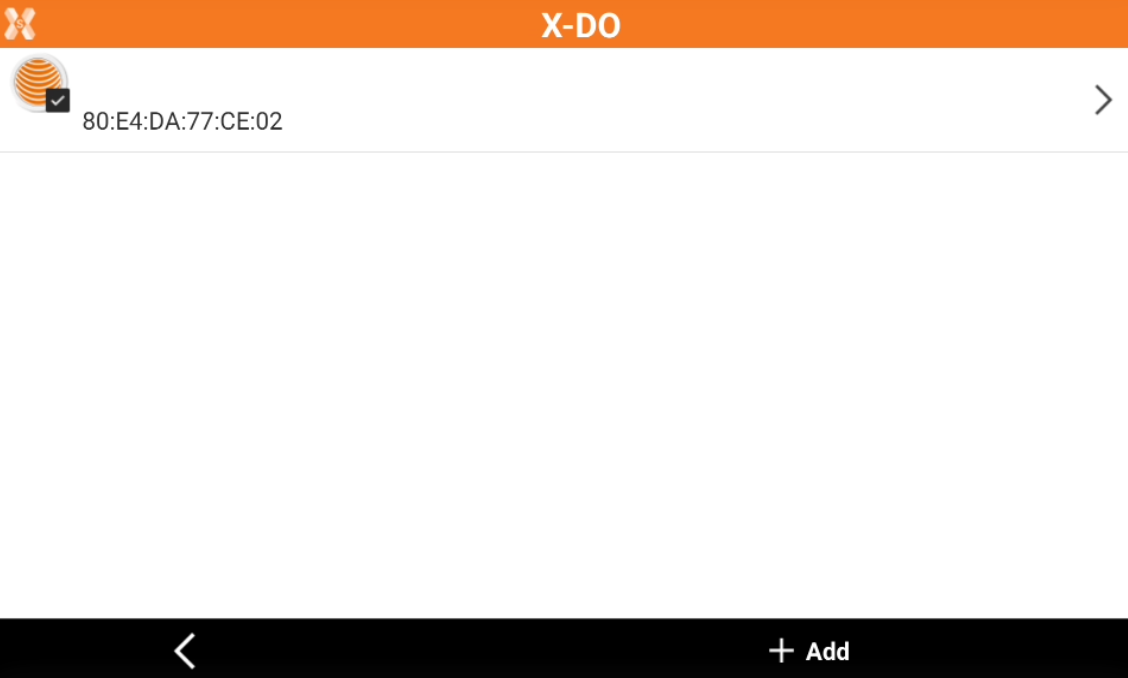

• Click Add to pair a new button.

• Hold and press the button for 10 seconds until it is paired with Android.

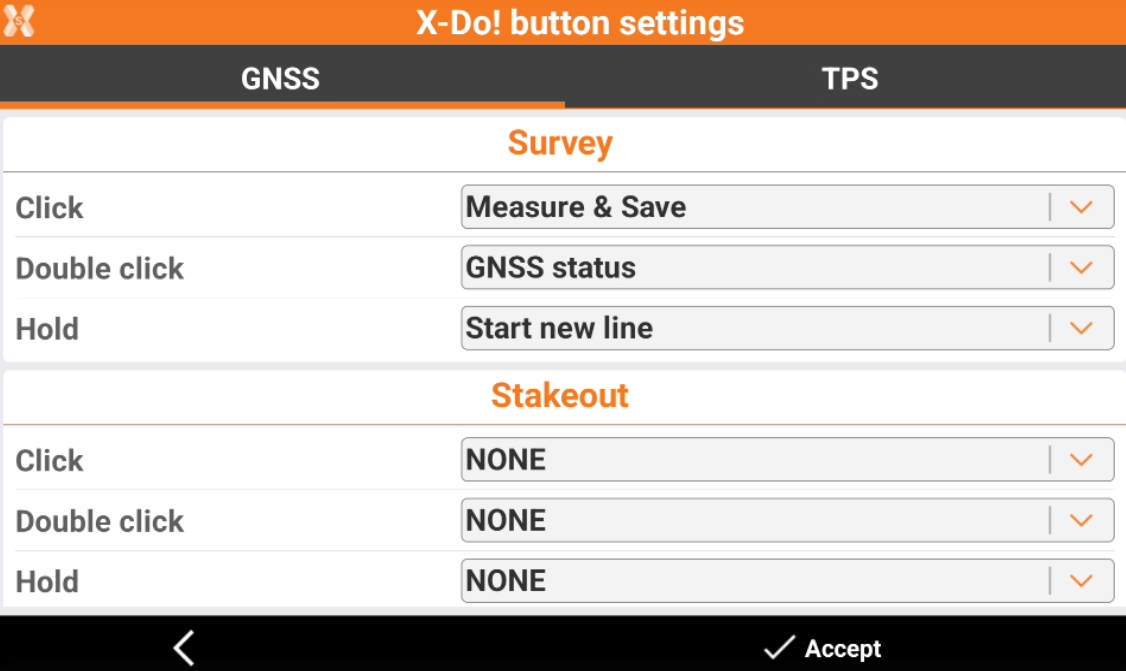

• To configure the actions, select a button from the list of paired buttons, and click Settings.

• The available actions are:

  • Click.

  • Double-click.

  • Hold.

• It is possible to assign to each action a specific command of management of the GNSS and TPS survey and stakeout with GNSS and TPS.



• During stakeout and survey jobs, click, double click or hold the button to start the selected action.
