Generate a volume calculation report

+ SURFACE&VOLUME | + SURFACE&VOLUME | + SURFACE&VOLUME

• To generate a volume calculation report, from the Surfaces and Volumes page click Volumes.

The information are also available at the end of volume calculation clicking Report.

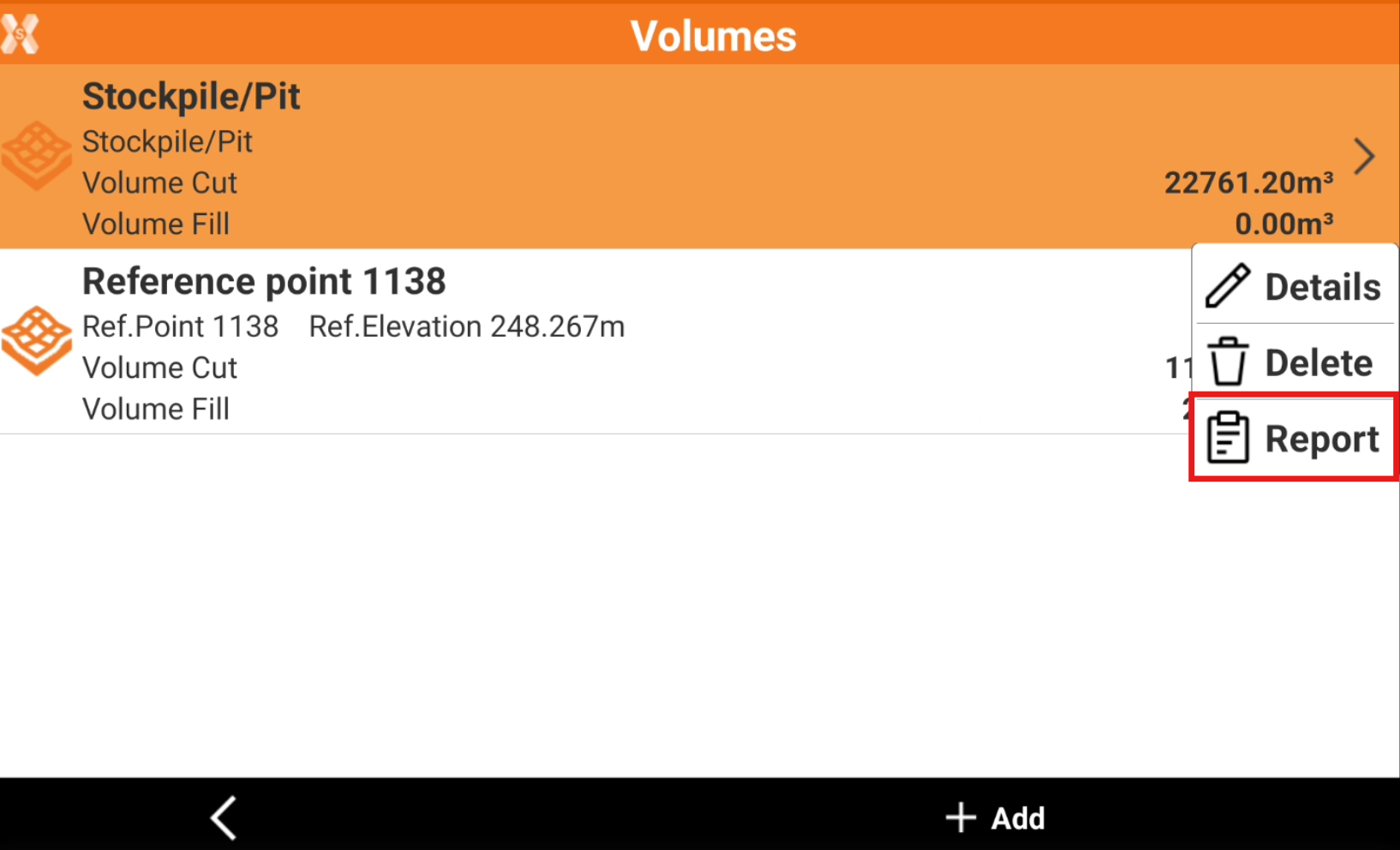

• Click a volume calculation and click Report.

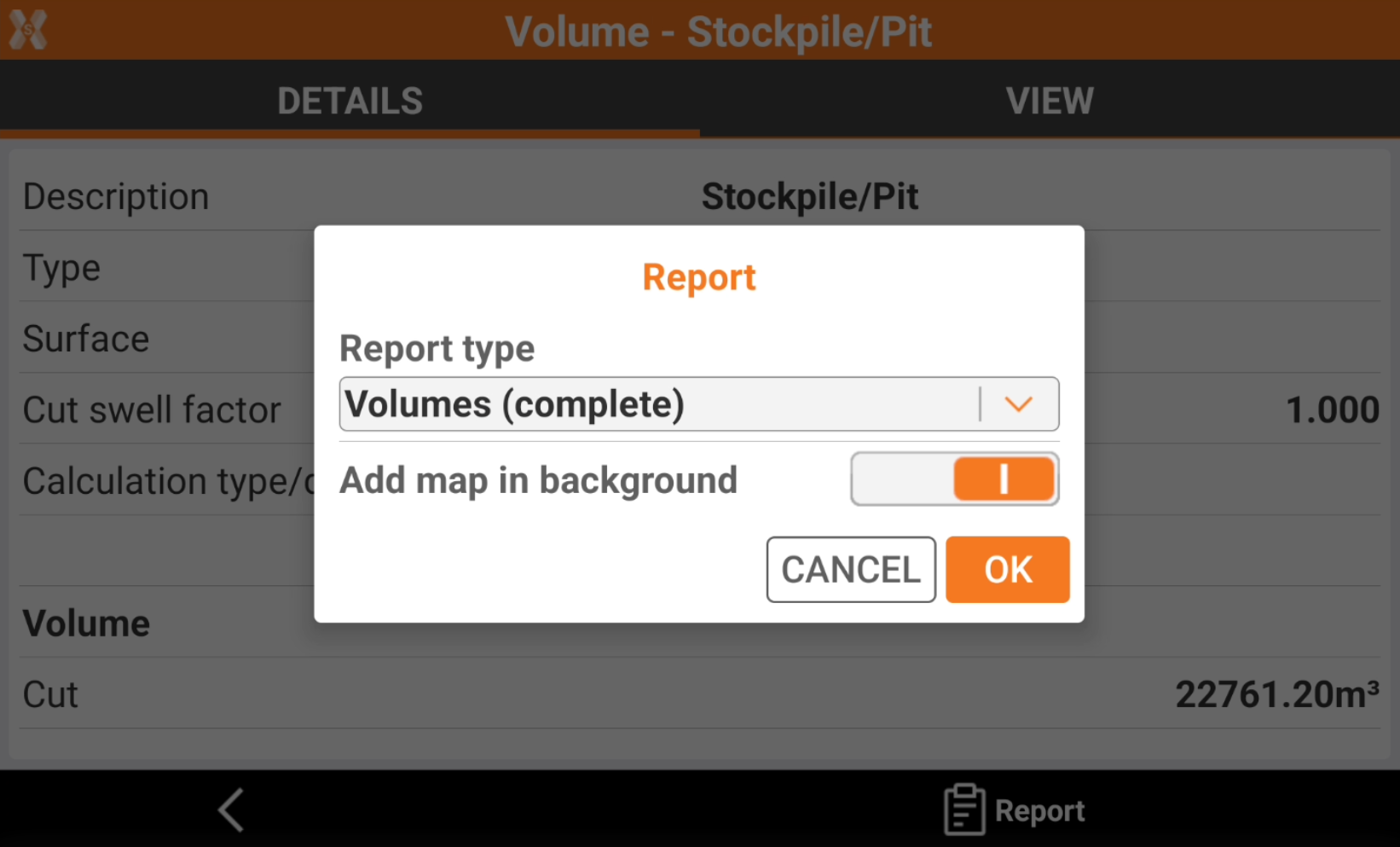

• Select the report export options.



  • Report type:

    • Summary: includes the main volume calculation information.

    • Complete: includes the detailed information for each triangle.

  • Add map in background: enables the background map in the volume calculation view in report.

• Click Ok.

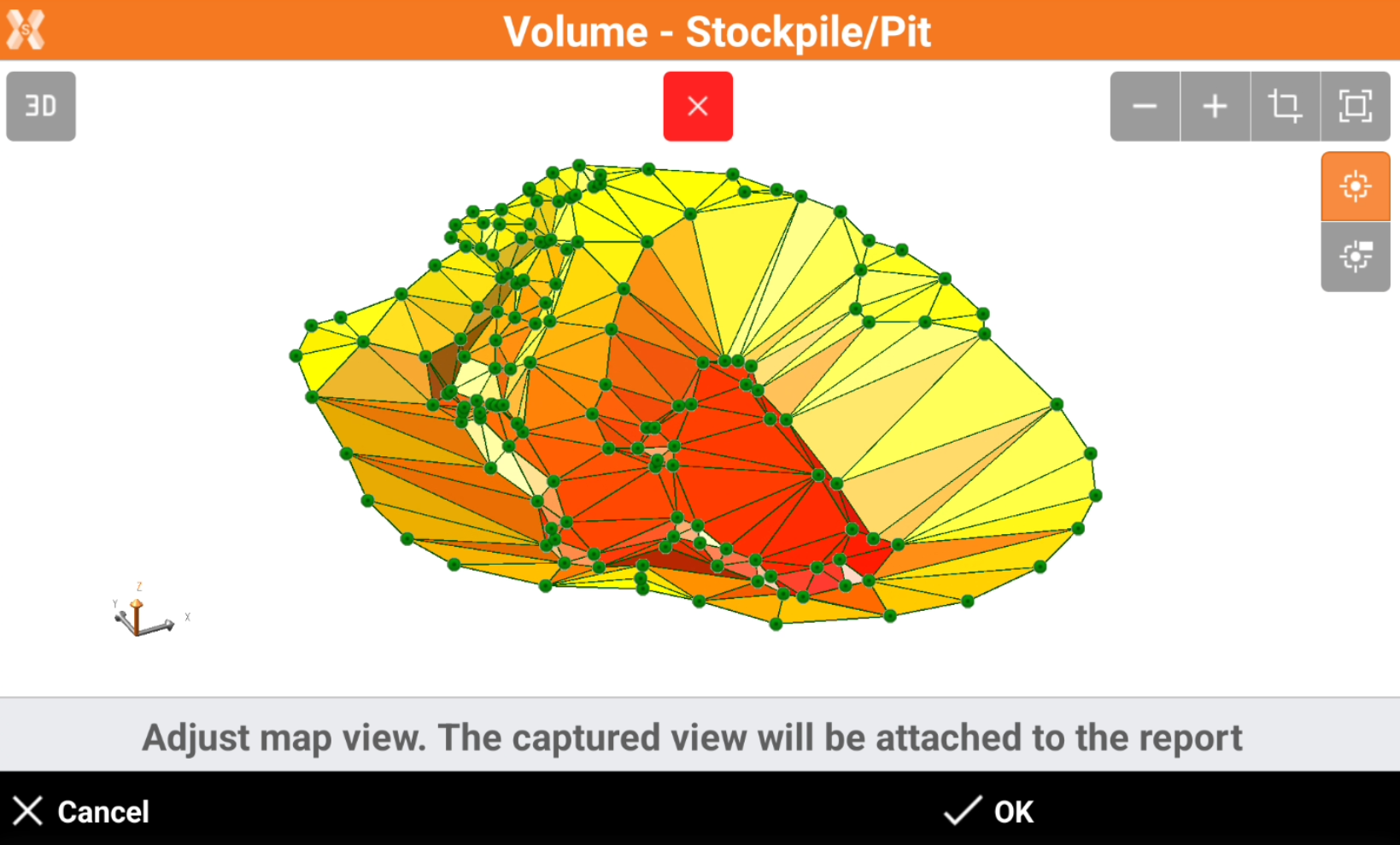

• The following page allows to adjust the map view. The captured view will be attached to the report.



• Use the CAD commands to adjust the view.

• When done click OK to create the report.

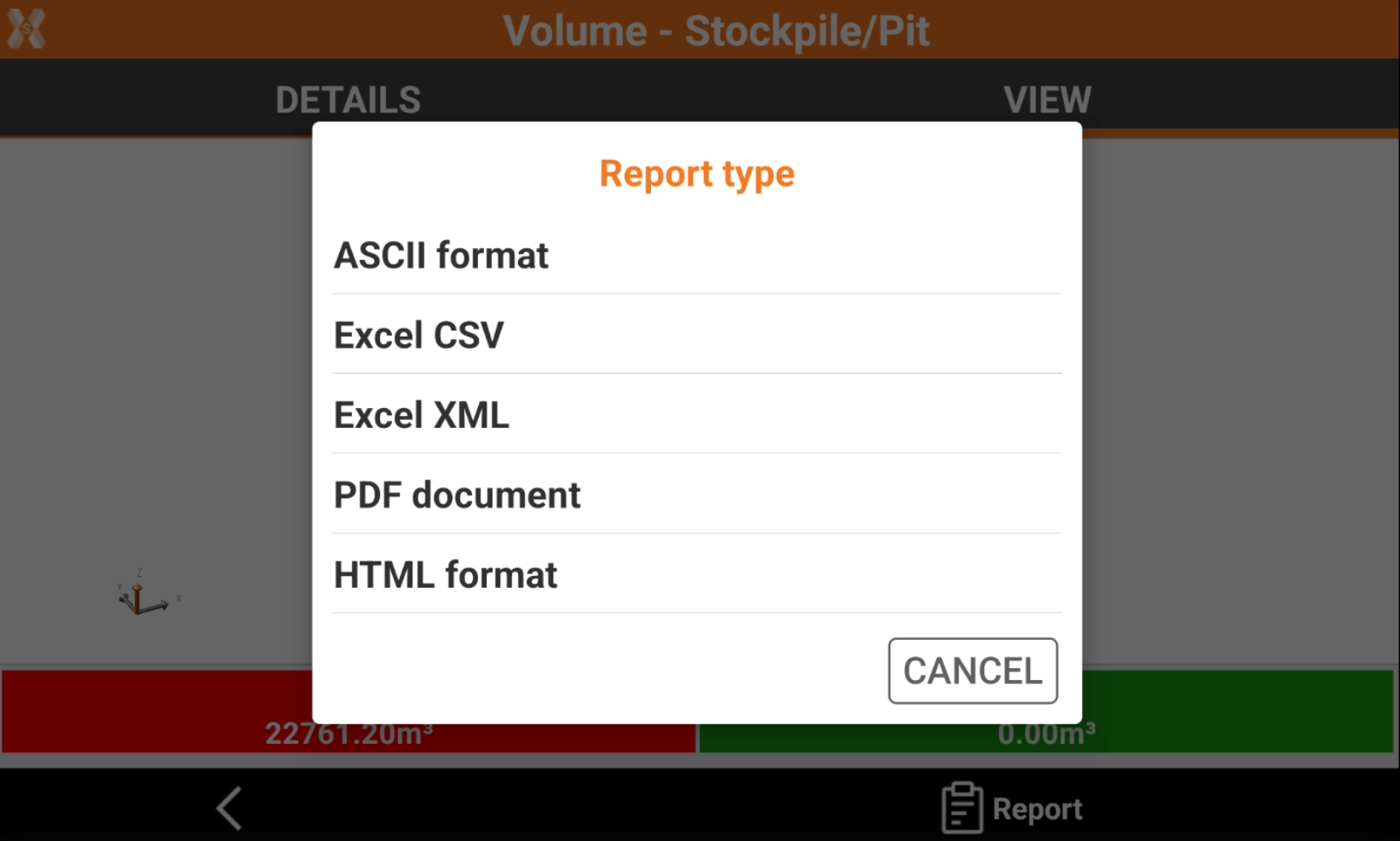

• Select the format to export and save the file.

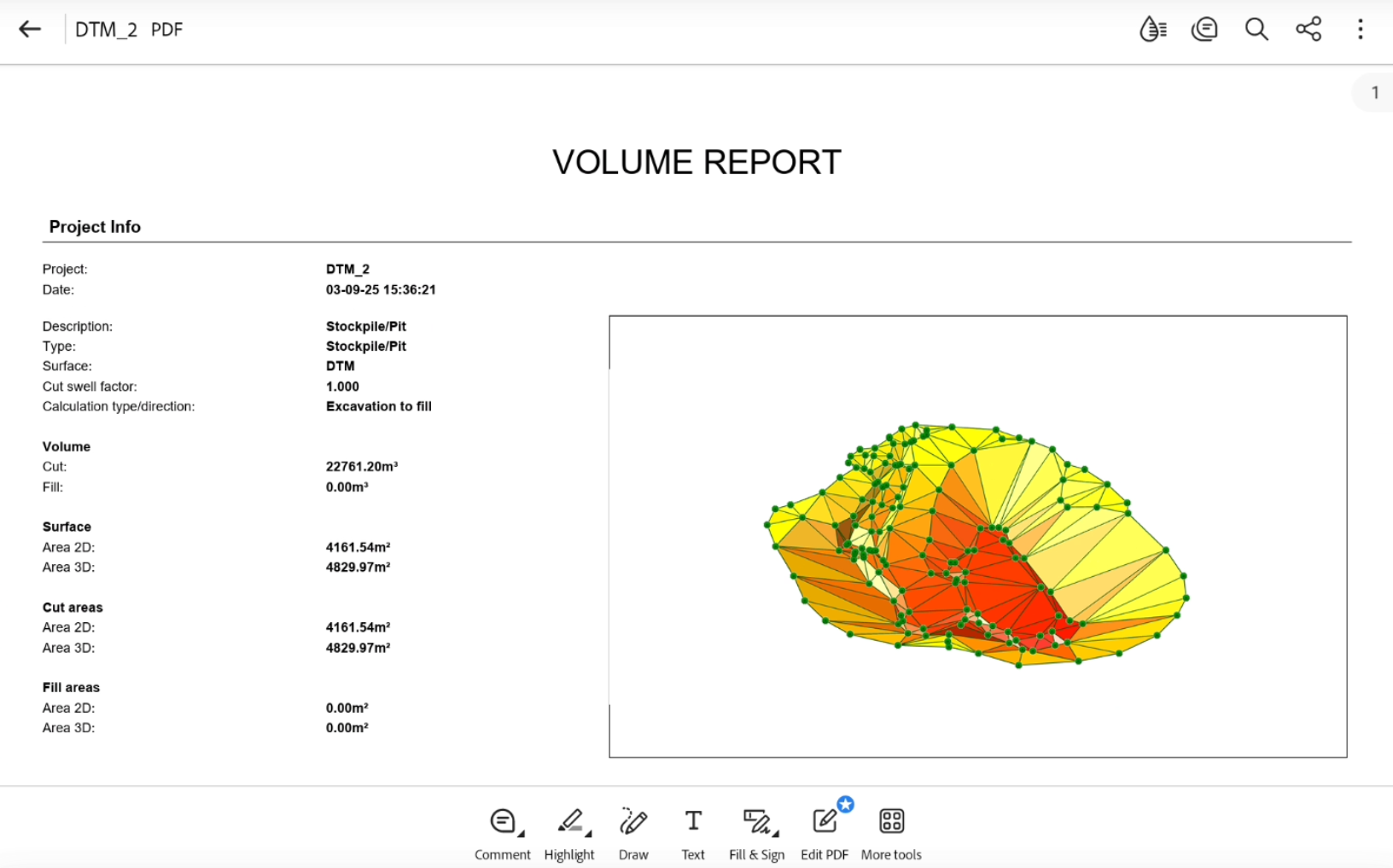

• The report is saved in the selected folder.
