GPS Status panel

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png | X-PAD Ultimate GO 2.png

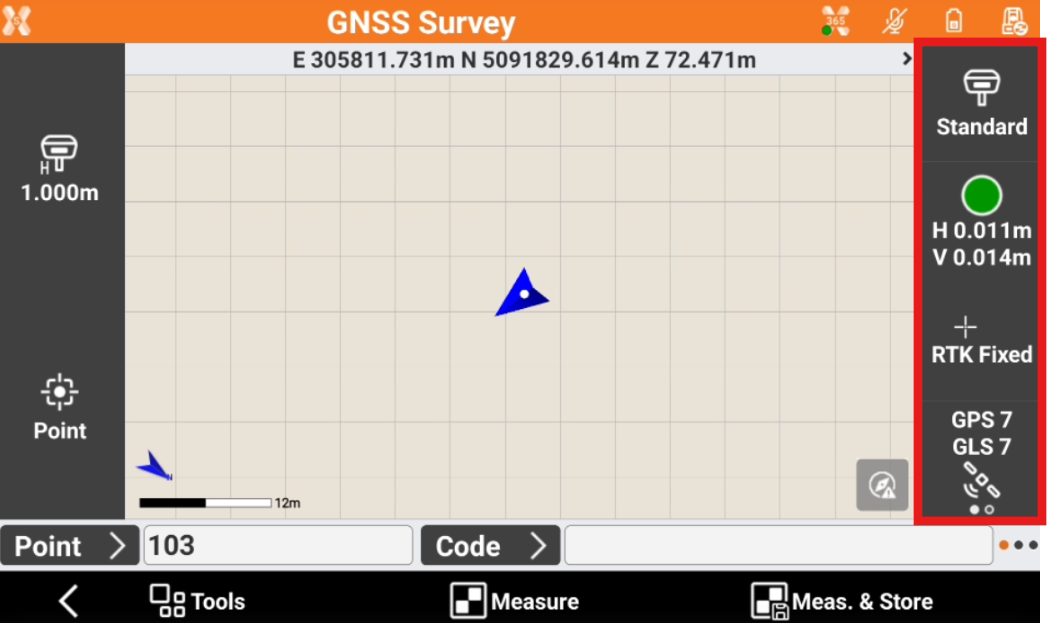

All GNSS survey and stakeout functions have a panel that visualizes the main GNSS Status information.
Click on the panel to open the GPS Status page.

	Click to open the GNSS Measure mode page.
	Current precision for coordinates (H) and for elevation (V). If icon is green, precision level set in the survey parameters has been reached. Epochs are acquired. If icon is red, precision level set in the survey parameters has not been reached.
	RTK quality of position: RTK Extra-Safe / RTK SureFix: available for some GNSS receiver models. The receiver gets corrections from a source and has fixed the ambiguities in RTK Extra-Safe / RTK SureFix. RTK Fixed: the receiver gets corrections from a source and has fixed the ambiguities with maximum precision. Quick-Fix: available for some GNSS receiver models. The receiver has fixed the ambiguities but has not reached the maximum precision level yet. RTK Float: the receiver gets corrections from a source but it has not yet fixed ambiguities. DGPS: the receiver gets differential corrections in DGPS mode. Autonomous: the receiver gets positions without receiving corrections from any source in minimum precision. PPP-Fixed: the receiver is receiving corrections using PPP service and ambiguity is fixed. PPP-Float: the receiver is receiving corrections using PPP service and ambiguity is still not fixed.
	Correction status. If the icon is blinking, the corrections are received. If the icon is not blinking, the corrections are not received.
	Satellite/DOP status. Shows the number of tracked satellites and the DOP. Click the icon to change the view between satellites and DOP.
