GPS Measure mode

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png | X-PAD Ultimate GO 2.png

  • The Measure mode allows to edit the type of measurements.

  • To open the Measure mode page click on the corresponding icon.

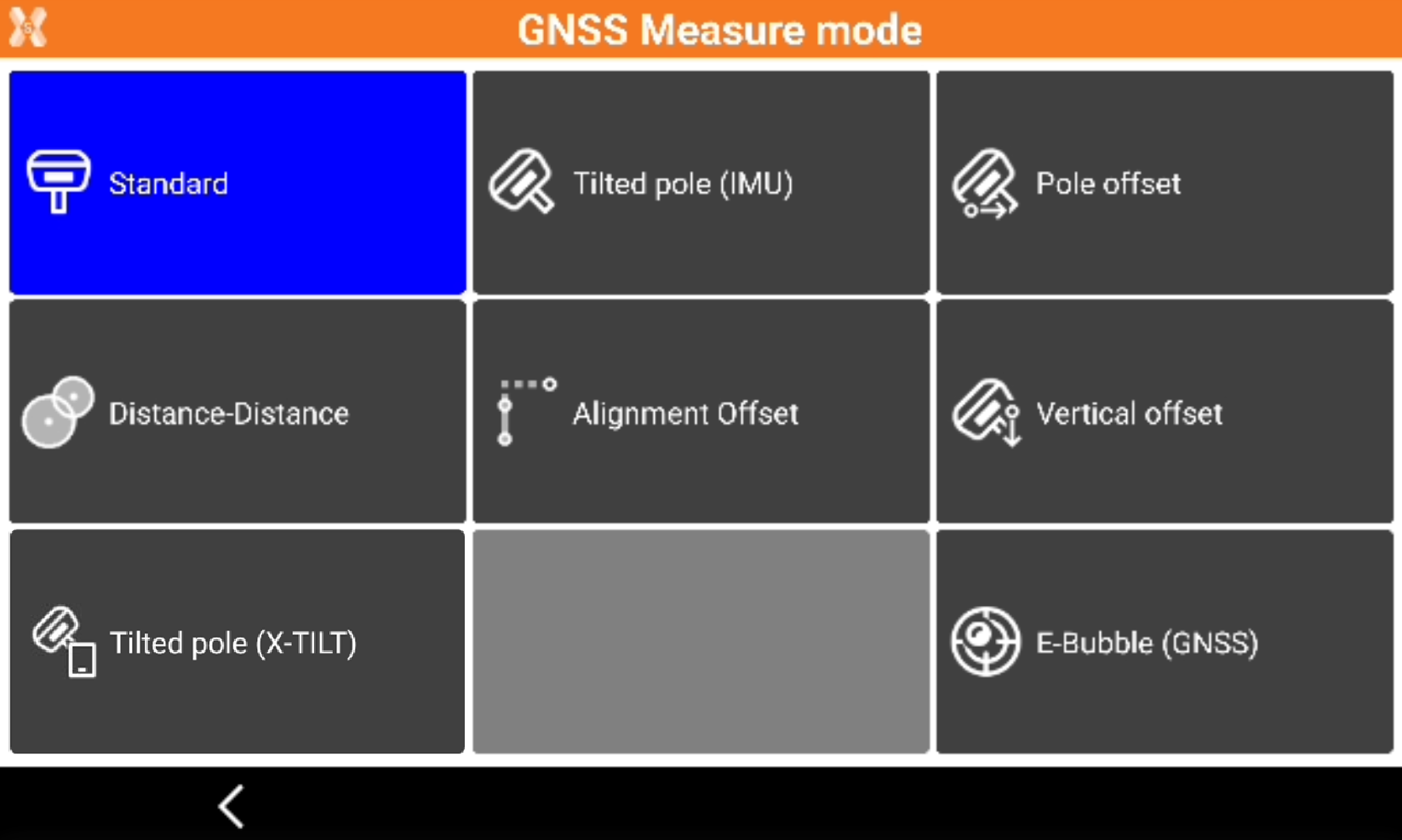

  • This open the Measure mode page.


    • Standard: standard measurement with GNSS pole vertical.

    • Tilted pole (IMU): enables the GNSS receiver IMU to measure points with the pole tilted. Available for GNSS receivers with IMU sensor.

    • Pole offset: calculates the position of an hidden point by a distance from a measurement with pole tilted in the distance direction. Available for GNSS receivers with IMU sensor.

    • Distance-Distance: calculates the position of a hidden point or multiple points by two distances to two reference points.

    • Alignment Offset: calculates the position of a hidden point by an alignment defined by two reference points.

    • Vertical offset: calculates the position of an hidden point by applying a vertical offset from the current measure.

    • Tilted pole (X-TILT): using the sensors in the controller, allows to measure hidden points with pole tilted. Available for GNSS receivers without IMU sensor.

    • E-Bubble (X-TILT): using the sensors in the controller, allows to show on the display an electronic bubble.
