Intersection
|
|
Calculates coordinates of a point on the intersection between straight lines.
Click COGO.

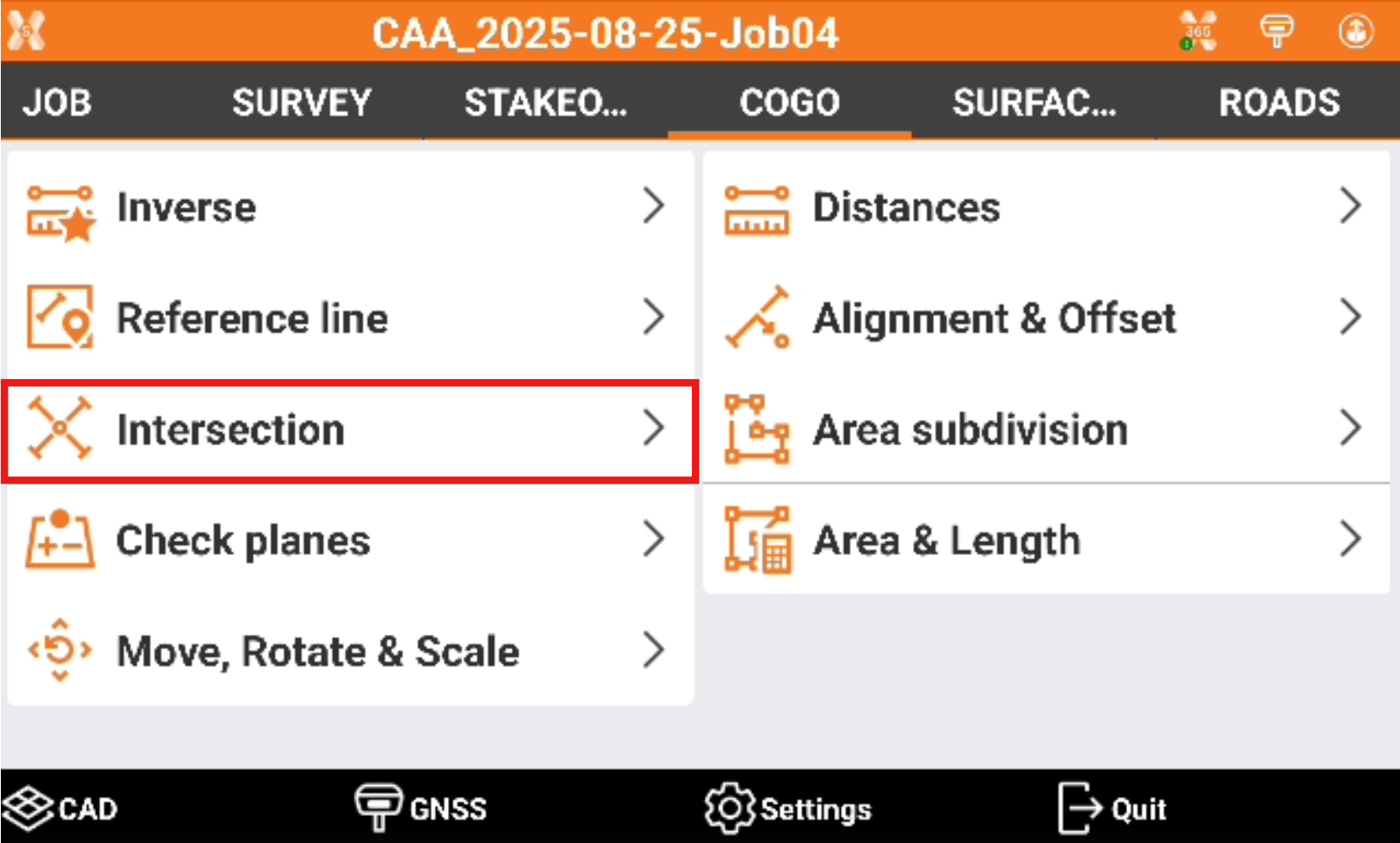

Click Intersection.
Select the intersection method.
Double distance: the intersection position is calculated based on two distances referring to two reference points.
Distance and Azimuth: the intersection position is calculated based on the distance of a reference point along a straight line and a second reference point.
Double Azimuth: the intersection position is calculated on the intersection of two straight lines and two reference points.
4 points: the intersection position is calculated on the intersection of two straight lines and four reference points.
Double distance
The intersection position is calculated based on two distances referring to two reference points.

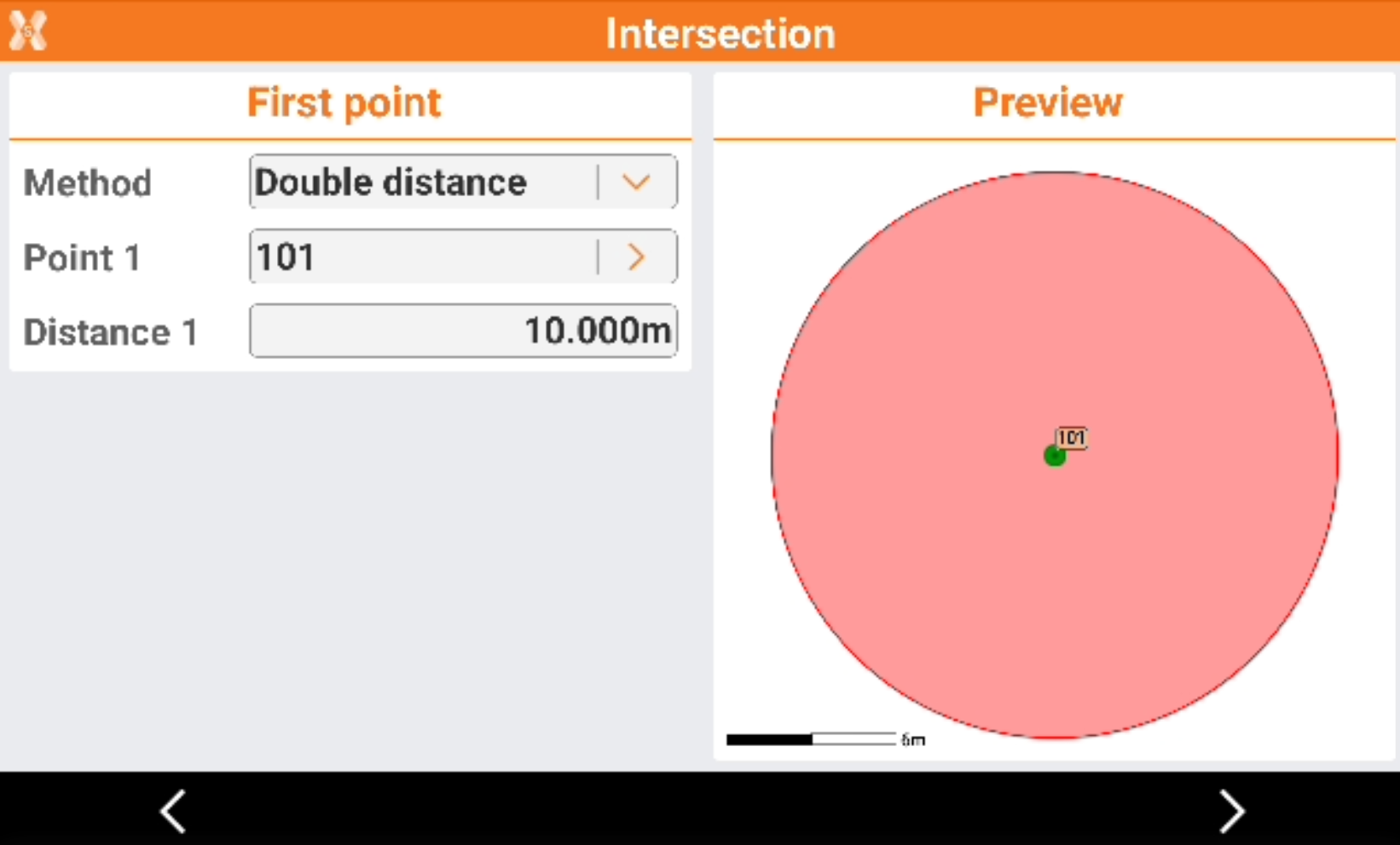

Select the first point and the distance from first point.

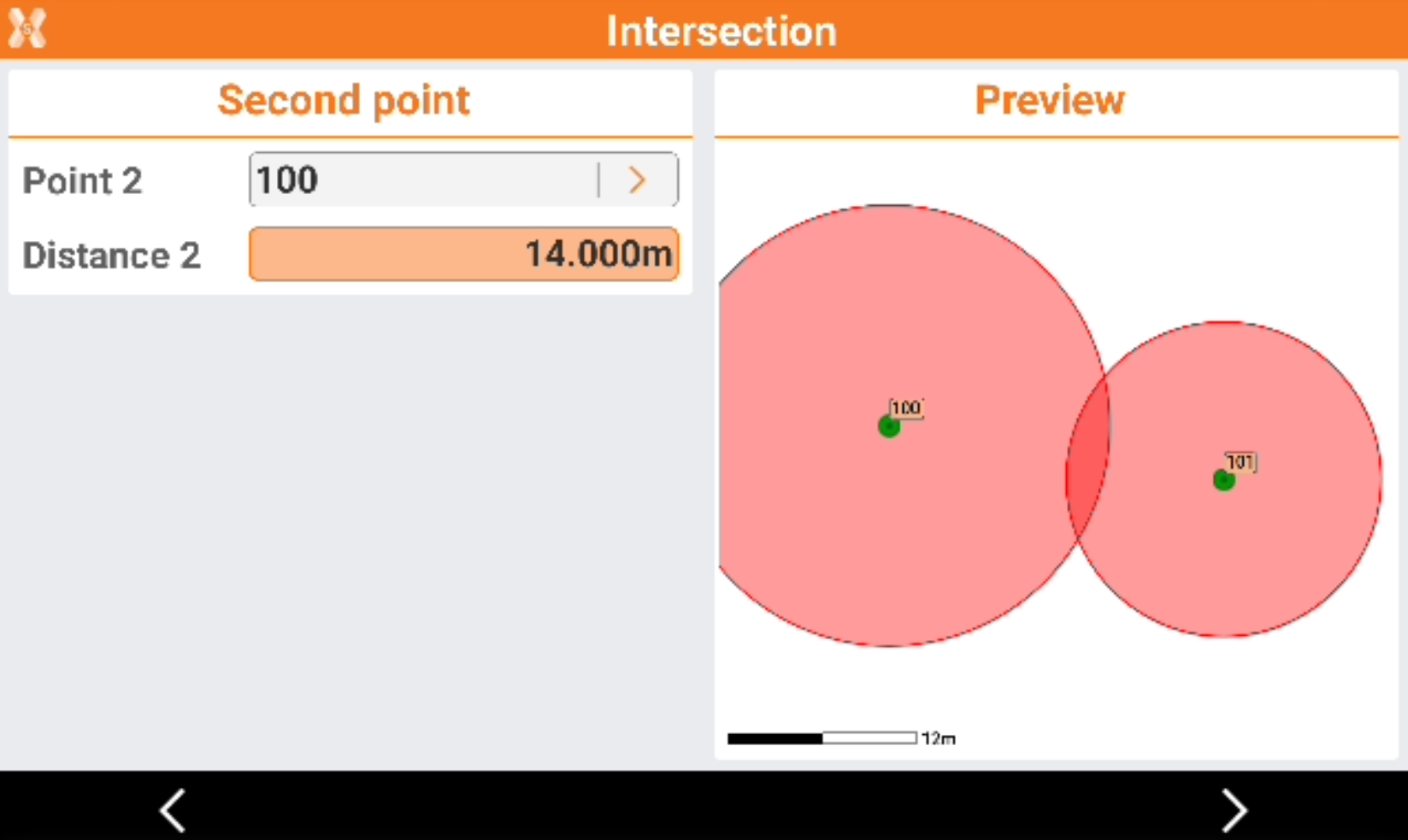

Select the second point and the distance from second point.

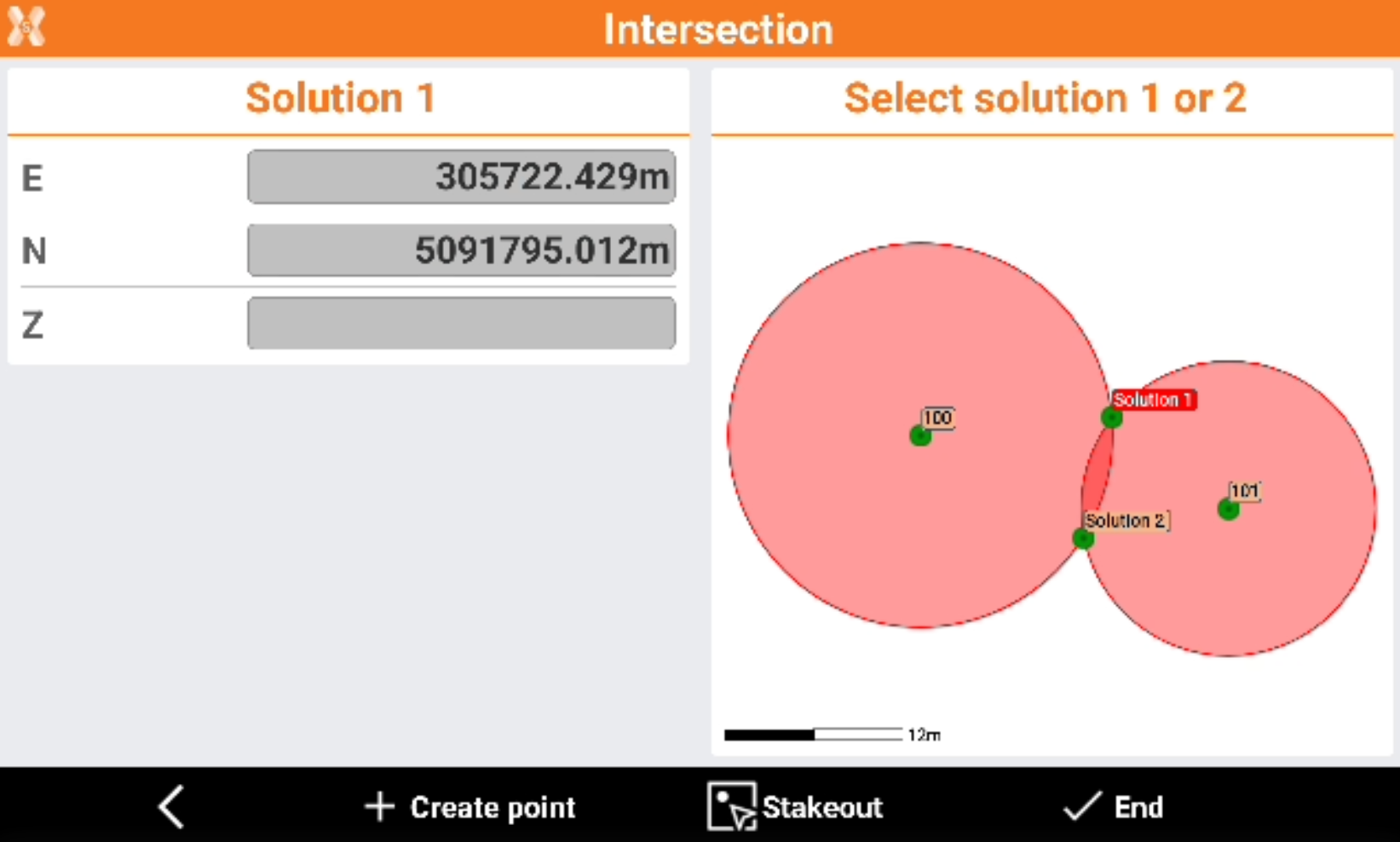

The two possible solutions are displayed. Select the desired solution in the graphic window.
Click Create point to activate the creation of the calculated point.
Click Stakeout to activate the stakeout procedure for the calculated point.
Distance and azimuth
The intersection position is calculated based on the distance of a reference point along a straight line and a second reference point.
Select the first point and the distance from first point.

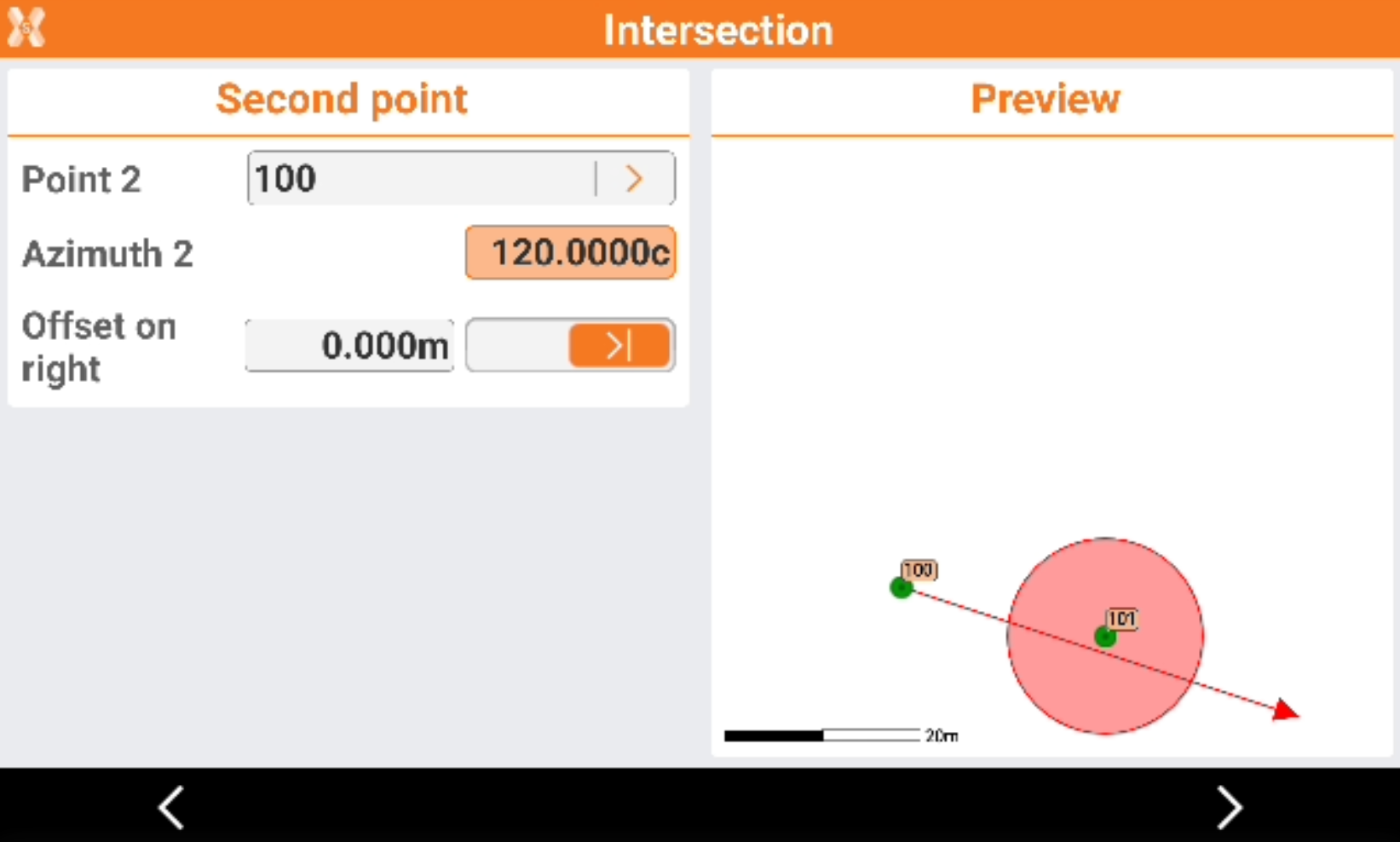

Select the second point and azimuth and offset from the second point.

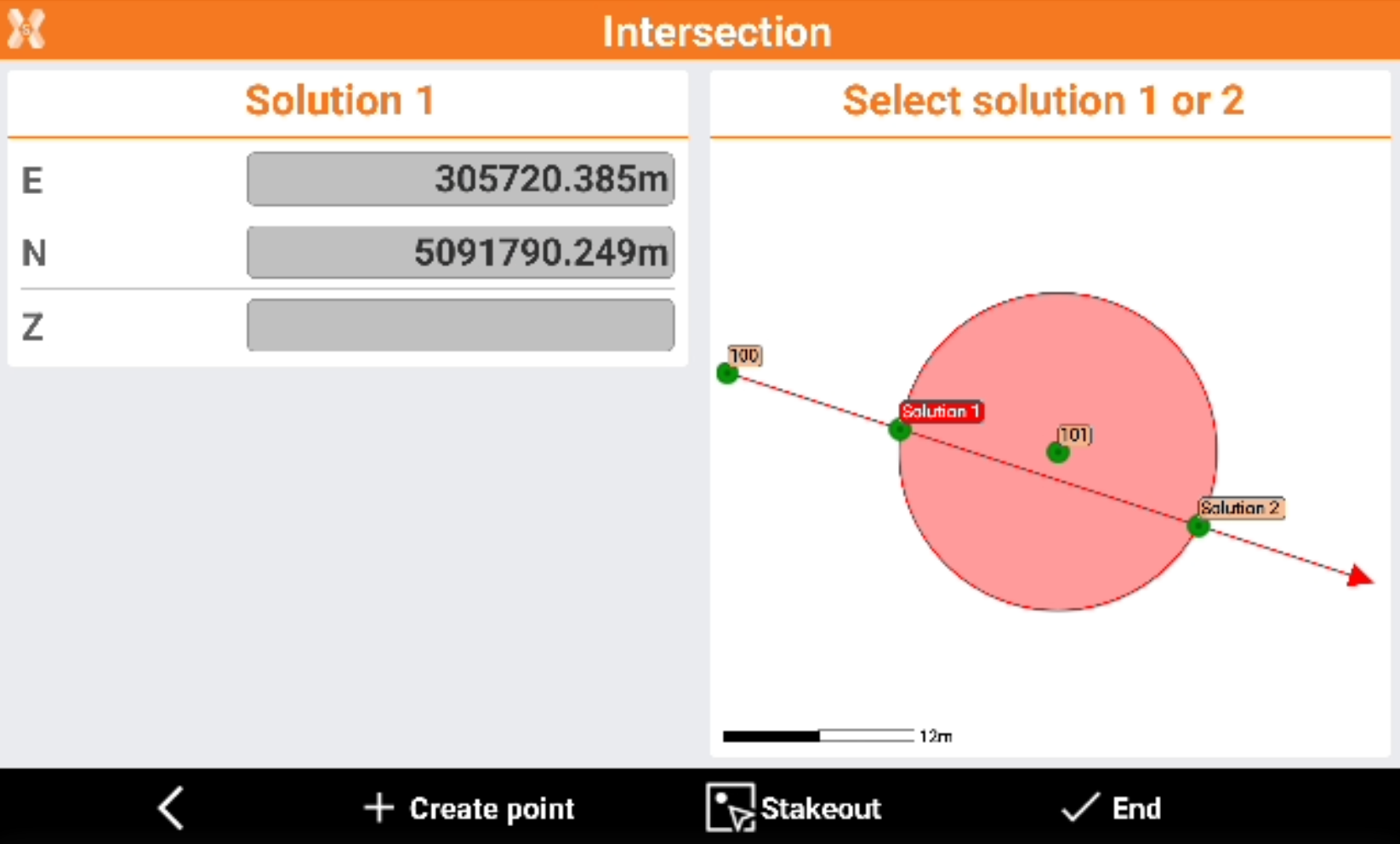

The two possible solutions are displayed. Select the desired solution in the graphic window.
Click Create point to activate the creation of the calculated point.
Click Stakeout to activate the stakeout procedure for the calculated point.
Double azimuth
The intersection position is calculated on the intersection of two straight lines and two reference points.

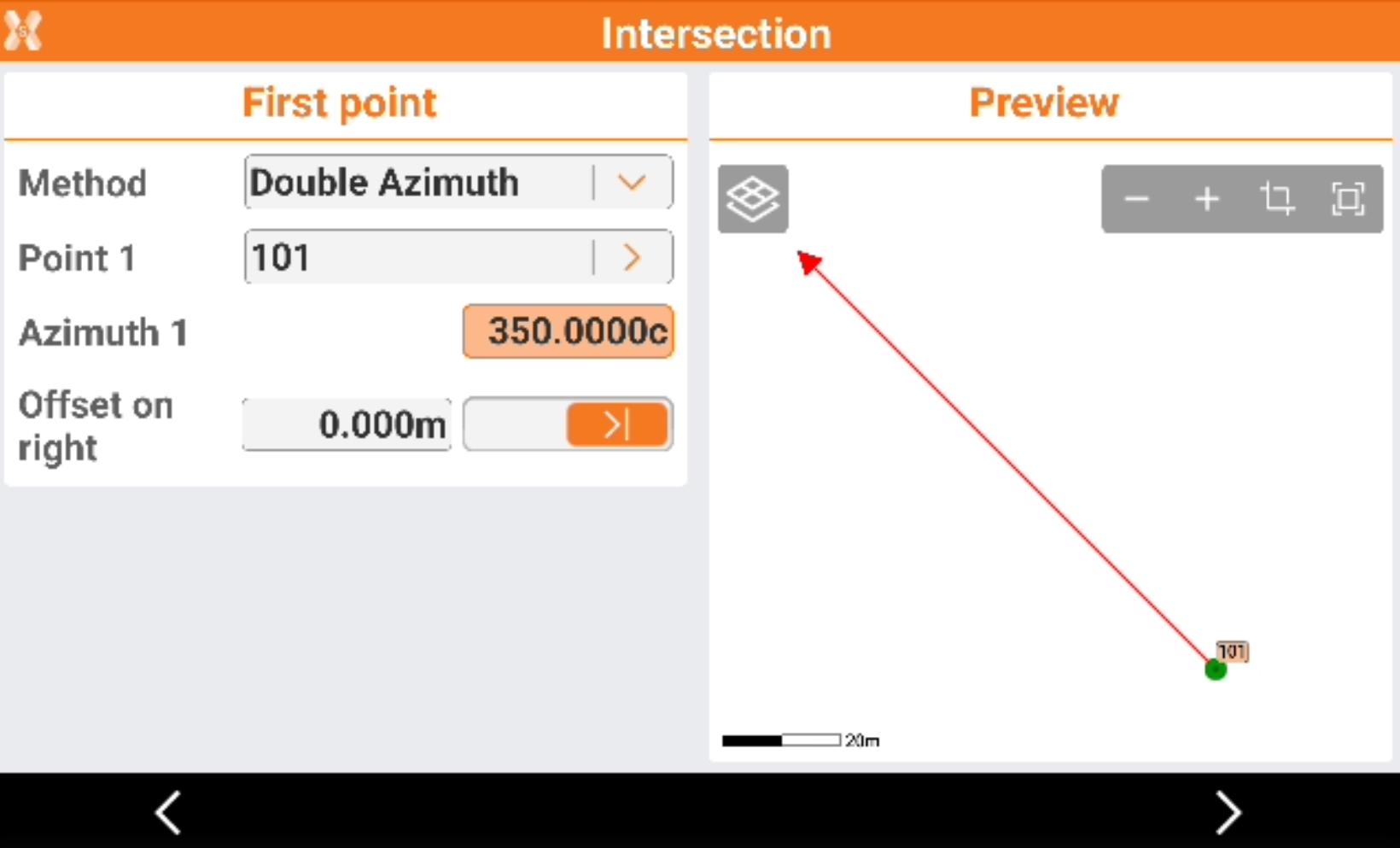

Select the first point and azimuth and offset from the first point.

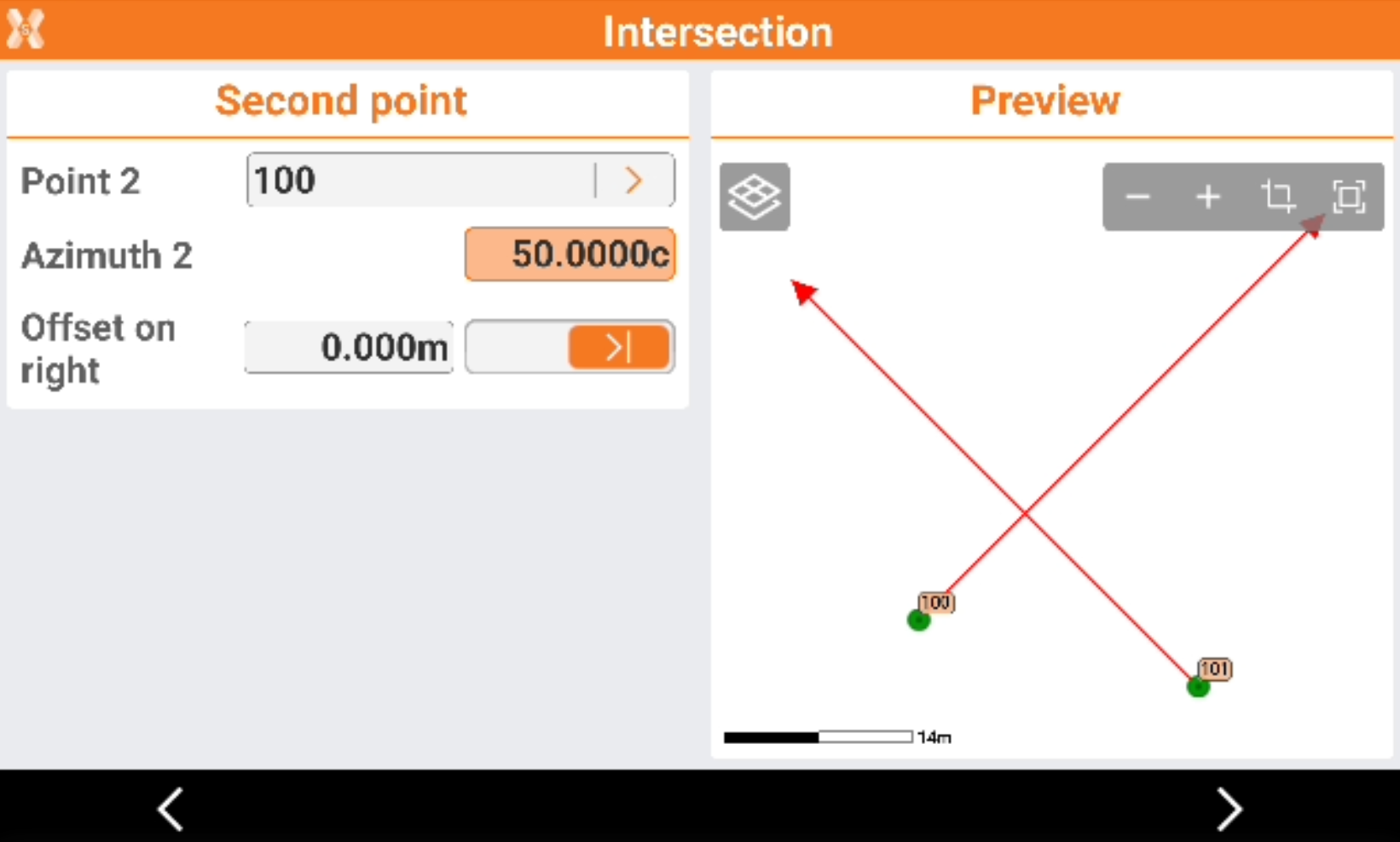

Select the second point and azimuth and offset from the second point.

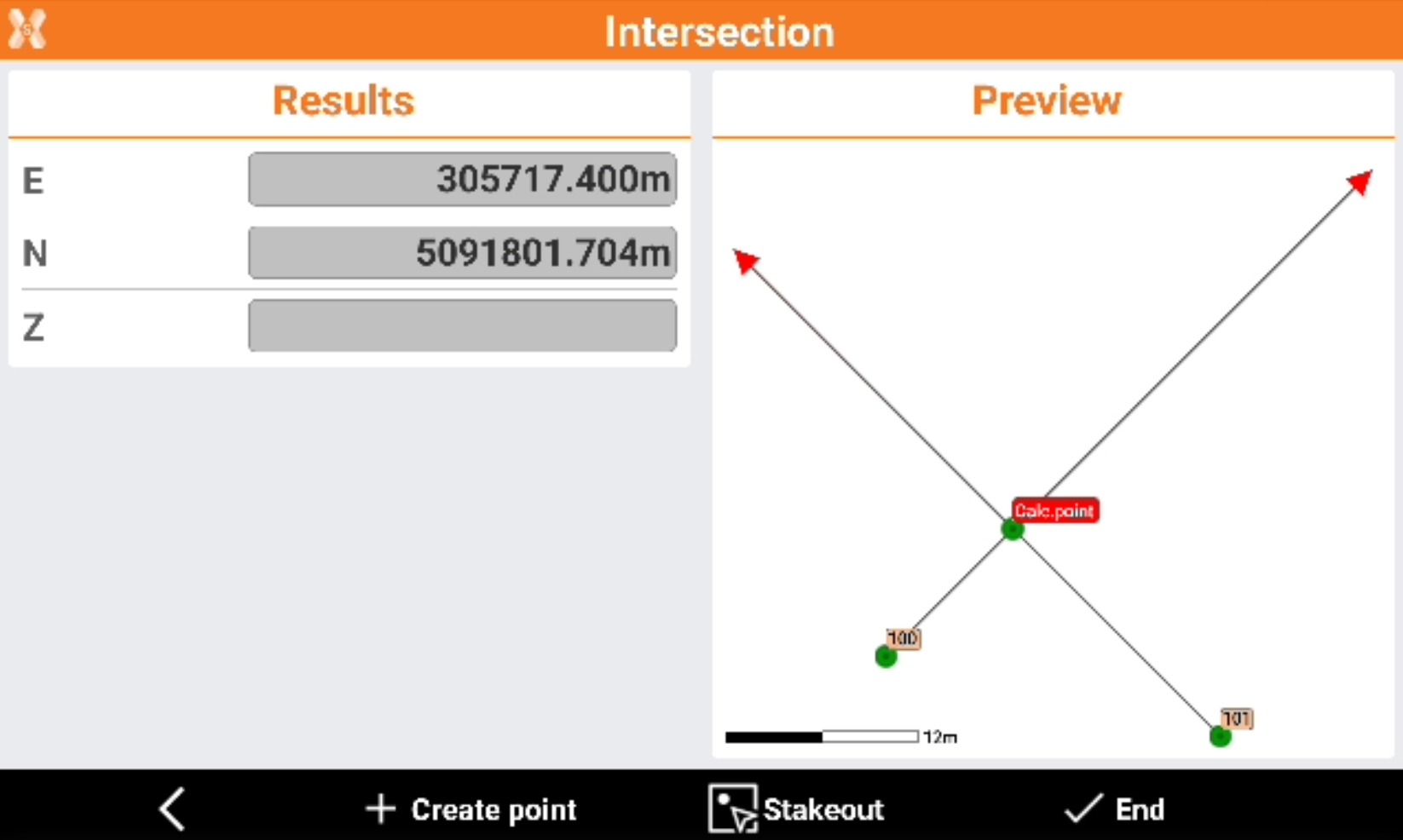

The software shows the calculated point.
Click Create point to activate the creation of the calculated point.
Click Stakeout to activate the stakeout procedure for the calculated point.
4 points
The intersection position is calculated on the intersection of two straight lines and four reference points.

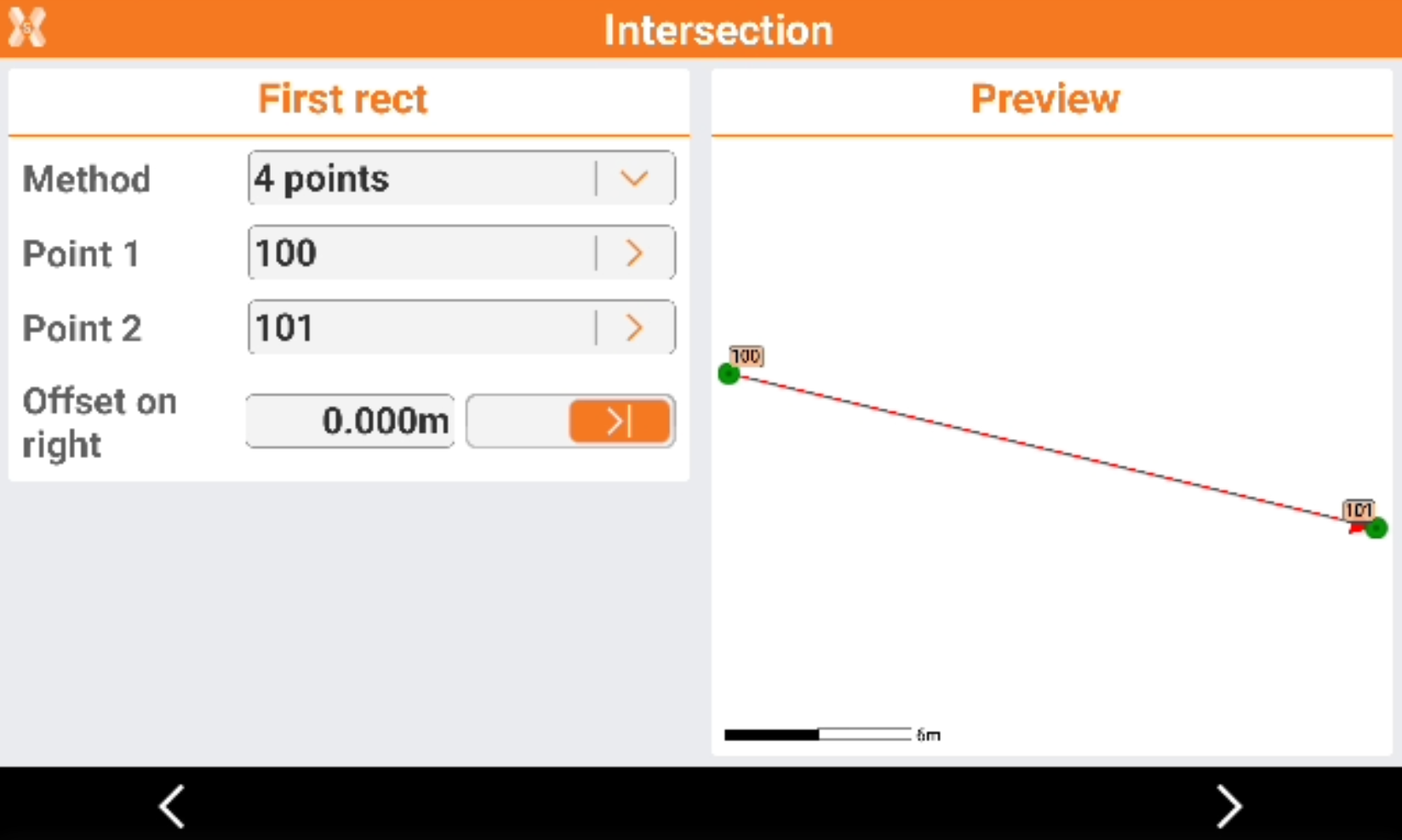

Select the first two reference points. The line connecting the two points is visualized. You can enter an offset to the calculate line.

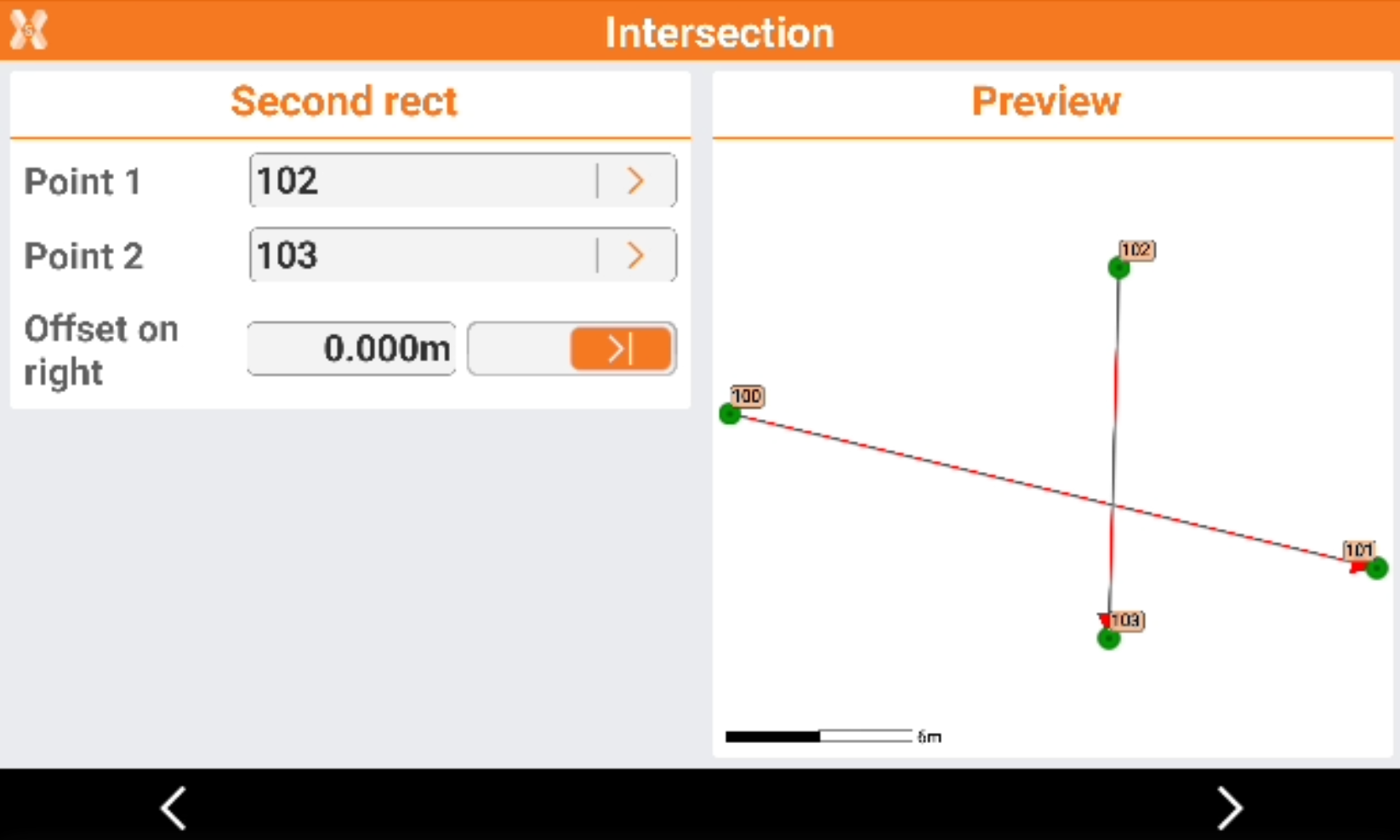

Select the others two reference points. The line connecting the two points is visualized. You can enter an offset to the calculate line.

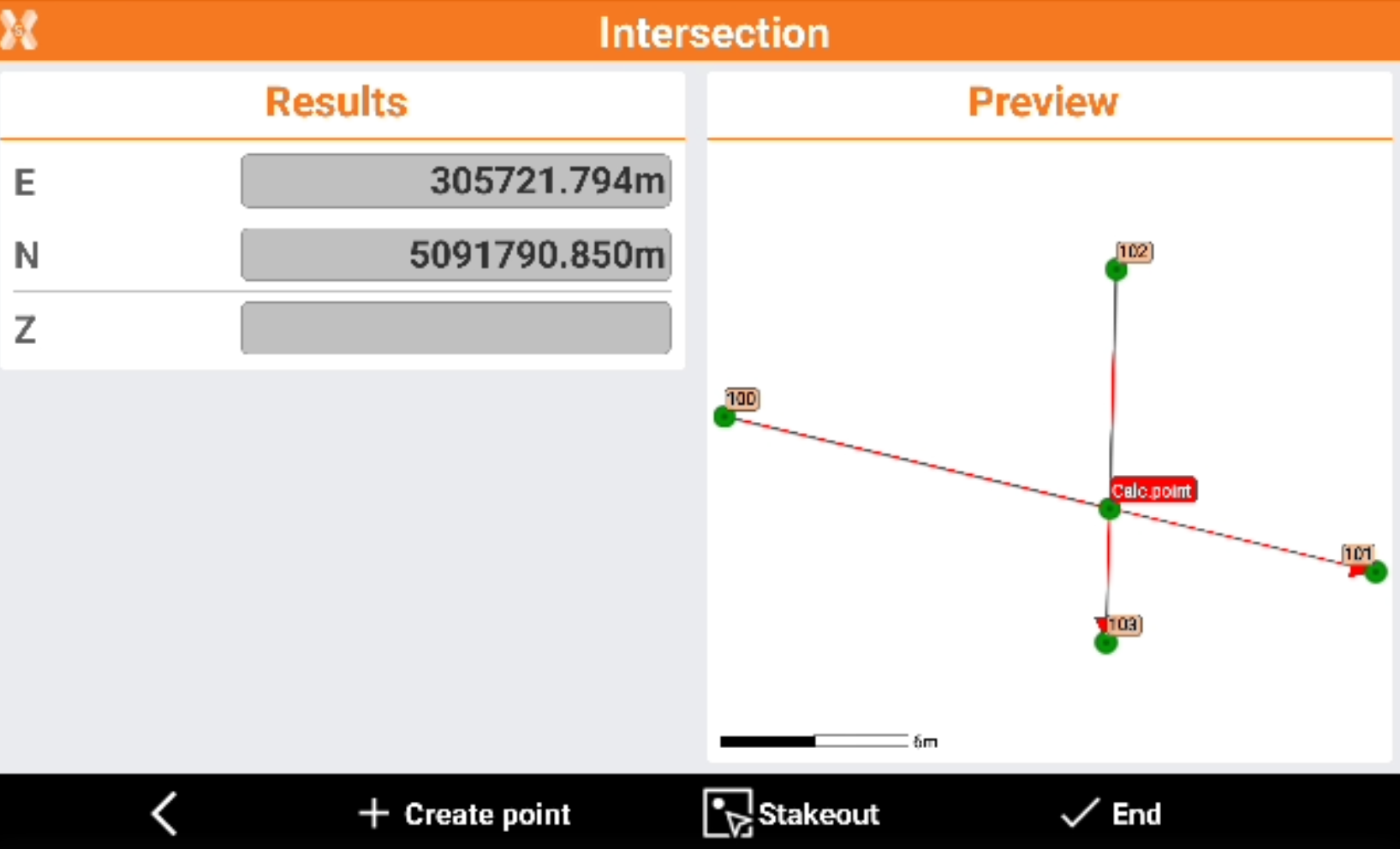

The software shows the calculated point.
Click Create point to activate the creation of the calculated point.
Click Stakeout to activate the stakeout procedure for the calculated point.
