Inverse

|

• The inverse function allows to quickly calculate the distance and other information between two points.

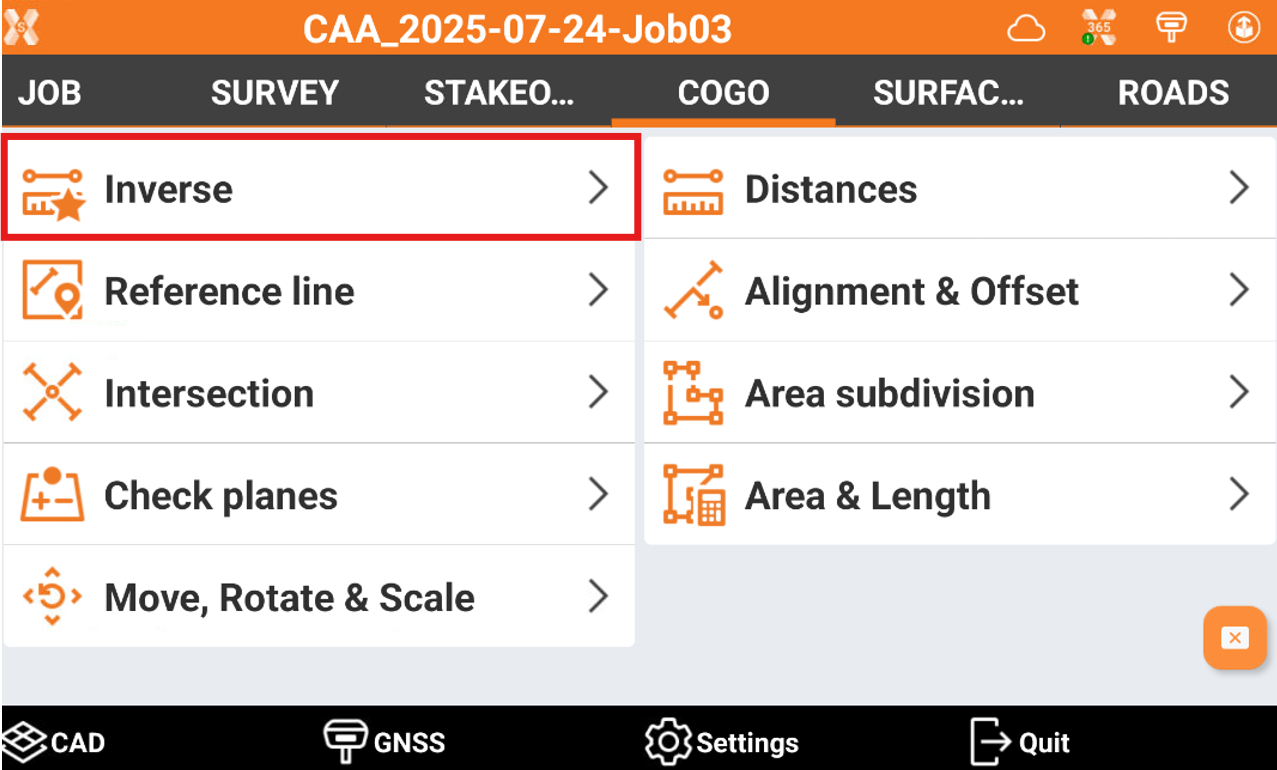

• Click COGO.

• Click Inverse.

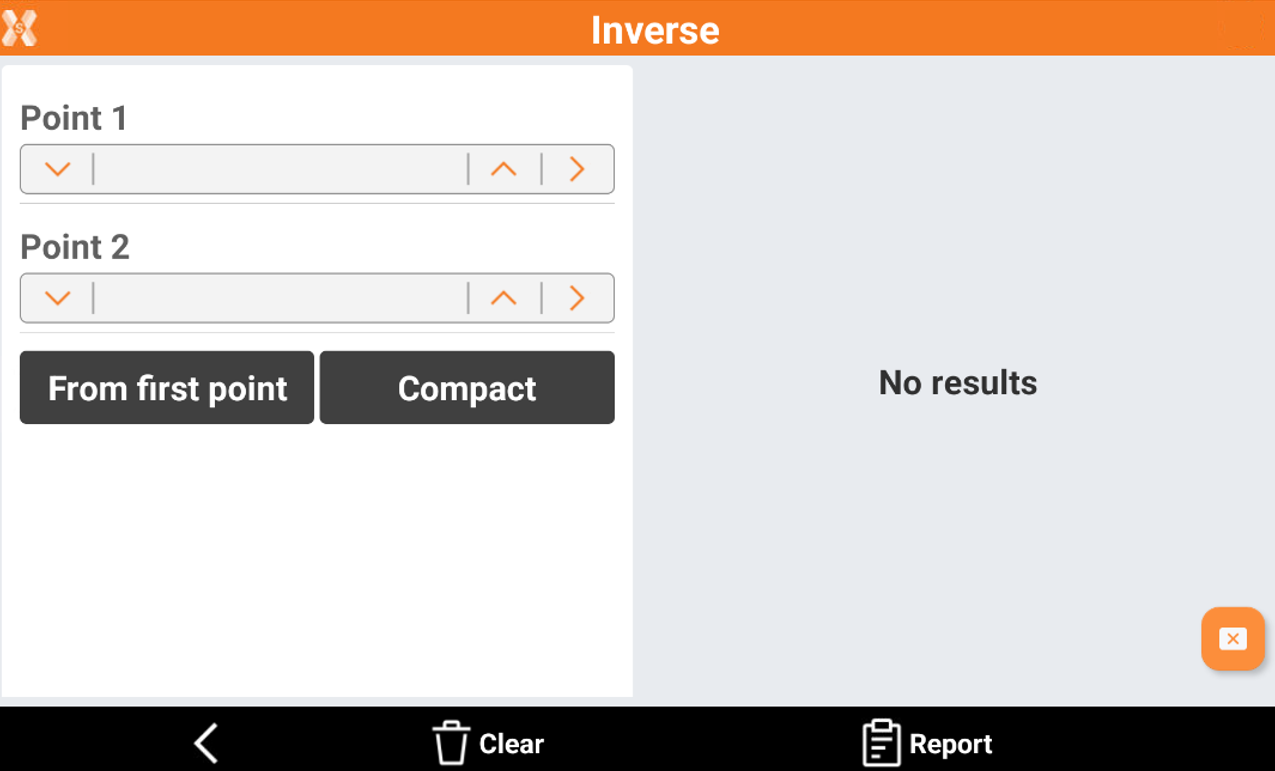

• In the next page it is required to select Point 1 as starting point and Point 2 as ending point.



• Click to select the point from CAD, from the list of points in the job, or to measure a new point with the current instrument.

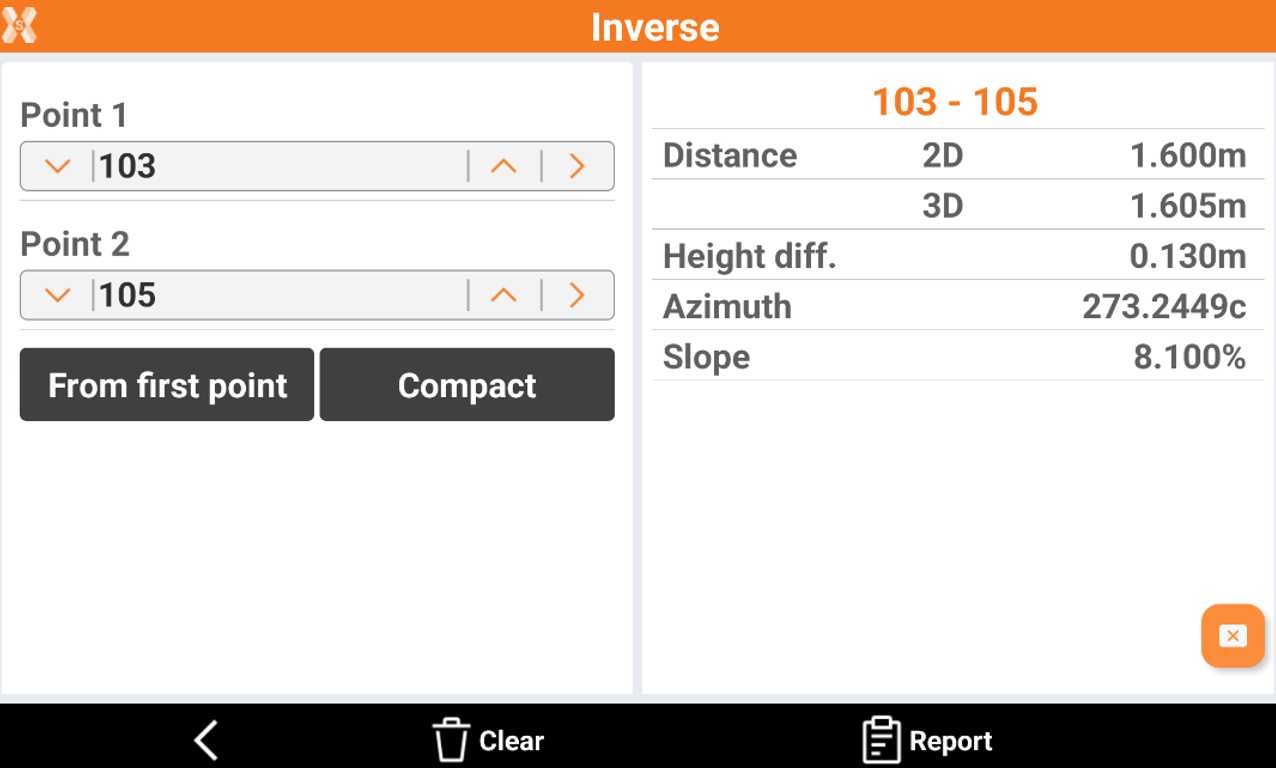

• After the two points have been measured or selected, the result is visible in the right panel.

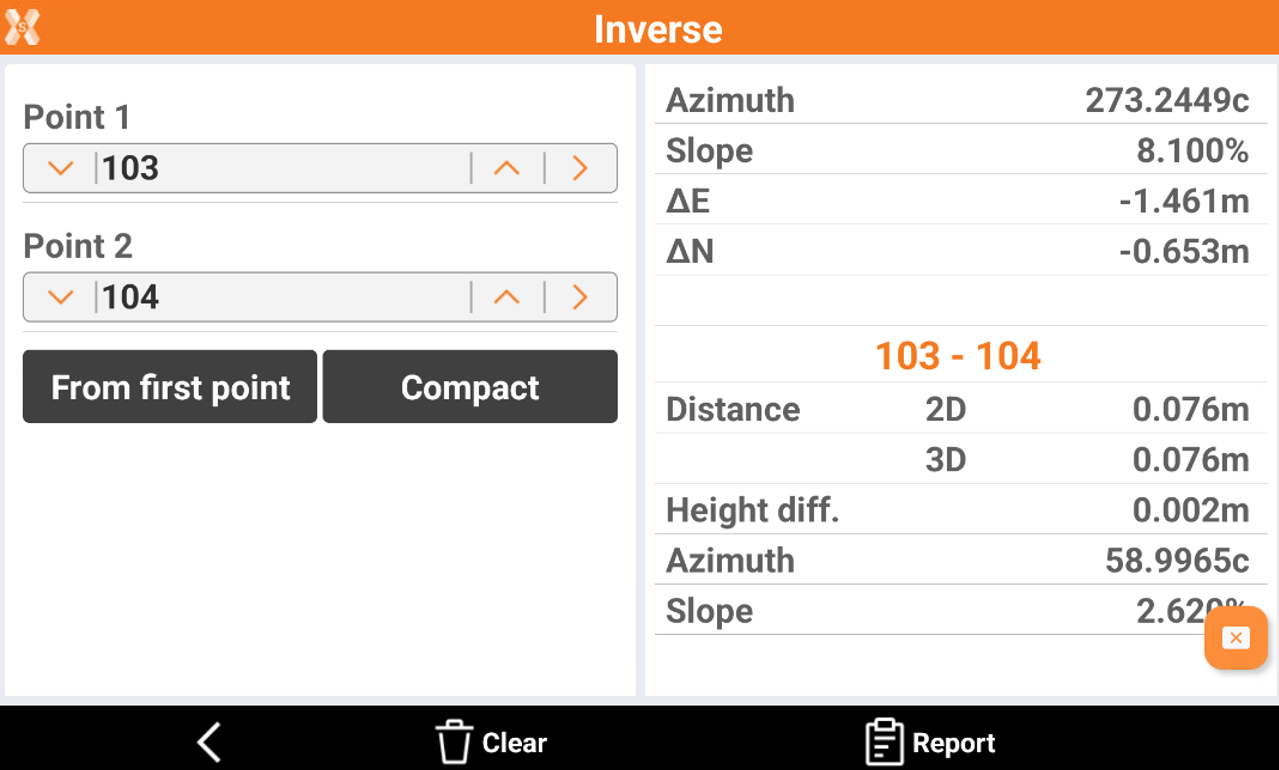

• It is possible to measure additional distances selecting different points, or clicking and to decrease or increase the point number available in the topographic point list.



• Click Compact or Extended to show reduced or full information in the right panel.

• Click Report to export the result in ASCII, Excel CSV, Excel XML, PDF or HTML format.

• Click Clear to clear the result panel.
