Load a LandXML

|

The operation loads points, drawing, surfaces and road alignments from the selected file.

• To load a LandXML file as external reference click External references.

• Click Add.

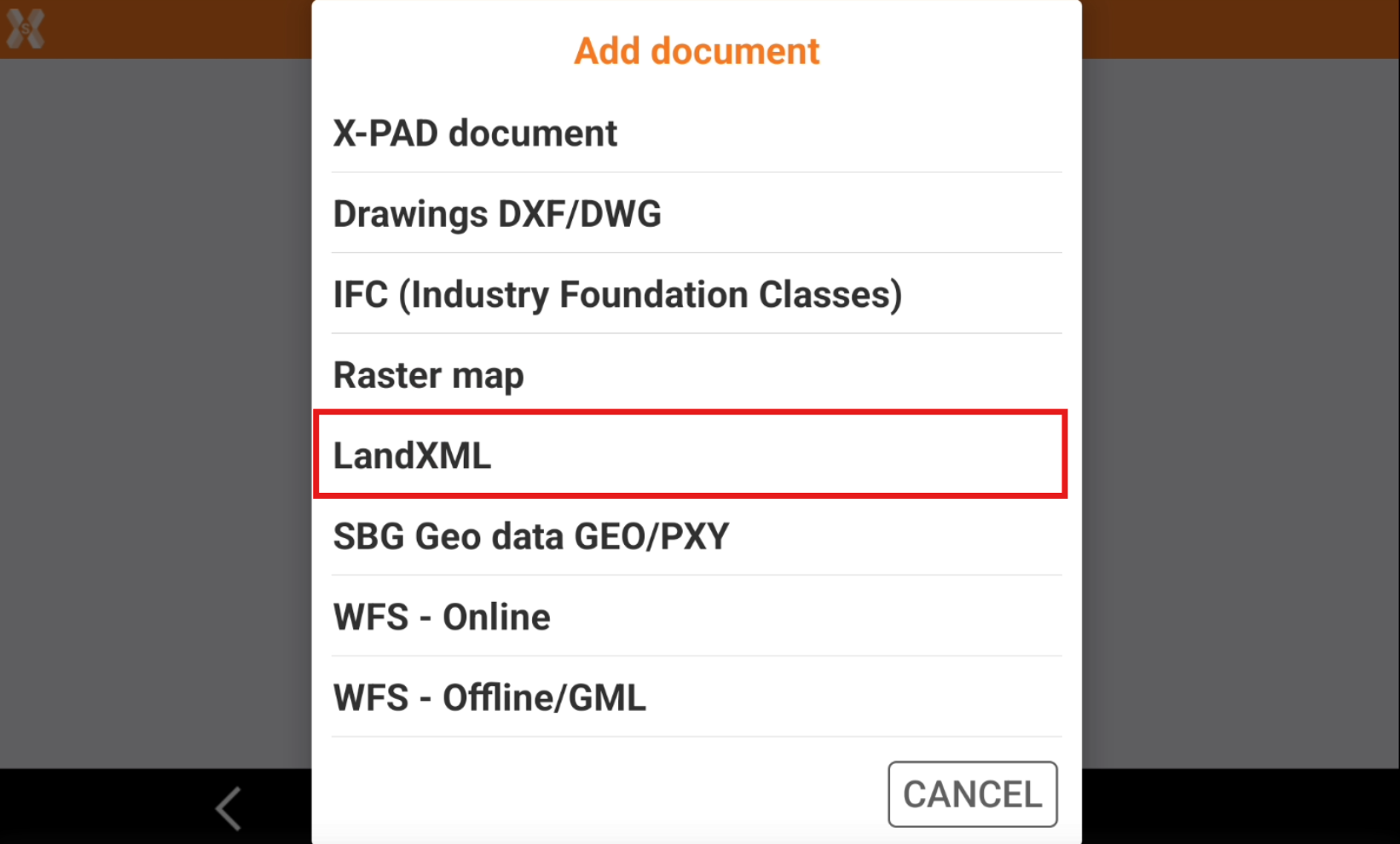

• Select LandXML.



• Select the file from the internal memory or from the cloud.

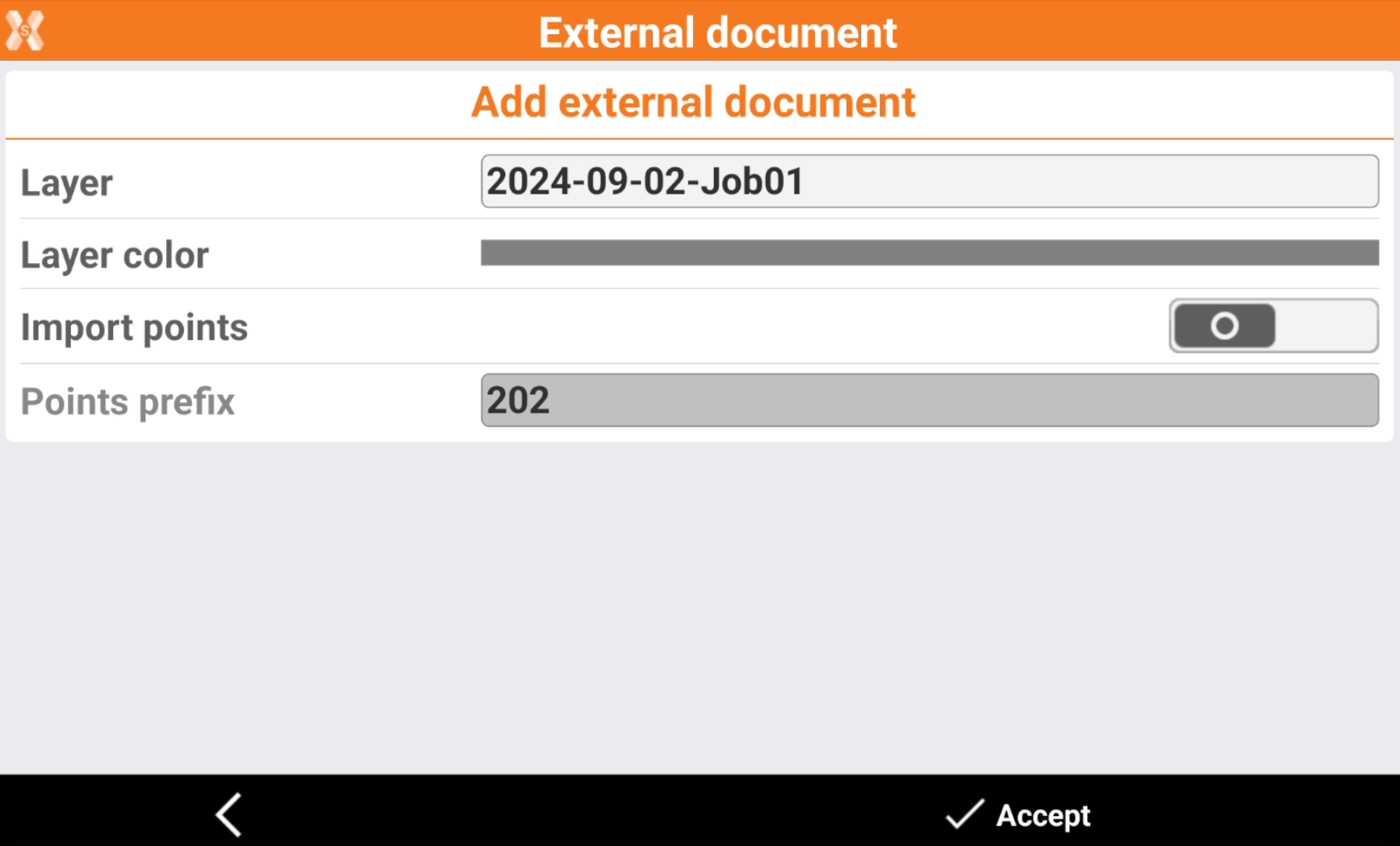

• Enter the options.



  • Layer: the layer where imported data is loaded in the job.

  • Layer color: the color of the layer.

  • Import points: enables/disables the importing of points from the selected file.

  • Points prefix: the prefix to be applied to imported points.

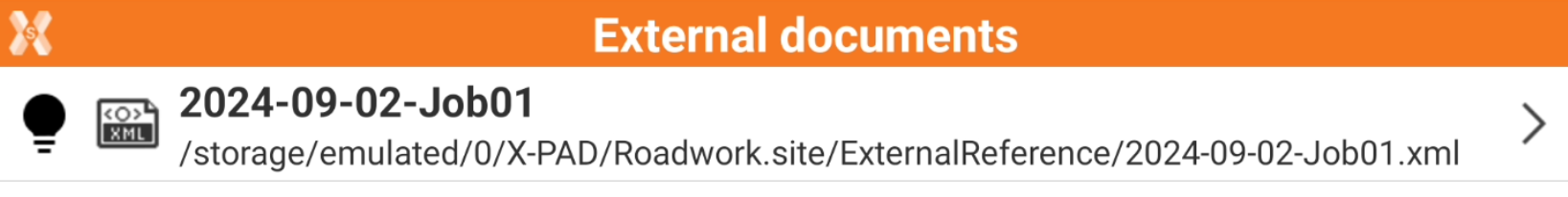

• The reference job is loaded.
