Load a raster map

|

• Raster maps can be loaded to be used in background.

• Supported formats are:

  • JPG

  • BMP

  • PNG

  • TIFF

• To load a raster map click External references.

• Click Add.

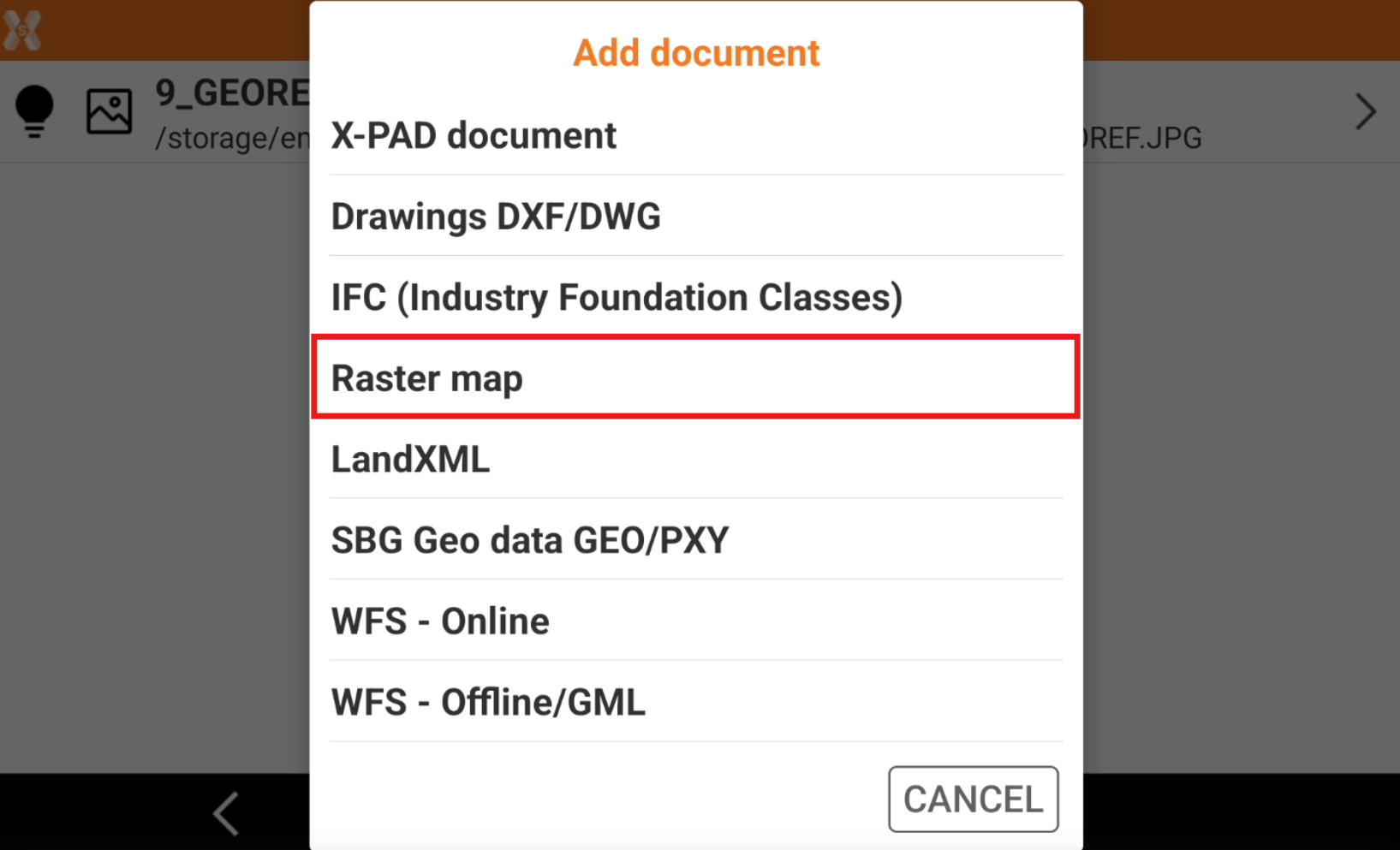

• Select Raster map.



• Select the file from the internal memory or from the cloud.

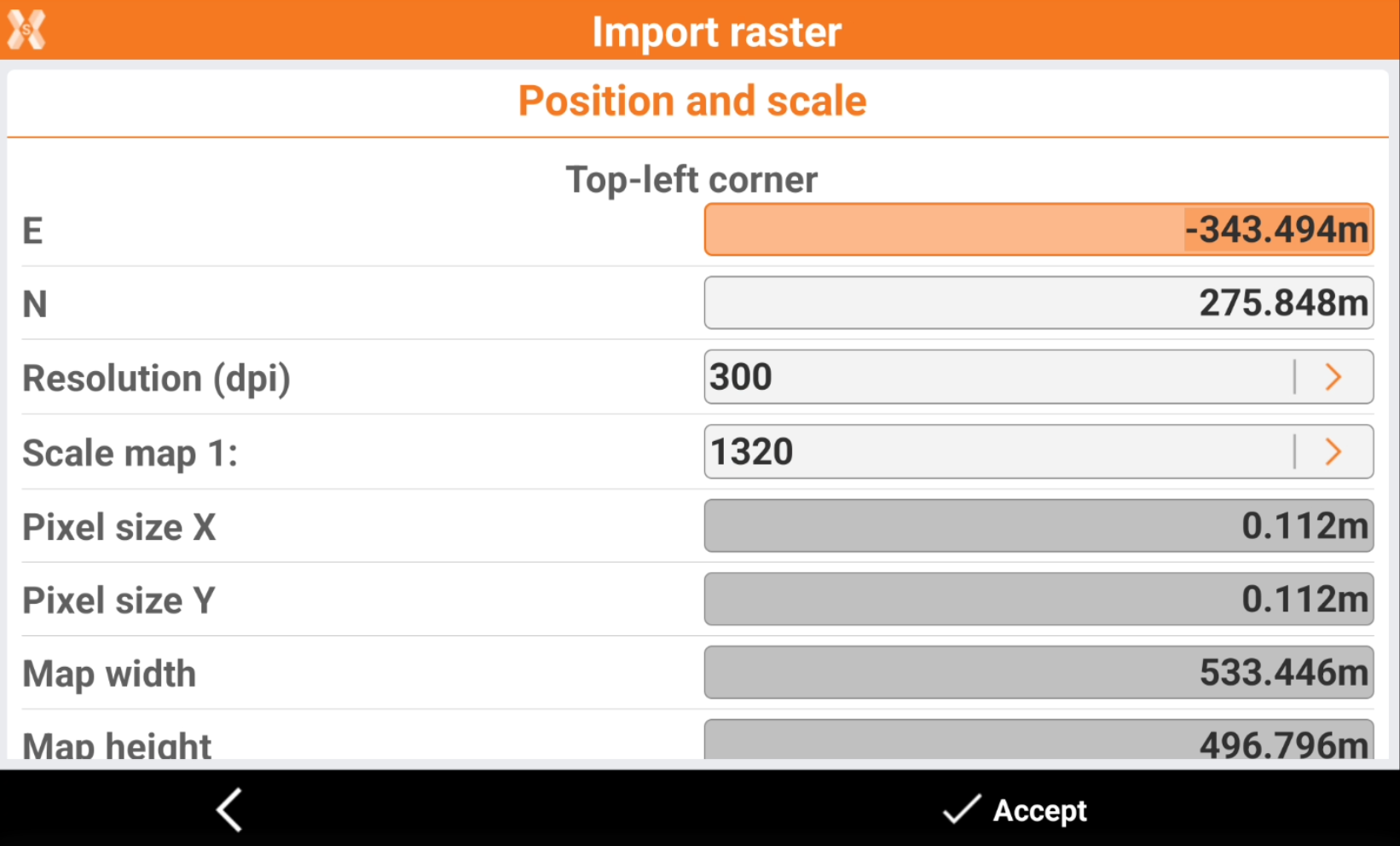

• Define position and scale.



  • Top-left corner: coordinates of the top-left corner in which to position the image

  • Resolution (dpi): the image resolution in dpi.

  • Scale map 1: scale factor to assign to the map for correct representation.

If the file of the image comes with the World file, the positioning parameters allowing to visualize the image in the correct position and dimension are just visualized.

• Click Accept to load the file.

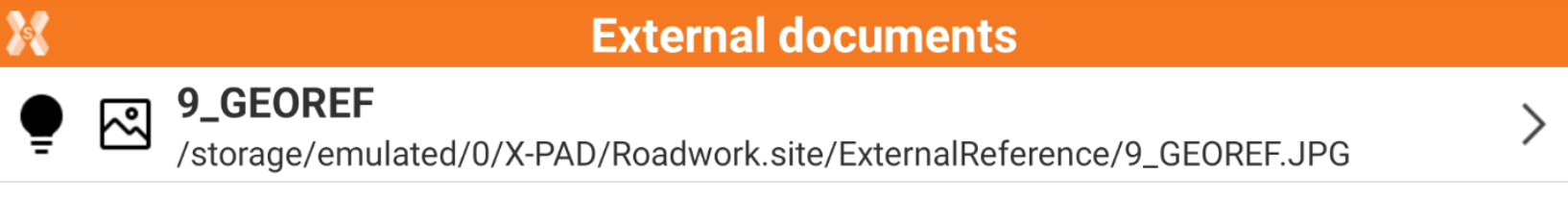

• The reference job is loaded.
