Move points to reference points table

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png | X-PAD Ultimate GO 2.png

  • It is possible to transfer topographic points from the Points list to the Reference points list.

  • Click Job.

  • Click Points/Measurements/Codes.

  • Open the Points tab.

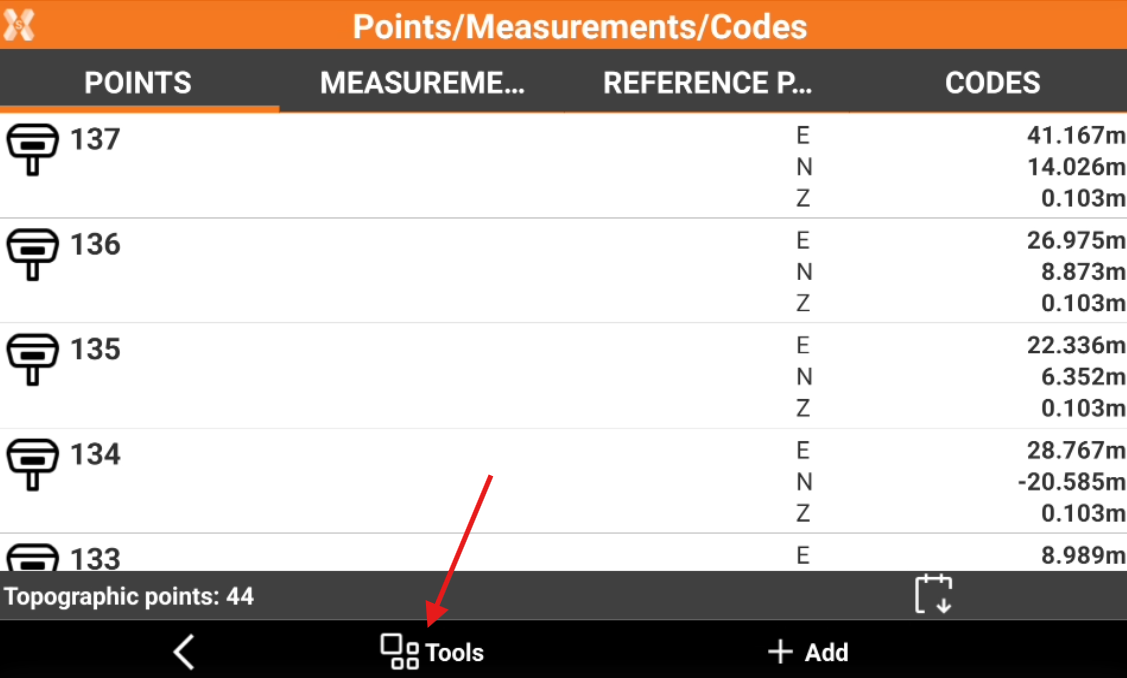

  • Click Tools to open the list of available tools.

  • Click Save/Load.

  • Select Transfer points to reference points.

  • Check the points from the list, or click Tools to use Selection rules or select/deselect all the points.

  • Click Edit.

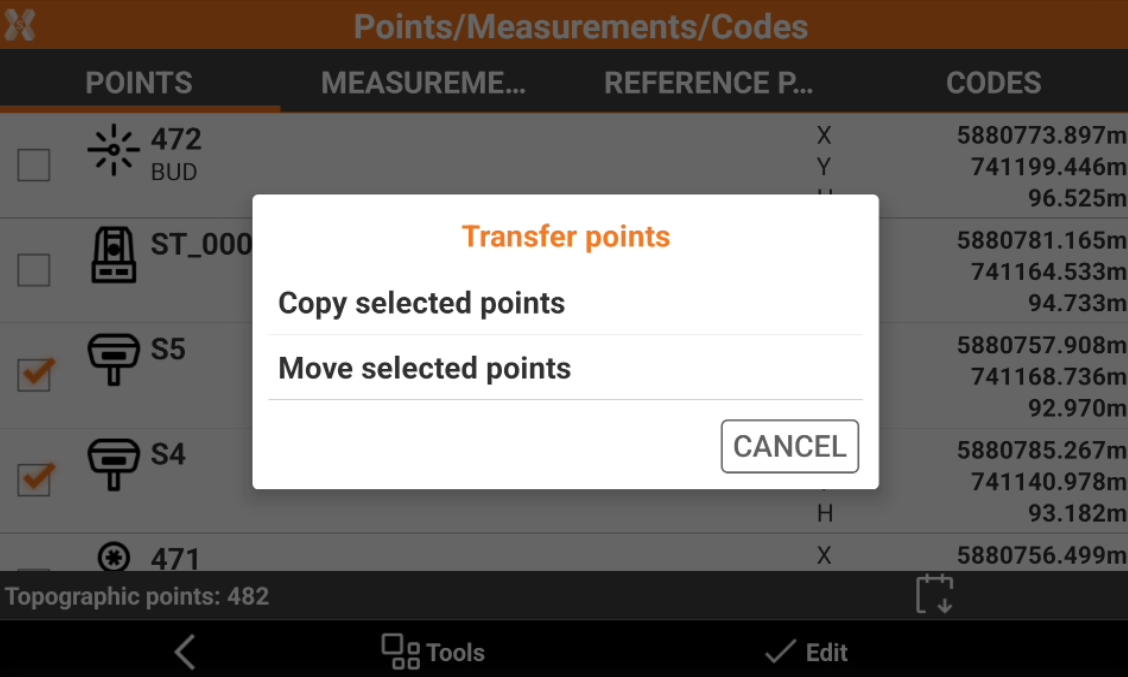

  • Select if copy or move the selected points.

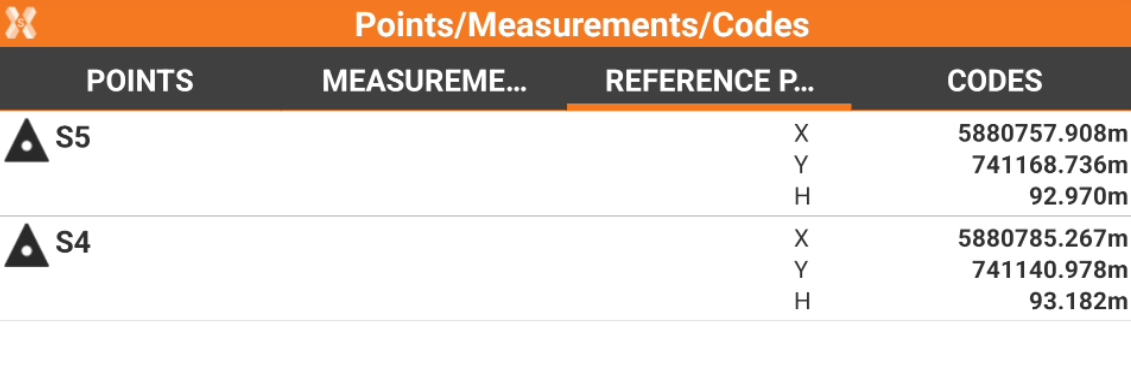

  • The points are now available in the Reference Points table.
