Profile

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png | X-PAD Ultimate GO 2.png

  • The Profile command displays the longitudinal profile of the selected polyline including additional information about the polyline.

  • Select Info.

  • Select Profile.

  • Select a polyline in CAD.

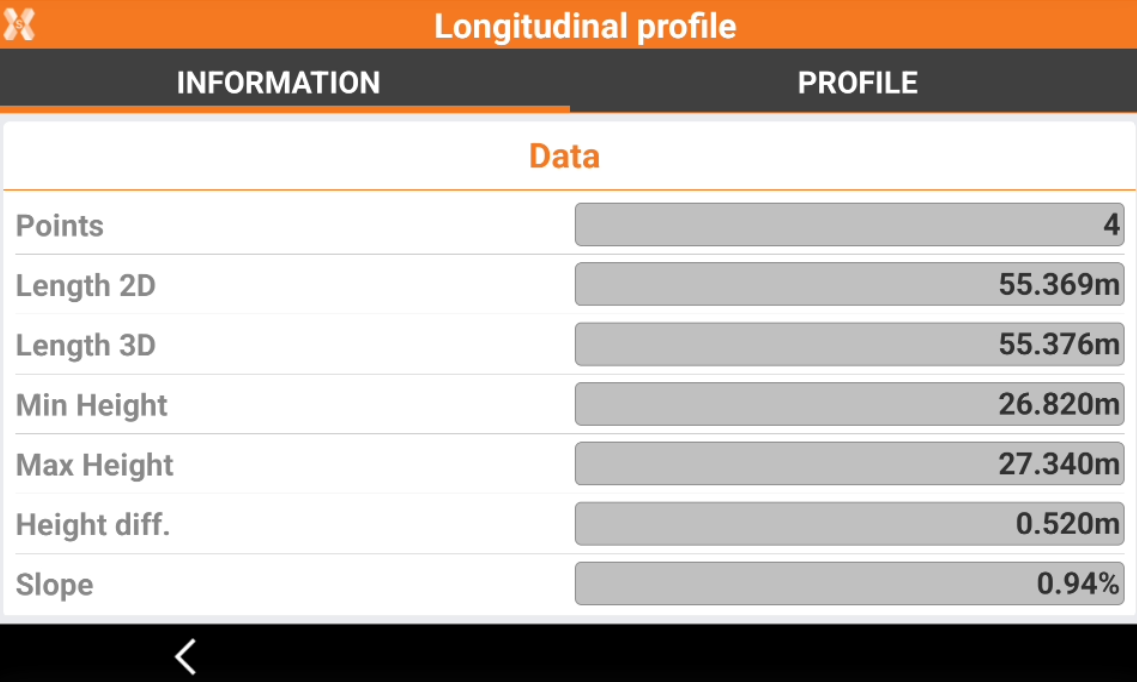

  • The Information page displays the information on the polyline.

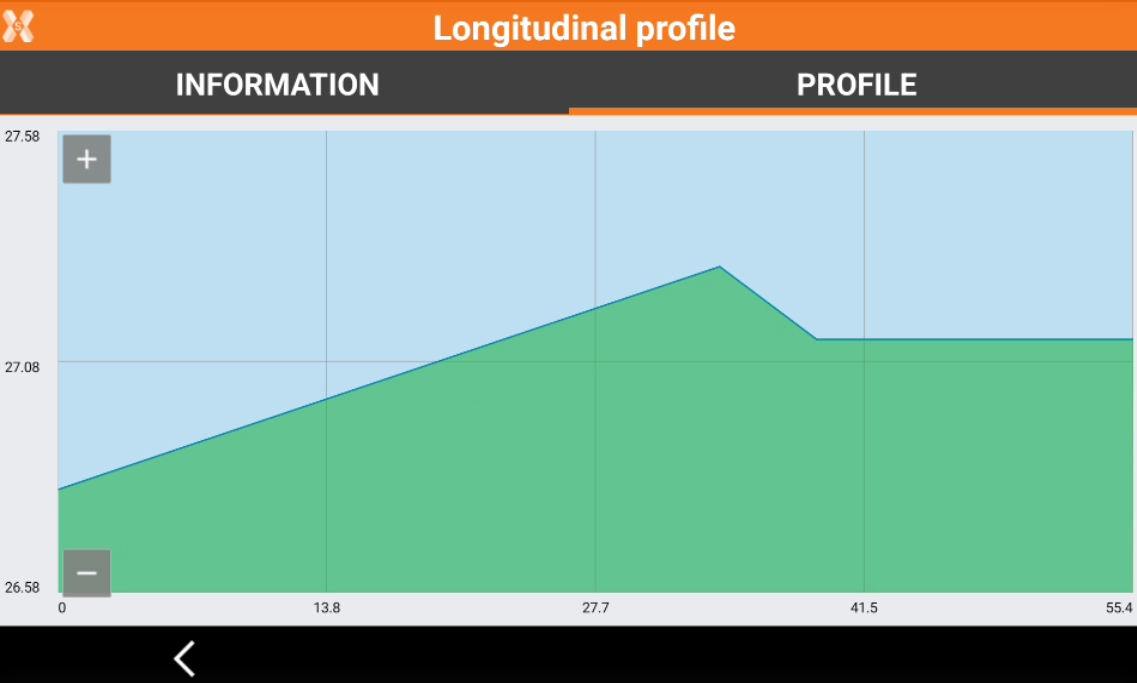

  • The Profile page displays the longitudinal profile of the selected polyline.
