Report

|

• The Report function allows to generate a complete report from the selected job.

It is possible to define the header and logo in the Report settings.

It is available a CAD report where to export a report of the measured entities accessible in CAD.

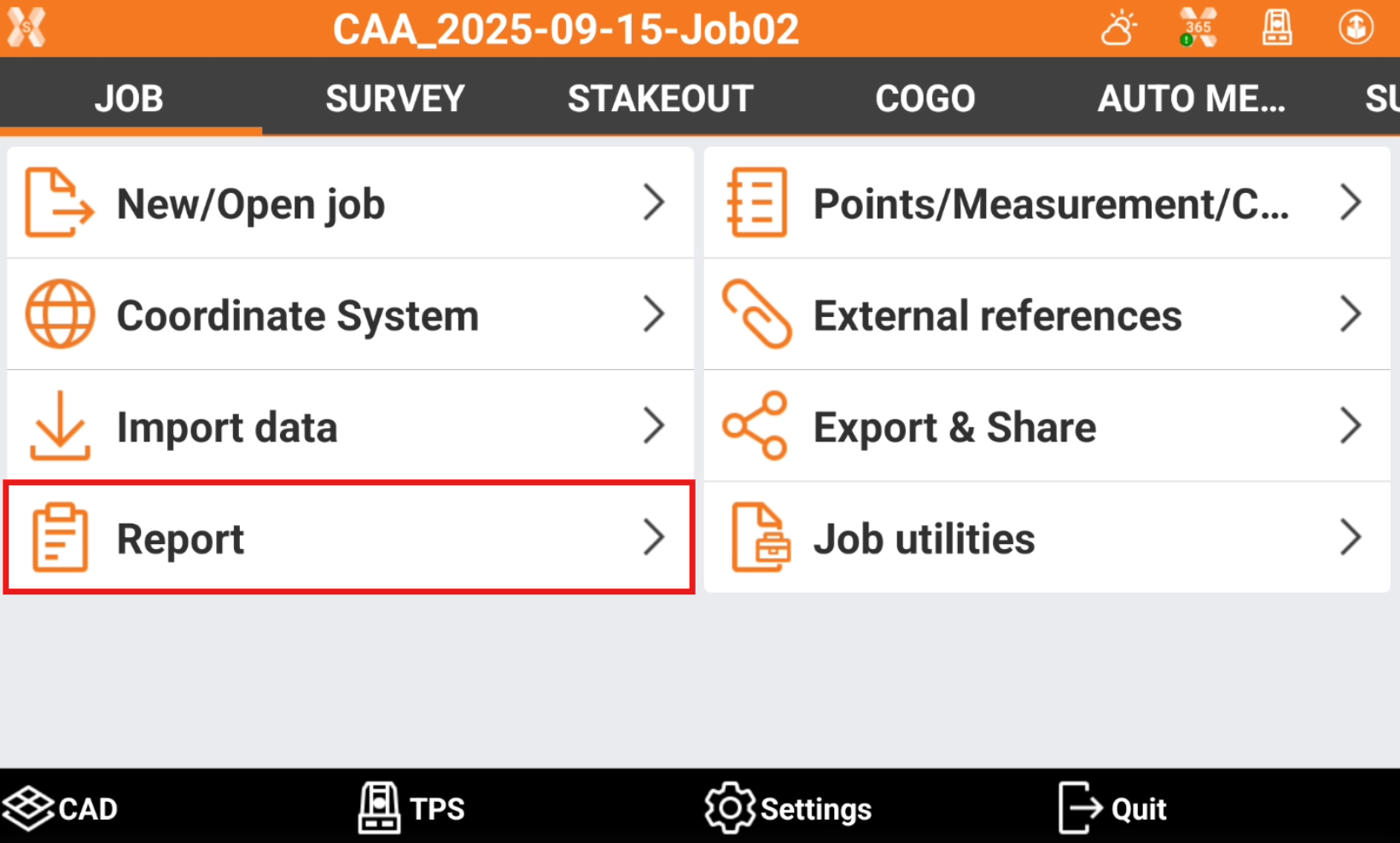

• Click Job.

• Click Report.

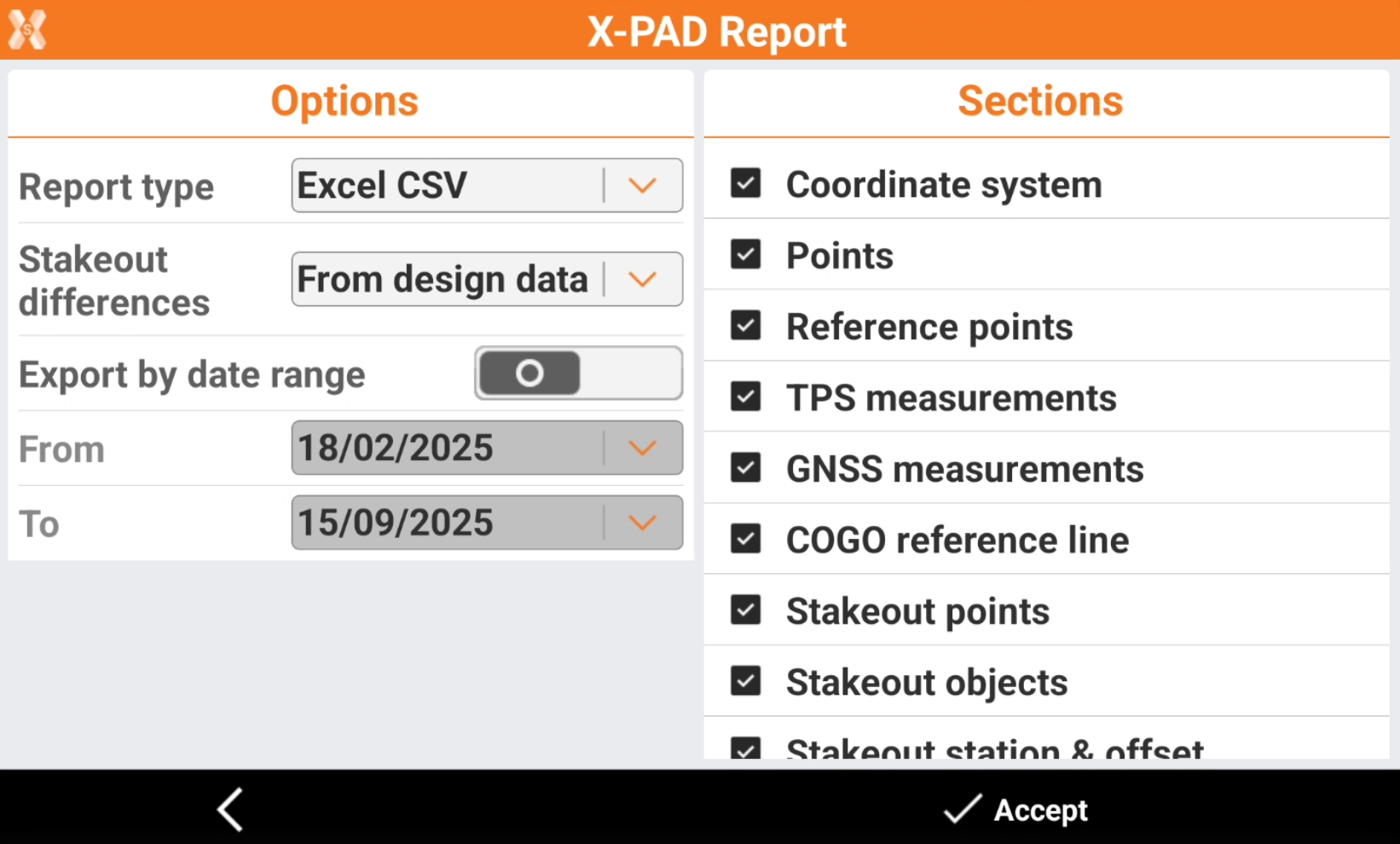

• On the left panel select the report options.



  • Report Type: to select the type of report.

    • ASCII format: the report is exported as ASCII text file.

    • Excel CSV: the report is exported as formatted CSV file for Excel.

    • Excel XML: the report is exported as formatted XML for Excel.

    • PDF document: the report is exported as PDF file.

    • HTML format: the report is exported in HTML format.

  • Stakeout differences: allows to select how to specify the differences in stakeout.

    • From design data: the difference is from the design data.

    • To design data: the difference is to the design data.

  • Export by date range: allows to select to export measurements only in a specific date range.

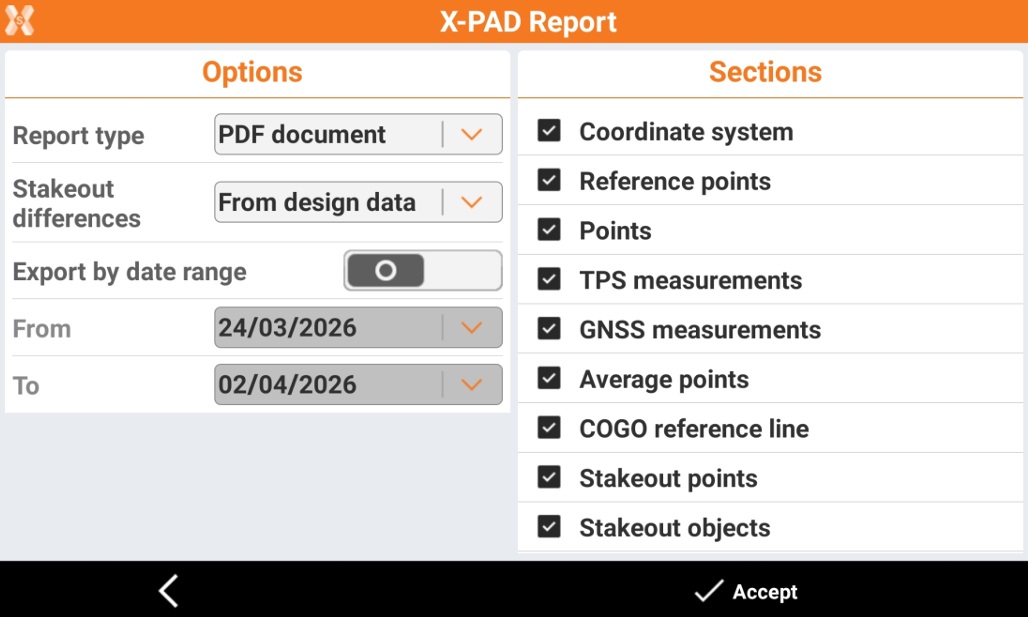

• On the right panel select the sections to export.

  • Coordinate system: the information regarding the selected coordinate system are exported in the report.

  • Points: the report includes the list of topographic points.

  • Reference points: the report includes the list of reference points.

  • TPS measurements: the report includes measurements done with total station.

  • GNSS measurements: the report includes measurements done with GNSS reciever.

  • COGO reference line: exports in teh report the measurements done with Reference line application.

  • Stakeout points: exports in the report the stakeout report for the measurements done with Stakeout point function.

  • Stakeout objects: exports in the report the stakeout report for the measurements done with Stakeout objects function.

  • Stakeout station & offset: exports in the report the stakeout report for the measurements done with Stakeout station & offset function.

  • Stakeout sideslopes: exports in the report the stakeout report for the measurements done with Stakeout sideslopes function.

  • Stakeout surfaces: exports in the report the stakeout report for the measurements done with Stakeout surfaces function.

  • Stakeout axis: exports in the report the stakeout report for the measurements done in the road module.

• Click Accept to save the report.

• Select where to save the file.

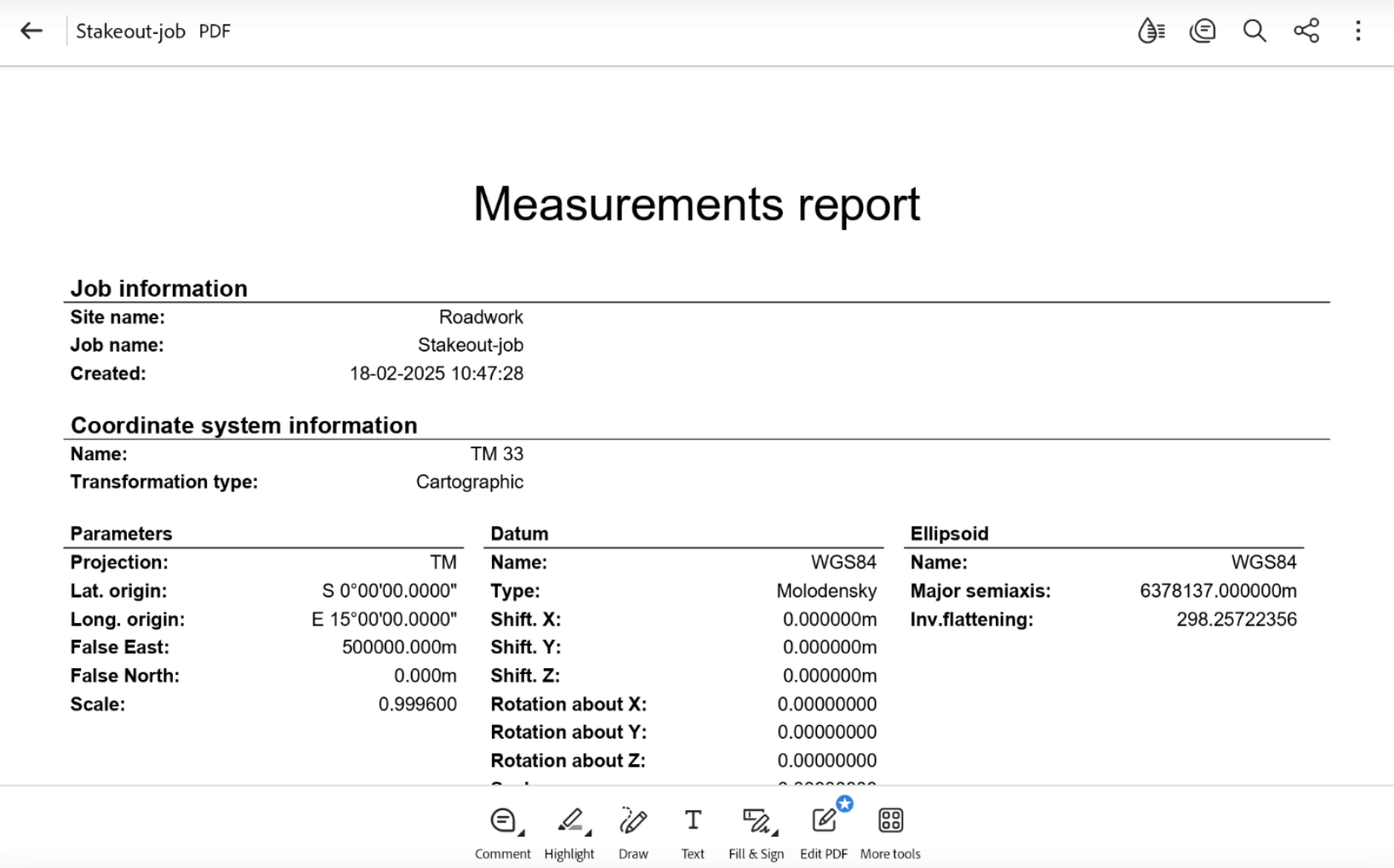

• The Measurements report is exported.



Video tutorials
Job report How to export a customized job report with information on job configuration, points and measurements.
